The Antonov An-2 (nicknamed "Annushka" or "Annie," with the NATO reporting name "Colt") is a
single-engine biplane utility and agricultural aircraft designed in the USSR in 1946. Besides being used as
an agricultural and light-utility transport, it has been used as a parachute-drop aircraft and many other
tasks suited to such a large, slow-flying biplane; its slow flight ability made it suited for short,
unimproved fields; and some variants were built for cold weather and other extreme environments.
The Guinness Book of World Records states that the 45-year production run for the An-2 was for a
time the longest ever for any aircraft - exceeded only recently by the Lockheed C-130 Hercules.
By 1960 the USSR had produced over 5,000 of this aircraft. Since 1960, most An-2s were built at the
WSK aerospace factory in the city of Mielec in southeastern Poland - with over 13,000 made there before
full production ended in 1991. Limited production from parts" stock and maintenance coverage continued
until 2001, when four were produced for Vietnam. China is also licensed to build a version of the An-2
known as the Shijiazhuang Y-5.

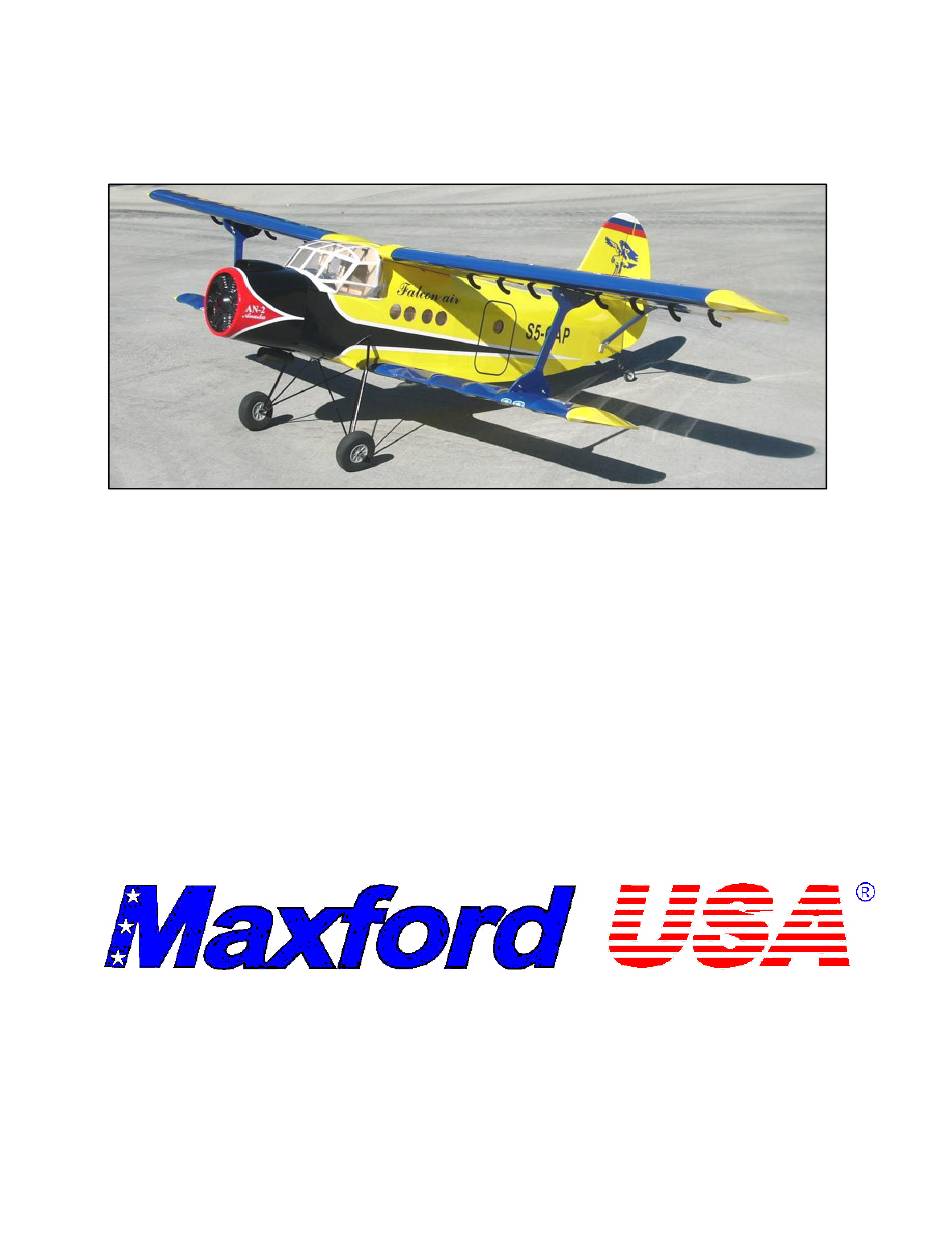

The RC version we designed is approximately 1/11 scale, with a 62" wingspan. It gives customers the
choice of electric or glow-power systems, and, like the original, this ARF radio-controlled An-2 also
includes fully functional flaps and is available in both land and water-based versions.
We invite you to enjoy the pride of ownership and the joy of flying
this beautiful model of the Antonov An-2 Russian biplane.
TABLE OF CONTENTS
I. Safety Precautions & Assembly Tips .............. 2
III. Parts List ........................................................... 3
IV. Special Features ............................................... 4
www.modellmarkt24.ch;
www.modellmarkt24.ch;
A
n
t
o
A
n
t
o
A
L
E
A
R
F
R
A
D
I
O
A
L
E
A
R
F
R
A
D
I
O
T
R
U
C
T
T
R
U
C
T
n
o
v
A
n
o
v
A
-
C
O
N
T
R
O
L
L
E
D
-
C
O
N
T
R
O
L
L
E
D
I
O
N
M
I
O
N
M
V. Specifications ....................................... 4
VI. Assembly Instructions .......................... 4
VII. Transport ............................................ 14
VIII. Setup & Adjustments ......................... 14
Page 1 of 16
www.modellmarkt24.de
www.modellmarkt24.de
n
-
2
n
-
2
M
O
D
E
L
A
I
R
P
L
M
O
D
E
L
A
I
R
P
L
A
N
U
A
A
N
U
A
S140305 Copyright 2013
/
A
N
E
A
N
E
L
L
Advertisement
Table of Contents
Related Manuals for Maxford Antonov An-2
Summary of Contents for Maxford Antonov An-2
-
Page 1: Table Of Contents
The Antonov An-2 (nicknamed “Annushka” or “Annie,” with the NATO reporting name “Colt”) is a single-engine biplane utility and agricultural aircraft designed in the USSR in 1946. Besides being used as an agricultural and light-utility transport, it has been used as a parachute-drop aircraft and many other tasks suited to such a large, slow-flying biplane;... -
Page 2: Safety Precautions & Assembly Tips
Because of its performance capabilities, this product, if not assembled and operated correctly, could cause injury to you or spectators and damage to property. Maxford USA provides you with a high-quality, thoroughly tested model airplane kit with assembly instructions. However, the quality and capabilities of your finished model airplane depend on how you assemble it, and your safety depends on how you use and fly it. -
Page 3: Warranty, Liability Waiver & Return Policy
Maxford USA from all current or future liability for any personal injury, property damage, or wrongful death, and if you (the buyer or user of this product) are involved in any claim or suit, you will not sue Maxford USA or any of its representatives. -
Page 4: Special Features
Maxlok key and the wing panels come apart easily. Maxlok is another unique design of Maxford USA. As well as Maxford USA‟s Max-Cowling, Maxlok will be used in our future designs. (For more about Maxford USA‟s Max- Cowling see http://www.maxfordusa.com/gm-gb-lnd-gear-m-2.aspx.) - Page 5 2. Motor or Glow Engine, Cowl and Dummy Engine – a. If you wish to enlarge the air inlet in the cowl‟s air scoop, we recommend you wear a dust mask and use a router bit and/or a sanding drum in a high- speed motor tool.
- Page 6 o. We also recommend you wear a dust mask to make any openings in the supplied fiberglass cowl for your engine‟s muffler, fuel-pressure line, fuel-filler line, and/or to access the carburetor‟s adjustment screws. p. Use blind nuts and bolts to attach your glow-engine mount to the firewall. q.
- Page 7 d. Press the upper ends of the struts firmly into the fuselage and use wheel collars to anchor the ends of the upper struts inside the fuselage. e. Use plastic brackets and 5/16-inch long wood screws to attach the main landing-gear struts at the center of the fuselage.
- Page 8 h. Visually compare the surface of the horizontal stabilizer to the lower wing. If the horizontal stabilizer appears to be at a different angle than the lower wing, reposition the horizontal stabilizer to align with the lower wing and use masking tape to hold the horizontal stabilizer in the correct position. Horizontal Stab.
- Page 9 12-inch servo extension to each servo. Mark the free end of each extension with an “A” for Aileron or “F” for Flaps. (NOTE: We recommend you install optional Maxford USA servo-extension safety clip at each extension- and Y-cable connection; for more servo-safety-clip information see http://www.maxfordusa.com/servoextensionsafetyclip.aspx.)
- Page 10 6. Upper Wing Assembly & Struts – a. Test-fit two 1 1/4-inch long carbon-fiber rods into the openings in the leading edge of the top wing‟s center section. Leaving approx. 1/2- to 3/4-inch (1.5 to 2 cm) of each of the carbon-fiber rods exposed, use epoxy to secure both rods into the center section.
- Page 11 f. With the ailerons and flaps connected to their Y-cables, continue sliding the wing panels toward the center section and carefully guide each wing panel‟s wooden tab into its opening in the center section. Secure the wing panels to the center section with their Maxlok keys.
- Page 12 n. Firmly secure (but do not over tighten) the top Fuselage’s lower edge wing‟s center-section attachment screws. o. Gently bend the metal tab(s) at each end of the horizontal stabilizer‟s struts to align with the bottom 3/4-inch of the horizontal stabilizer and the side of the fuseleage.
- Page 13 e. Install the wing wires between the left-hand side set of wing panels as shown and explained below: f. Using 5/16-inch long wood screws: Attach the END OF A SWIVEL OPPOSITE ITS as anchor point #4 (on the top of the bottom wing, 3/8 inch ATTACHED SPRING forward of the trailing edge and 1/8 inch out from the seam-line between the lower wing panels and their fairings);...
-
Page 14: Transport
VIII. SETUP & ADJUSTMENTS: 1. Center of gravity: For your initial flight we recommend that your Antonov An-2 balance when lifted at a point approx. 2 inches (5 cm) behind the leading edge of the top wing; when correctly balanced, it should hang level, neither nose up nor nose down. -
Page 15: Inst"S For Building The Float Version
5. Ensure the propeller is securely attached to your motor or engine and remains undamaged and correctly balanced. 6. As with all radio-controlled model airplanes, your Antonov An-2 must pass the radio-range ground check recommended by your radio‟s manufacturer or you may not fly safely. - Page 16 CG specified on page 14 in setup and adjustments item VIII – 1. 9. Before every takeoff, remind yourself to compensate for your float-plane‟s extra, redistributed weight and for the floats‟ additional drag. Congratulations on completing assembly of your new Antonov An-2. May you enjoy many Happy Landings! Reminder …...
