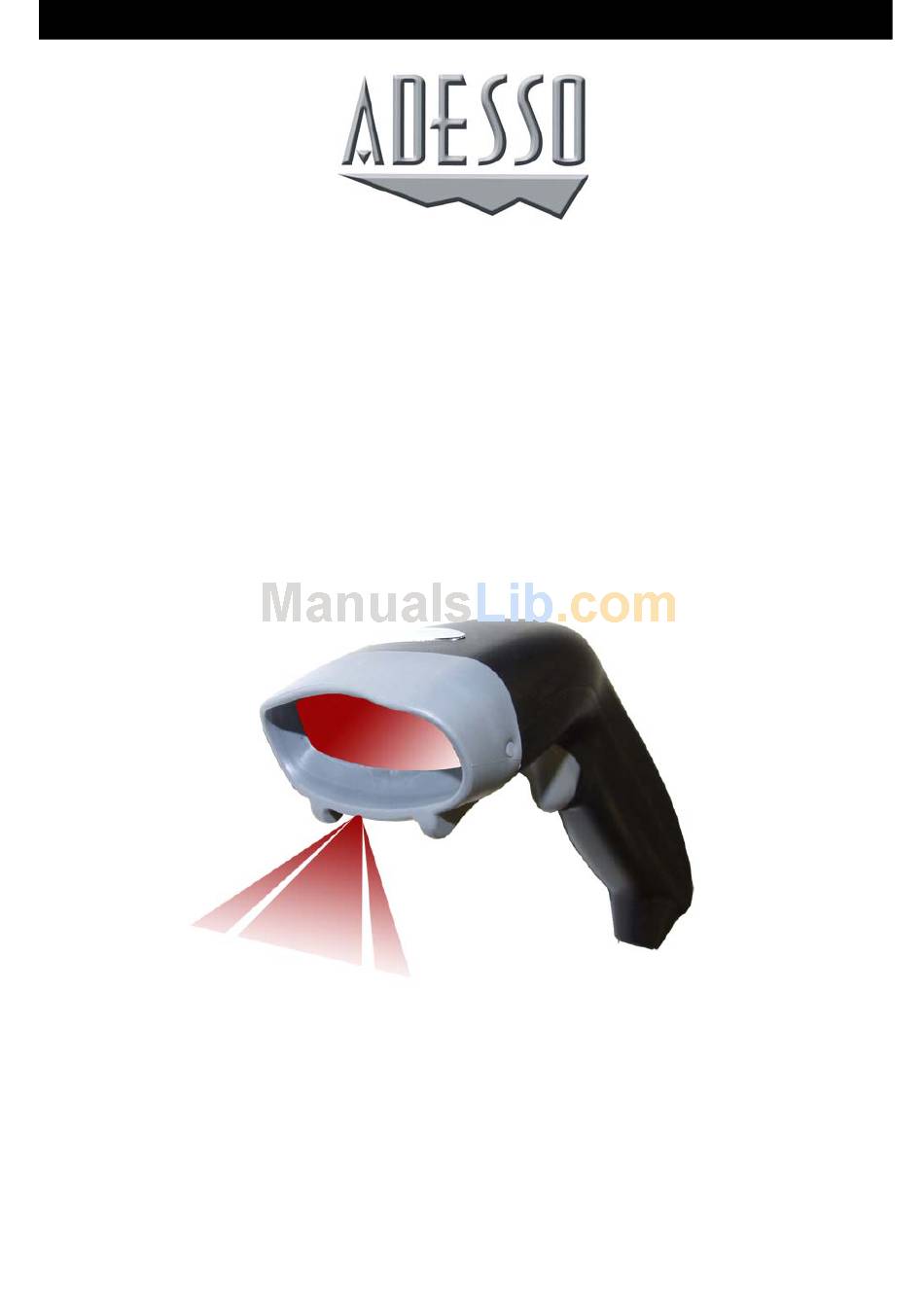

- Page 1 LASER BARCODE SCANNER USER'S GUIDE NUSCAN 3200 series...
-
Page 3: Table Of Contents
Table of Contents 1. Limited Warranty ... 1 2. Introduction ... 2 3. Contents ... 3 4. Barcode Symbologies ... 3 5. Product Introduction ... 4 6. Installation ... 4 Connection ... 4 Test Scanning... 5 Maintenance ... 5 7. Scanning Mode Selection ... 6 8. -
Page 4: Limited Warranty
This manual should only be used to make changes in the configuration of the scanner for specific applications. The NUSCAN 3200 Series scanners are ready to scan most kinds of barcodes. This laser barcode scanner does not require software or drivers to operate. The scanner enters data as keyboard data. -
Page 5: Introduction
2. Introduction The NUSCAN 3200 Laser Barcode Scanner combines the best scanning performance and value. NUSCAN 3200 comes in multiple modes to handle any task. Its flexible architecture gives users different configurations to choose from, with different combinations of communications. With its rugged high class ID design and ergonomic styling, NUSCAN 3200 offers superior service life and reduces user fatigue. -
Page 6: Contents
Some examples are shipping and receiving, manufacturing, retail, healthcare, transportation, document processing and tracking, and libraries. NUSCAN 3200 Series Scanners can read most of the popular barcode symbologies including Code 39, Code 93, Code 128, Code11, Interleaved 2 of 5, UPC-A, UPC-E,... -
Page 7: Product Introduction
5. Product Introduction Exit Window Trigger When a barcode is successfully decoded, the blue LED light of the scanner will turn on and off and the scanner will beep once. If the barcode is not successfully read, the LED will show red and the buzzer will not sound. Installation Insert the plug on the free end of the Communications Cable into the appropriate connector on the host as below described:... -
Page 8: Test Scanning
c. Serial Port (RS-232) Connection NOTE: For Serial port (RS-232), please plug the power connector of 5V power adapter to RS232 cable. Be sure that Host computer is turned off. Ensure that all connections are secure. Turn on your Host. Aim the scanner at a barcode. -
Page 9: Scanning Mode Selection
7. Scanning Mode Selection Trigger Mode (Default) The scanner becomes inactive as soon as the data is transmitted. It must be triggered to become active again. Continuous Mode When set this code, laser light is always ON. Can read barcode continuously after code transmission. Pulse Mode When set this code, laser light will flash when standby. -
Page 10: Beeper Mode Selection
8. Beeper Mode Selection (Deafult) Reset Mode The reading of the "Reset Configuration to Defaults” label turns all the parameters back to default values. -
Page 11: Default Parameters
9. Default Parameters These tables give the default settings of all the programmable parameters. DEFAULT VALUES OF OPERATING PARAMETERS Function Scanning Mode Selection Message/Block mode selection Good read beeper tone selection DEFAULT VALUES OF K/B PARAMETERS SETTING Function Keyboard type selection Message terminator DEFAULT VALUES OF RS-232 (SERIAL) COMMUNICATION PARAMETERS Function... -
Page 12: Barcode Scan Field
10. Barcode Scan Field Depth of Field (Up to 42 cm): Based on Symbol’s Standard Code 39 PCS=0.9 lable and 600 lux environment and there are +/- 1 cm tolerance... -
Page 13: Technical Specifications
11. Technical Specifications OPERATIONAL Light Source Optical System Scan Speed Minimum Bar Width Print Contrast Reading Indicators (LED) Beeper Operation System Interfaces PHYSICAL Height Depth Width Weight Cable POWER Input Voltage Power Operating Current Regulation ENVIRONMENTAL Temperature-Operating Temperature-Storage Humidity-Operation Humidity-Storage Light Levels Shock 650nm Laser Diode... -
Page 14: Programming Guide
12. Programming Guide If you need to make changes in the configuration of the scanner for specific applications, a full Programming Guide can be downloaded at: http://www.adesso.com/productmanuals/UserGuide_NuScan3200.pdf 13. Trouble Shooting a. Problem: Nothing happens when you follow the operating instructions. -
Page 15: Product Support
We have listed most of our FAQ (Frequency Asked Questions) at http://www.adesso.com/faqs.asp If it does not help you to resolve your product issues, you may also contact Adesso Technical Support by email or telephone support during 9:00AM to 6:00PM PST from Monday through Friday.
