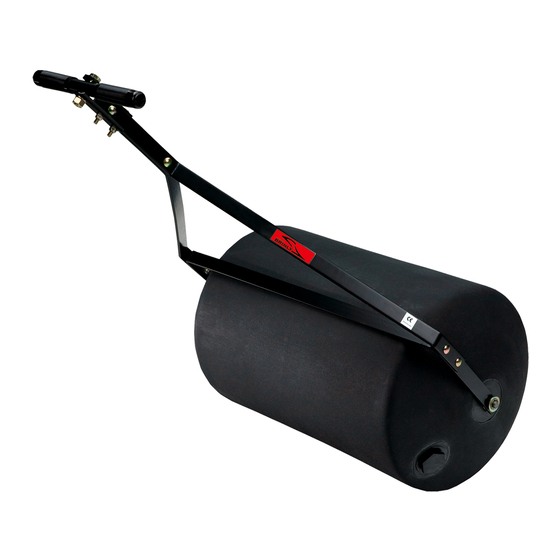

Brinly PRC-241 BH Owner's Manual
Lawn roller
Hide thumbs
Also See for PRC-241 BH:
- Owner's manual (32 pages) ,
- Owner's manual (7 pages) ,
- Owner's manual (11 pages)
Advertisement
OWNER'S MANUAL
L A W N R O L L E R
ROLLER MODEL:
P R C - 2 4 1 B H
P R T - 3 6 1 B H
P R T - 3 6 1 S B H
P R T - 4 8 1 S B H
• Safety
• Assembly
• Operation
• Repair Parts
• Maintenance
For use with Riders, Lawn
or Garden Tractors and ATV's
*PRC-241 BH Push version not shown.
Visit us on the web!
www.brinly.com
Important: This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
1
English, Spanish &
French Manual
L-1681BH-J
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Brinly PRC-241 BH
Summary of Contents for Brinly PRC-241 BH
- Page 1 • Repair Parts • Maintenance For use with Riders, Lawn or Garden Tractors and ATV’s *PRC-241 BH Push version not shown. Important: This manual contains information for the safety Visit us on the web! of persons and property. Read it carefully before www.brinly.com...
-
Page 2: Table Of Contents
INTRODUCTION AND SAFETY ================================================================================================ CONGRATULATIONS on your new Brinly-Hardy Lawn Roller! This accessory has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer service department toll-free at 1-877-728-8224. - Page 3 PARTS ================================================================================================ Handle for PRC-241 BH only Ref. # Description Qty. PRC-241 BH PRT-361 BH PRT-361S BH PRT-481S BH Frame Extension Bar B-3554-10 B-6289-10 B-5357-10 B-6290-10 Roller Drum Assembly B-5121 B-6271 B-5353-B B-5789-B Scraper Bar B-6291-10 B-6272-10 B-6292-10 B-6294-10 5/16” x 1”, Carriage Bolt...
-
Page 4: Hardware Identifier
(x1) ......D-146P B-3861 PARTS IN ADDITIONAL HARDWARE BAG (Only for PRC-241 BH) Nut: Hex 1/2” (x1) ..30M1600P Bolt: Hex Head 1/2 x 2-1/4”... -
Page 5: Assembly
ASSEMBLY ================================================================================================ Assembly Step 1 Attaching the Scraper Bar Hardware Panel A Add a 5/8” flat washer (7) to the Roller Drum (2) as illustrated. Slide a square bearing (10) into the large square hole at the end of the Scraper Bar (3) and add to the Roller Drum. - Page 6 ASSEMBLY ================================================================================================ NOTE: Do not tighten the lock nuts added on this step completely (until Assembly Step 4-A is complete). Assembly Step 3 Connecting the Frame Extension Bars Hardware Panel C Center the Spacer (12) between the second hole of the Extension Bars (1) and run a 5/16”...
- Page 7 ASSEMBLY ================================================================================================ PRT-361 BH, PRT-361S BH & PRT-481S BH: Attaching the Clevis If you are assembling PRC-241 BH: Assembly Step 5 Skip Step 5 and continue Hardware Panel D to Assembly Step 6 Add the hitch pin (13) through remaining openings of the Clevis (20) and secure with a Hitch Pin Cotter (14).
- Page 8 NOTE: A wrench around the prongs (or a screw driver between prongs) can be used to further tighten if necessary. ONLINE: www.brinly.com Additional info and PRC-24BH PRT-36SBH PRT-48SBH...
-
Page 9: Operation
CAUTION! Do not overload your Tractor / Rider. clean and dry. Roller fully loaded with water weighs: • Occasionally check all moving parts for free movement and, PRC-241 BH = 270 lbs if necessary, lubricate with oil. PRT-361 BH = 690 lbs •... -
Page 10: Limited Warranty
Hardy Co. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above. Brinly-Hardy Company • 3230 Industrial Parkway • Jeffersonville, IN 47130 • (877) 728-8224 • brinly.com English Manual L-1681BH-J...
