CALEFFI
www.cal

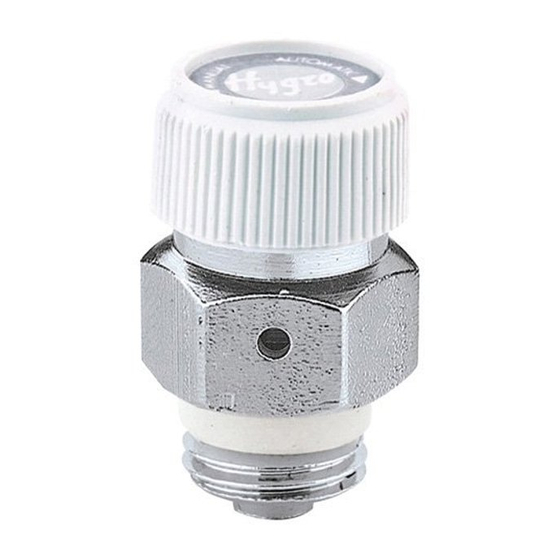

Automatic Hygroscopic Air Vent for radiators
© Copyright 2018 Caleffi

Technical Characteristics

Connection:
Materials: Body
Maximum working pressure: hot water:
Maximum working temperature:
Maximum peak temperature:
This item is designed for use in closed hydronic or steam systems. Do not use in
plumbing applications. This item does not meet the low-lead plumbing standards of
U.S. and Canada.
SAFETY INSTRUCTION
This safety alert symbol will be used in this manual to draw attention to
safety related instructions. When used, the safety alert symbol means
ATTENTION: BECOME ALERT!
YOUR SAFETY IS INVOLVED! FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A SAFETY HAZARD.
om
WARNING: This product can expose you to chemicals including lead,
which is known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
CAUTION: All work must be performed by
personnel trained in the proper application, installation,
and maintenance of systems in accordance with all
applicable codes and ordinances.
CAUTION: Over -tightening and breakage can occur
with the use of T
provides lubricity so that care must be exercised not to
over-tighten joints. Failure to follow these instructions
could result in property damage and /or personal injury.
WARNING: System
temperature can be hazardous. Be sure the pressure
has been reduced to zero and the system temperature is
below 100°F (38°C). Failure to follow these instructions
could result in property damage and/or personal injury.
steam:
pipe joint compounds. T
®
uids are under pressure or
38455.02
508013A
1/8" NPT male
Chrome-plated brass
150 psi (10 bar)
15 psi (1 bar)
212˚ F (100˚ C)
230˚ F (110˚ C)
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 508013A and is the answer not in the manual?

Questions and answers

Summary of Contents for CALEFFI 508013A

  • Page 1 CALEFFI www.cal 38455.02 Automatic Hygroscopic Air Vent for radiators © Copyright 2018 Caleffi 508013A Technical Characteristics Connection: 1/8” NPT male Materials: Body Chrome-plated brass Maximum working pressure: hot water: 150 psi (10 bar) steam: 15 psi (1 bar) Maximum working temperature: 212˚...
  • Page 2 A small ball inside the body prevents water from escaping. Replacement cartridge Part number: 508100A. Scan to view · Caleffi North America, Inc. 3883 West Milwaukee Road Milwaukee, WI 53208 Installation Tip T: 414.238.2360 F: 414.238.2366 7-19-18...
