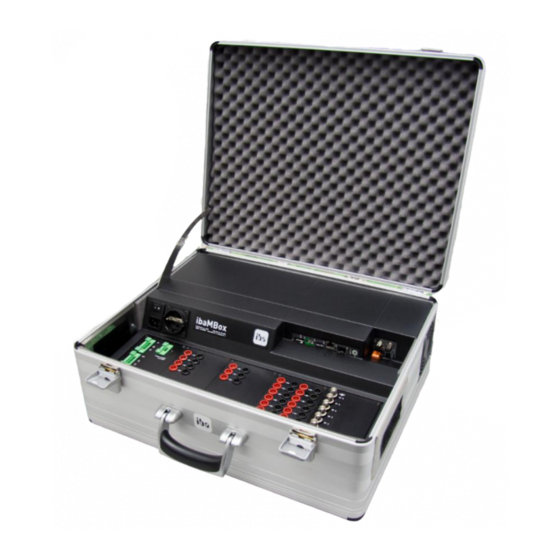

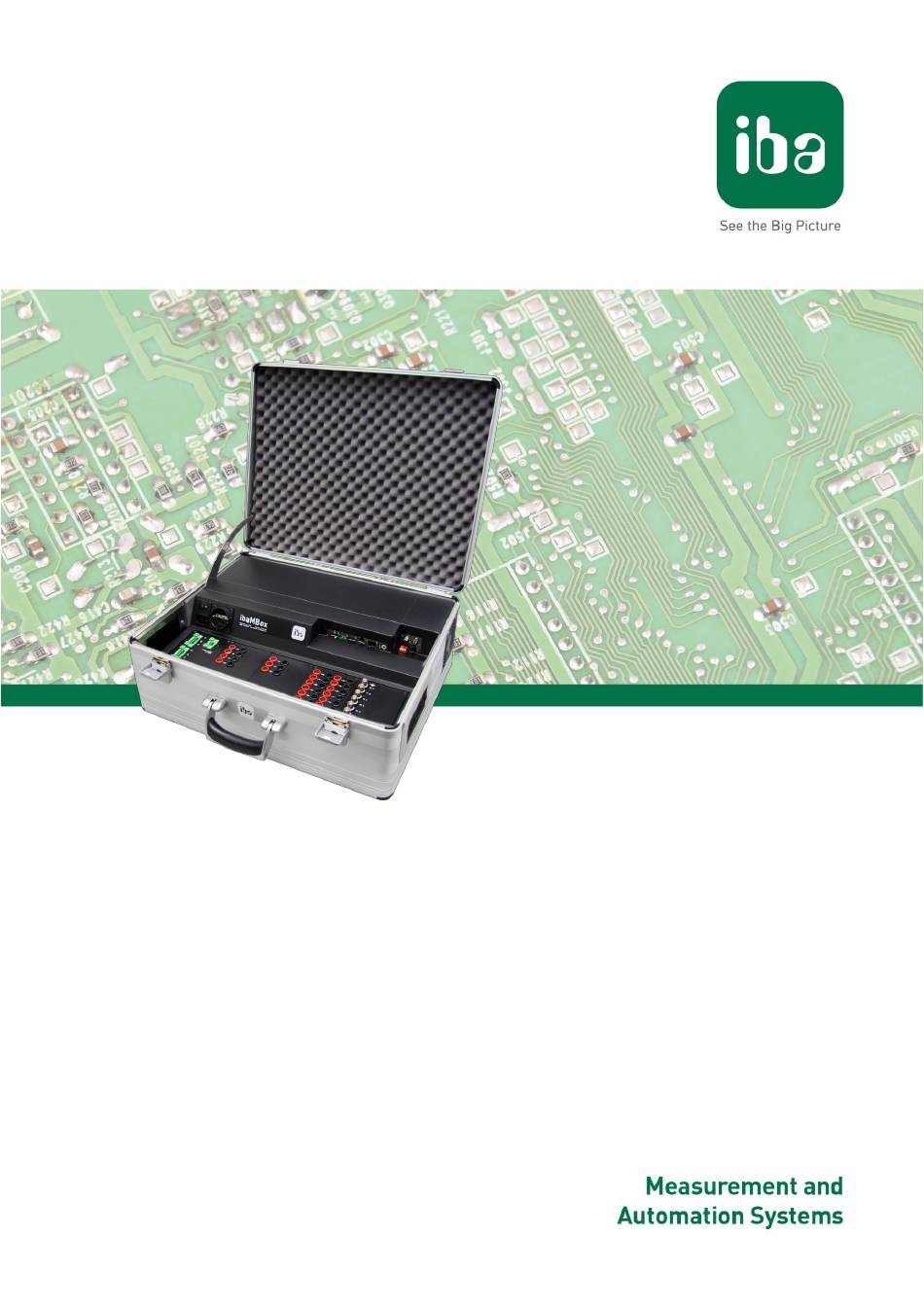

- Page 1 ibaMBox Mobile measuring system Manual Issue 1.3...
- Page 2 However, the information in this publication is updated regularly. Re- quired corrections are contained in the following regulations or can be downloaded on the Inter- net. The current version is available for download on our website, www.iba-ag.com. ® Windows is a label and registered trademark of the Microsoft Corporation.
-
Page 3: Table Of Contents
ibaMBox Manual Contents About this manual ................... 4 Target group ....................4 Notations ....................... 4 Symbols used ....................5 Introduction ..................... 6 Connections ....................9 Scope of delivery ..................10 Safety instructions ..................11 Proper use ....................11 Special safety instructions ................11 System requirements .................. -
Page 4: About This Manual
This manual describes the construction, the use and the operation of the device, ibaMBox. You can find a general description of the iba modular system and further infor- mation about the design of the modules and how to use and operate them in separate manuals. -
Page 5: Symbols Used
ibaMBox Manual Symbols used If safety instructions or other notes are used in this manual, they mean as follows: The non-observance of this safety information may result in imminent risk of death or severe injury: by an electric shock; ... -
Page 6: Introduction
The same modules are used in ibaMBox as are in the iba modular system; the backplane has been newly designed for ibaMBox. In ibaMBox, a central unit can be combined with up to 4 I/O modules; the central units and I/O modules available for ibaMBox are listed in the table below. - Page 7 Other documentation The handling and configuration of central units, I/O modules and ibaCMC are described in the relevant device manuals. You can find the device manuals on the iba Software & Manuals DVD supplied. ibaMBox at a glance Based on the reliable iba modular system ...
- Page 8 Manual ibaMBox Fields of application The capture of analog input signals in the fields of: measurement data acquisition power generation and distribution test benches condition monitoring Issue 1.3...
-
Page 9: Connections
The connections are designed as BNC, banana or Phoenix con- nectors depending on the I/O module. The different module types are marked using the same color code as in the classic iba modular system. The assignment of connections to the individual modules can therefore be seen clearly. -
Page 10: Scope Of Delivery
Covering caps for FO cables and USB Manual ibaMBox Manuals central unit and I/O modules, according to customer’s equipment Plug components for Phoenix connectors, according to customer’s equipment iba Software & Manuals DVD Issue 1.3... -
Page 11: Safety Instructions
The device is an electrical apparatus. It may only be used for the following applications: Measurement data acquisition and analysis Applications of the software products (such as ibaPDA) and hardware products of iba AG. The device is only to be used as shown in chapter 'Technical Data.' Special safety instructions Be sure to follow the safety instructions of each module in the relevant manuals. -
Page 12: System Requirements
Optional External input devices for operation: monitor, keyboard and mouse ibaNet fiber optic patch cable (duplex) for connecting additional iba devices With the ibaCMU-S central unit, the data is also stored on the device. However, the ibaCMC condition monitoring center, which is connected via the network, is required for configuration and visualization. -
Page 13: Assembly, Connection, Disassembly
ibaMBox Manual Assembly, connection, disassembly Connection 1. Disconnect ibaMBox from the power supply. 2. Connect all measuring cables. 3. If you are using an external notebook, connect the central unit to the notebook via an ibaNet fiber optic patch cable (duplex): ... -
Page 14: Device Description
2-pin Phoenix connector is used for the power supply for other iba devices (power out: 24 V, max. 20 W). The connectors of the ibaPADU-S-CM, ibaCMU-S and ibaPQU-S central units are the same. - Page 15 ibaMBox Manual Example: ibaPADU-S-CM central unit Connections: 8 digital inputs: 16-pin connector Power out: 2-pin connector 24 V, max. 20 W Ensure the correct polarity when connec- ting the power supply. Figure 5: ibaPADU-S-CM connector panel ibaDAQ-S central unit Connections: 2 digital inputs DI: 4-pin connector 2 digital outputs DO:...
-
Page 16: I/O Modules
Manual ibaMBox 7.2.2 I/O modules Phoenix connector model Example: ibaMS16xAI-10V Figure 7: ibaMS16xAI-10V connector panel with Phoenix connector Connection technology of the I/O modules with Phoenix connectors: I/O modules Connection technology ibaMS16xAI-10V (-HI) 2 x 16-pin connector ibaMS16xAI-24V (-HI) ibaMS16xAI-20mA ibaMS16xDI-220V ibaMS16xDI-24V... - Page 17 ibaMBox Manual ibaMS4xUCO Connections: 8 digital inputs DI: 16-pin connector 4 digital outputs DO: 6-pin connector Counter inputs: 37 pin D-Sub connector Figure 8: ibaMS4xUCO connector panel Banana connector model Analog input modules and the digital input module ibaMS16xDI-24V are available with banana connectors.
- Page 18 Manual ibaMBox BNC connector model A BNC connector is available for each input. BNC connector assignment: Example: ibaMS16xAI-10V Figure 10: ibaMS16xAI-10V connector panel with BNC connectors Example: ibaMS8xIEPE Figure 11: ibaMS8xIEPE connector panel with BNC connectors and LED display Issue 1.3...
-
Page 19: Interfaces And Displays
Function in the ibaDAQ-S central unit The FO connections function as an ibaFOB-io card. Other iba devices can be connected via it, such as the ibaPADU family, iba bus monitors and system connections. -
Page 20: Cable Entry
FO signal detected No error Blinking Disturbance, internal device applications are not running. Hardware error Important note If the LED L4 indicates a failure, please contact iba Support. Issue 1.3... -
Page 21: Exchange Built-In Modules
ibaMBox Manual Exchange built-in modules Only the manufacturer is authorized to open the coverage or connector panels and to exchange modules, otherwise the warranty for the measuring case becomes void. If you exchange modules on your own responsibility, observe the following description. All works must only be carried out by qualified professionals. - Page 22 Manual ibaMBox 2. Lift the connector panels carefully and protect them with ESD sheets. Now you can inspect the conjunctions of the inner cables. Ensure that the cables are not disconnected. 3. Place the connector panels inside ibaMBox. Issue 1.3...
- Page 23 ibaMBox Manual 4. Unfasten the 2 screws at the back of ibaMBox, but don’t remove them completely. 5. Now lift the black coverage carefully for a few centimeters at the front. Issue 1.3...
- Page 24 Manual ibaMBox 6. For pulling off the lever on the left, the lid of the ibaMBox has to be moved a little to the front. Issue 1.3...
- Page 25 ibaMBox Manual 7. Afterwards the coverage of the modules can be removed. Please attend to the cables still being fixed to the coverage on the left. 8. Place the shielded panels in a way that they do not disturb your following activities. Issue 1.3...
- Page 26 Manual ibaMBox 9. Inside at the back of ibaMBox you will see 2 screws within a black, pasted spacer. Push the screws back that they flush with the spacer. Issue 1.3...
- Page 27 ibaMBox Manual 10. Unfasten and remove the screw which fixes the bracket of the modules. It is to find between the devices at the bottom of ibaMBox. Issue 1.3...
- Page 28 Manual ibaMBox 11. To disassemble the modules unfasten the screws fixing the devices to the backplane. Remove the modules carefully. Take care – a grounding cable can be fixed to the module! 12. Remove the grounding cable and the connector with the cables. Important note Never pull at the cables, but always at the connector! Ensure that the cables are not disconnected.
- Page 29 ibaMBox Manual 13. Always work from top to bottom! To change only a module in a lower position (pos. 2, 3 or 4) can turn out to be prob- lematic. The modules above should also be removed. 14. Mounting of ibaMBox again is done in reverse order. Take care of the black cables connected to the coverage –...
- Page 30 Manual ibaMBox 15. Start screwing the connector panels with the drilling top right. Position the connector panels exactly on the coverage, that you can see the threads. Connect all 20 screws loosely first and tighten them fast afterwards. Issue 1.3...
-
Page 31: Order Information
Manual Order information Order no. Name Description 10.124800 ibaMBox Measuring case for iba modular system 10.124803 ibaMBoxCP-BlankCover Connector panel blank Connector panels with Phoenix connectors Note The manufacturer Phoenix Contact offers several plug components with different con- nection methods (e.g. screw connection with tension sleeve, crimp connection, etc.) that fit to the built-in base strips. - Page 32 Manual ibaMBox Order no. Name Description 10.124817 ibaMBoxCP-MS4xUCO-Phoenix Connector panel Phoenix connectors: 1x DFK-MSTB 2,5/16-GF-5,08 1x DFK-MC 1,5/6-GF-3,81 10.124818 ibaMBoxCP-MS16xDI-220V-Phoe- Connector panel Phoenix connectors: 2x DFK-MSTB 2,5/16-GF-5,08 10.124819 ibaMBoxCP-MS16xDI-24V-Phoenix Connector panel Phoenix connectors: 2x DFK-MSTB 2,5/16-GF-5,08 10.124820 ibaMBoxCP-MS32xDI-24V-Phoenix Connector panel Phoenix connectors: 4x DFK-MC 1,5/12-GF-3,81 Connector panels with banana and BNC connectors Order no.
-
Page 33: Technical Data
Technical data Brief description Name ibaMBox Order number 10.124800 Description Flexible measuring system for mobile use iba modular system Freely configurable, constisting of a central unit and up to 4 I/O modules Central units ibaPADU-S-CM ibaPQU-S ibaCMU-S ibaDAQ-S I/O modules... - Page 34 Manual ibaMBox Dimension and weight Dimensions (width x depth x height) 520 mm x 450 mm x 215 mm Weight Approx. 13.5 kg with 1 central unit + 4 I/O modules Issue 1.3...
-
Page 35: Support And Contact
+49 911 97282-0 Fax: +49 911 97282-33 Email: iba@iba-ag.com Shipping address iba AG Gebhardtstr. 10 DE-90762 Fürth Germany Regional and worldwide For the contact details of your regional iba office or representative, please refer to our website, www.iba-ag.com. Issue 1.3...
