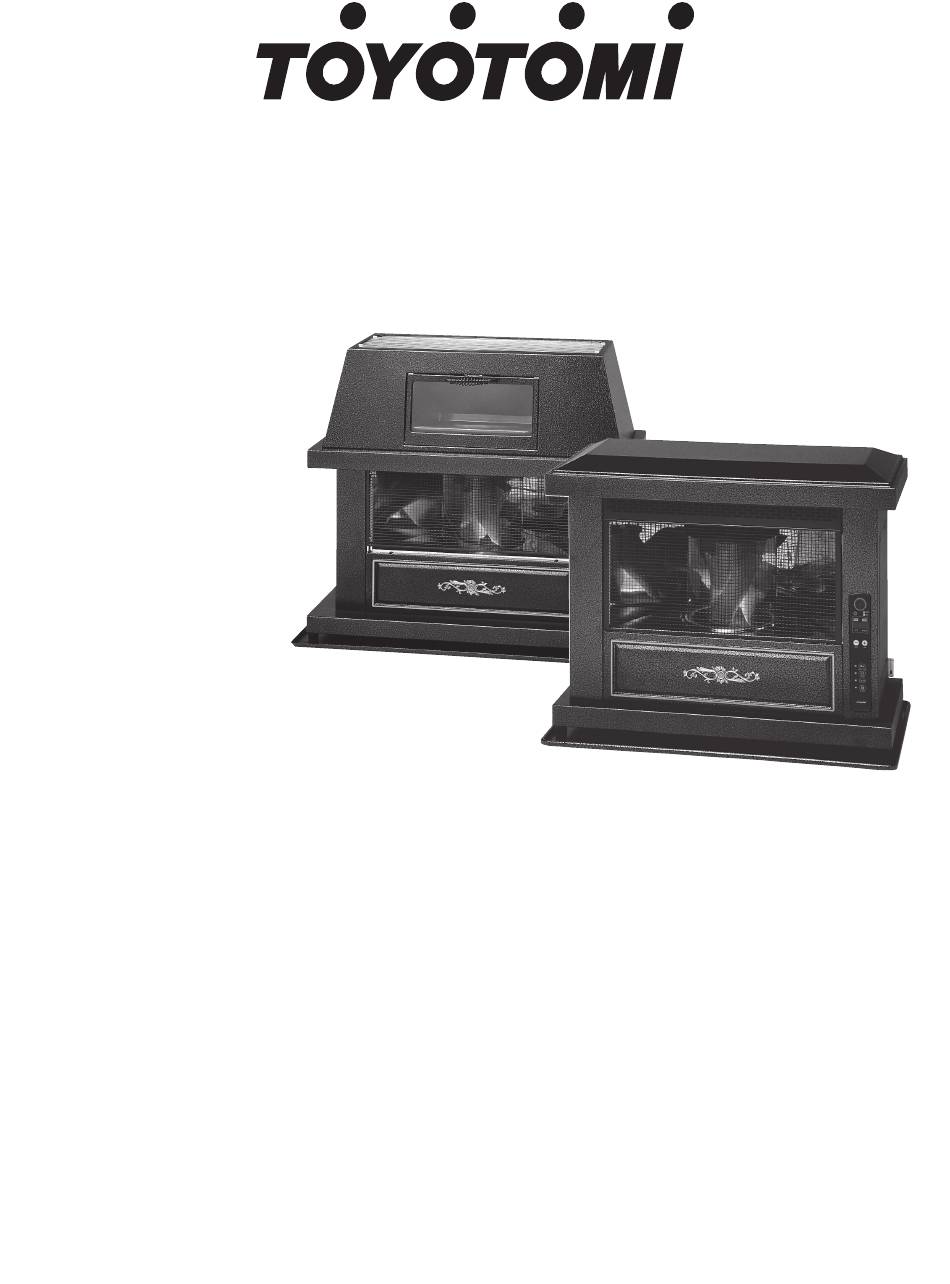

- Page 1 VENTED HEATING SYSTEM FQ-C70 / FQ-S70 OPERATING MANUAL ................... PAGE 1...
-
Page 2: Section A: Specifications
Low - 0.246 L/h Fuel System: External tank (2) Fuel Type: Paraffin only Dimensions (W × H × D): 840 × 745 × 450 mm (FQ-C70) 760 × 608 × 483 mm (FQ-S70) Weight: 40 kg (FQ-C70) 36 kg (FQ-S70) Vent Pipe Hole:... -
Page 3: Section B: Safety Tips For Operation
ENGLISH SECTION B: SAFETY TIPS FOR OPERATION CAUTION: Heater and vent pipe system must be properly installed before operation. Please follow instructions under “Installation”, Section I. 1. Children should be supervised to ensure that they do not play with More than the appliance. -
Page 4: Section D: Operating Controls And Part Names
Use of a highly volatile flammable fuel such as gasoline can produce uncontrollable flames, creating a severe fire hazard. SECTION D: OPERATING CONTROLS AND PART NAMES Before using heater, familiarize yourself with the following operating controls and part names. FQ-C70 Circulation Outlet opening Guard Fan cover... - Page 5 ENGLISH 1. ON/OFF button 1. ON/OFF button: The main button to turn the heater on and off. Switch it “ON” to activate the heater. Combustion will start after 2-6 minutes in pre-heating period. 2. Information display: Displays the clock, set temperature, room temperature and error codes.
-
Page 6: Section E: Operation
ENGLISH SECTION E: OPERATION BEFORE IGNITION 1. FILLING FUEL Fill the external tank using a fuel pump and clean off any spilled fuel. Red Reset Button When there is not enough fuel in the tank, the heater will extinguish automatically. When this occurs, you will hear the buzzer and E-2 or E-6 is displayed. - Page 7 ENGLISH NOTE: When the heater does not ignite after once or twice igniting operation, do not ignite many times and contact your dealer to avoid abnormal combustion. If the abnormal combustion occurs, press ON/OFF button to “OFF” position and wait until the accumulating fuel burns out. When this occurs, do not unplug the heater.
-
Page 8: Timer Operation
ENGLISH TIMER OPERATION The timer allows you to switch on the heater automatically at a preset time. In order to switch on the timer, the correct time must have been set and the heater should be off. Follow the procedure below: 1. -
Page 9: Turning Heater Off
CAUTION: Be sure to disconnect heater before performing any checks or cleaning. CAUTION: Allow heater to cool completely before cleaning or maintenance. FOR OPTIMUM HEATER PERFORMANCE, THE PARTS SHOWN BELOW SHOULD BE CLEANED REGULARLY: Fan cover Guard Integral fuel strainer (inside) FQ-C70 Guard Fan cover Integral fuel strainer (inside) FQ-S70... - Page 10 As a state-of-the-art furnace, your heater requires periodic inspection and service by an authorized technician to insure optimum, trouble free performance. This inspection should include: a combustion check; flue pipe check; burner assembly check; cleaning all necessary parts and replacing gaskets as needed. Please ask your authorized TOYOTOMI dealer for details and scheduling.
-
Page 11: Section G: Troubleshooting
ENGLISH SECTION G: TROUBLESHOOTING BEFORE REQUESTING A SERVICE CALL The following symptoms are normal during operation of the heater. CONDITION REASON White smoke or smell inside home when the heater Machine oil used in factory assembly, or transit is first used. dust burns off the surfaces of the burner or heat exchanger. -
Page 12: Section H: Long Term Storage
ENGLISH SECTION H: LONG TERM STORAGE At the close of each heating season, or when you do not plan to use your heater for an extended period, the following procedures are recommended. 1. As the end of the season approaches, calculate your fuel purchases so that you can use up all the fuel you have on hand. -
Page 13: Section I: Installation
STANDARD INSTALLATION PARTS The following standard installation parts are enclosed with heater. For alternate installation methods, you may need to purchase additional accessories which are available from your TOYOTOMI dealer. See “Accessory Parts”. Wall Bracket (2 sets) (PART #17212589) Bind Tapping Screw (2) (PART #17187555) -
Page 14: Installation Advice
ENGLISH INSTALLATION ADVICE 1. Intake air and exhaust flue pipe openings of the Flue Pipe must be fully exposed to outside. The Flue Pipe must not vent into a chimney, garage, basement, under-floor or ceiling cavity, or any enclosed area, or be installed vertically, because the Flue Pipe is a “Heat Exchanger”... -
Page 15: Installation Of Heater And Flue Pipe
ENGLISH INSTALLATION OF HEATER AND FLUE PIPE A) Before commencing any installation work, check that the proposed installation will comply with Building Code requirements and Local Consent Authority rules that may apply to vented heaters in your area. (Check your Local Authority website, or consult your Installer / Supplier.) B) The Flue Pipe is designed to be installed through the wall of any conventional building cladding, including Brick, Hebel, Linear, Gibraltar and Plaster Board, Tiles, Weatherboard, Plastered Polystyrene, and metal... - Page 16 ENGLISH 3. Install the ceramic log. (for FQ-C70) a. Open the door of the oven. Oven (for FQ-S70) a-1. Remove four (4) screws from top plate to remove the top plate. a-1. Remove four (4) screws from canopy guard to remove the canopy guard. Remove the heat chamber lid from the heat exchanger.
- Page 17 6. THE HANDLE FOR OVEN (only for FQ-C70) Use the handle for oven to open and close the oven as it will be hot during the operation. When you do not use the handle for oven, hang it on the hole on the right side panel.
- Page 18 TOYOTOMI CO., LTD. 5-17, Momozono-cho, Mizuho-ku, Nagoya, 467-0855 Japan Printed in Japan http://www.toyotomi.jp Rev. 08/18 2273002060...
