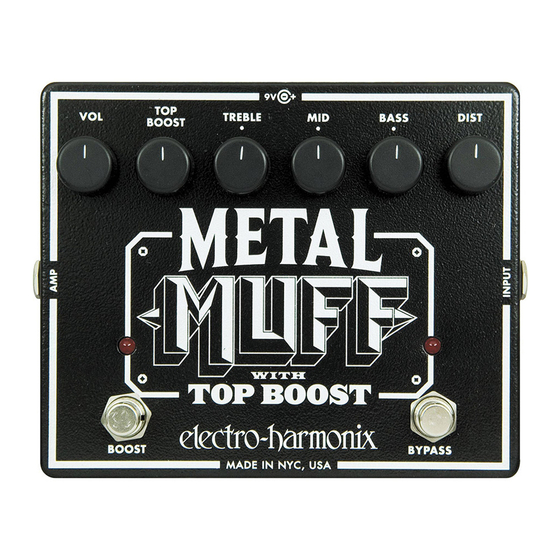

METAL MUFF
with TOP BOOST
- DESCRIPTION -
Congratulations on your purchase of the METAL MUFF with TOP BOOST! Electro-
Harmonix gave its total effort to design the best heavy metal pedal ever built. The
Metal Muff utilizes three powerful EQ bands, including a midrange control designed
for perfect contouring and beautifully sculpted mids. The Metal Muff offers
commanding bass and defined high end—coupled with user-controlled distortion from
pinched-edge to totally crushing—making it a heavy metal gold mine.
- CONTROLS -
DISTORTION CONTROL – adjusts the amount of input gain.
BASS CONTROL – provides up to 14dB of cut and boost in the bass frequency
range.
MID CONTROL – provides up to 15dB of cut and boost in the middle frequency
range.
TREBLE CONTROL – provides up to 10dB of cut and boost in the treble frequency
range.
TOP BOOST CONTROL – provides an extra 'bite' by boosting a narrow band of high
frequencies. When Top Boost is inactive, the Top Boost control has no effect.
VOLUME CONTROL – sets the output level.
TOP BOOST FOOTSWITCH – Engages the TOP BOOST feature of the METAL
MUFF. The corresponding LED is lit when TOP BOOST is engaged.
BYPASS FOOTSWITCH – Selects whether the METAL MUFF is engaged or
bypassed. The corresponding LED will be lit when the pedal is engaged, and dark
when bypassed.
INPUT Jack – This ¼" jack is the audio input to the METAL MUFF.
OUTPUT Jack – This ¼" jack is the audio output from the METAL MUFF. When the
METAL MUFF is in Bypass mode, the OUTPUT jack is connected to the INPUT jack
through a buffer.
