Octavix
OCTAVE FUZZ

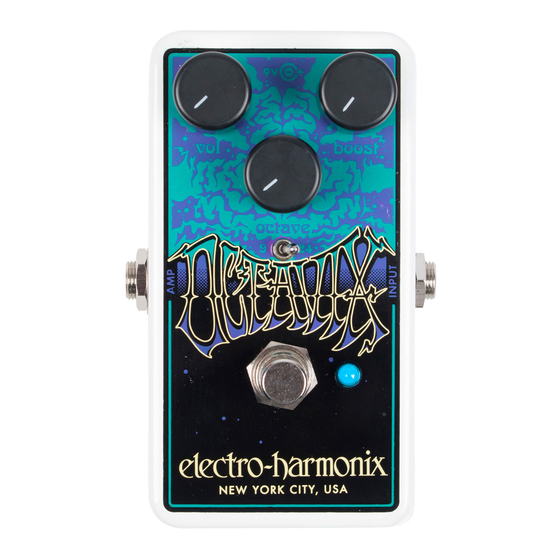

Congratulations on your purchase of the Electro-Harmonix Octavix, a fuzz pedal with
a frequency doubling circuit. The Octavix produces a range of distortion from light
drive to over the top torn speaker fuzz tone. The frequency doubling circuit yields
classic chime and ring modulated overtones. The Octavix has control over Boost,
Octave, Volume and internal rail voltage. The rail voltage switch enables even more
tonal possibilities not found in other octave fuzz pedals.
WARNING: Your OCTAVIX comes equipped with an Electro-Harmonix 9.6DC-200BI power
®
supply (same as used by Boss & Ibanez
62mA at 9VDC with a center negative plug or runs off a 9Volt battery. Using the wrong adaptor
or a plug with the wrong polarity may damage your OCTAVIX and void the warranty.
GETTING STARTED
Connect the output plug of the supplied power adaptor to the 9V power jack. Plug
your instrument into the INPUT jack; connect your amp to the OUTPUT jack.
Sample settings:
*Tip: Playing lightly will make the octave above effect more pronounced.
®
: 9.6 Volts DC 200mA). The OCTAVIX draws up to
