TFA 30.3036IT Instruction Manual

Temperature station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

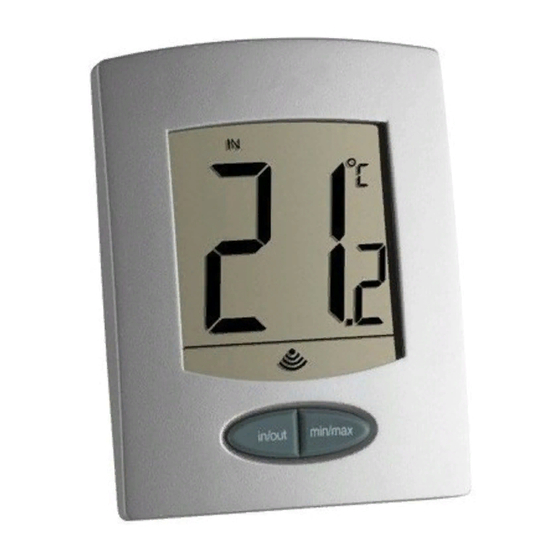

TEMPERATURE STATION
Instructions manual
Cat. No. 30.3036IT
Thank you for choosing this wireless temperature station from TFA.
BEFORE YOU USE IT
Please be sure to read the instruction manual carefully.
This information will help you to familiarise yourself with your new device, learn
all of its functions and parts, find out important details about its first use and
how to operate it, and get advice in the event of faults.
Following the instruction manual for use will prevent damage to the device and
loss of your statutory rights arising from defects due to incorrect use.
We shall not be liable for any damage occurring as a result of not
following these instructions. Likewise, we are not responsible for any
incorrect readings and any consequences that may result from such.
Please take particular note of the safety advice!
Please look after this manual for future reference.
23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30.3036IT and is the answer not in the manual?

Questions and answers

Related Manuals for TFA 30.3036IT

Summary of Contents for TFA 30.3036IT

  • Page 1 TEMPERATURE STATION Instructions manual Cat. No. 30.3036IT Thank you for choosing this wireless temperature station from TFA. BEFORE YOU USE IT Please be sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, learn all of its functions and parts, find out important details about its first use and how to operate it, and get advice in the event of faults.

  • Page 2: Scope Of Supply

    SCOPE OF SUPPLY: • Temperature station (basic unit) • Outdoor transmitter • Instruction manual FIELD OF OPERATION AND ALL OF THE BENEFITS OF YOUR NEW TEMPERATURE STATION AT A GLANCE: Temperature display in degrees Celsius (°C) • Indoor and outdoor temperature display with MIN/MAX recording •...
  • Page 3 Unauthorised repairs, modifications or changes to the product are • prohibited. The product is not to be used for medical purpose or for public • information, but is intended solely for home use. Caution! Risk of injury: • Keep this instrument and the batteries out of reach of children. •...
  • Page 4 ! Important information on product safety! • Do not expose the instrument to extreme temperatures, vibration or shock. Protect from moisture. • The outdoor transmitter is protected against splash water, but is not • watertight. Choose a shady and dry position for the outdoor transmitter. ELEMENTS The temperature station Hanging...
  • Page 5 The outdoor transmitter • Remote transmission of outdoor temperature to temperature station by 868 MHz Splash proof casing • Wall mounting case • Mounting at a sheltered place. Avoid direct • rain and sunshine INSTALL AND REPLACE BATTERIES IN THE OUTDOOR TRANSMITTER The outdoor transmitter uses 2 x AAA, IEC LR3, 1.5V battery.
  • Page 6 INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE STATION The temperature station uses 2 x AA, IEC LR6, 1.5V batteries. To install and replace the batteries, please follow the steps below: Remove the cover at the back of the temperature station. Insert batteries observing the correct polarity (see marking).
  • Page 7 must be received and stored by the temperature station in the first minute of power being supplied to it. SETTING UP: Note: This temperature station receives only one outdoor transmitter. First, insert the batteries into the outdoor transmitter (see “Install and replace batteries in the outdoor transmitter“).

  • Page 8: Function Buttons

    after 1 minute, the batteries will need to be removed from both units and reset from step 1. In order to ensure sufficient 868 MHz transmission however, this should under good conditions be a distance no more than 80 meters between the final position of the temperature station and the outdoor transmitter (see notes on “Mounting”...

  • Page 9: Lcd Screen

    MIN/ MAX button • To toggle between the MIN/MAX indoor and outdoor temperature display Press and hold to reset at the MIN/MAX indoor temperature records (if • the indoor temperature is displayed) • Press and hold to reset at the MIN/MAX outdoor temperature records (if the outdoor temperature is displayed) LCD SCREEN: Transmitter low...
  • Page 10 * When the signal is successfully received by the temperature station, the outdoor transmission icon will be switched on. (If not successful, the icon will not be shown on LCD). The user can then easily see whether the last reception was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that a reception is currently taking place.

  • Page 11: Resetting The Min/Max Records

    DISPLAY OF OUTDOOR TEMPERATURE READING AND OUTDOOR MIN/MAX RECORDS: Press the IN/OUT button to view the current outdoor temperature Press the MIN/MAX button to view the MIN record Press again the MIN/MAX button to view the MAX record. Press the MIN/MAX button once more to return to current outdoor temperature.
  • Page 12 When the outdoor temperature is displayed, press and hold the MIN/MAX button for about 2 seconds to reset the outdoor MIN/MAX temperature records to the current indoor temperature. Note: the indoor and outdoor temperature need to be reset separately. 868 MHz RECEPTION The temperature station should receive the temperature data within 1 minute after set-up.
  • Page 13 Neighbours using electrical devices operating on the 868MHz signal frequency can also cause interference. Note: When the 868MHz signal is received correctly, do not re-open the battery cover of either the outdoor transmitter or temperature station, as the batteries may spring free from the contacts and force a false reset. Should this happen accidentally then reset all units (see Setting up above) otherwise transmission problems may occur.
  • Page 14 To wall mount Fix a screw (not supplied) into the desired wall, leaving the head extended out the by about 5mm. Hang the temperature station onto the screw. Remember to ensure that it locks into place before releasing. Free standing With the foldout stand, the temperature station can be placed onto any flat surface.
  • Page 15 POSITIONING THE OUTDOOR TRANSMITTER: The outdoor transmitter is supplied with a holder that may be attached to a wall with the two screws supplied. The outdoor transmitter can also be positioned on a flat surface by securing the stand to the bottom to the outdoor transmitter. To wall mount: Secure the bracket onto a desired wall using the screws and plastic anchors.

  • Page 16: Care And Maintenance

    check that the temperature reading is receivable. In event that the signal is not received, relocate the outdoor transmitter or move it slightly as this may help the signal reception. CARE AND MAINTENANCE • Clean the temperature station and the outdoor transmitter with a soft damp cloth.

  • Page 17: Waste Disposal

    transmitter and/or the temperature station • Reduce the distance between the outdoor transmitter and the temperature station • Check if there is any source of interference Incorrect display • Change batteries WASTE DISPOSAL This product has been manufactured using high-grade materials and components which can be recycled and reused.

  • Page 18: Specifications

    This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product with other household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally- compatible disposal.

  • Page 19: Declaration Of Conformity

    Outdoor transmitter 32,4 x 14,1 x 86,5mm TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D - 97877 Wertheim No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
