Powrmatic MC200 Setting Instructions Manual

Integral version
Hide thumbs Also See for MC200:
Table of Contents

Advertisement

Quick Links

Download this manual
MC200
Integral Version
Setting Instructions
MC200 Integral Version - Setting Instructions Issue 1.1 May 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC200 and is the answer not in the manual?

Questions and answers

Related Manuals for Powrmatic MC200

Summary of Contents for Powrmatic MC200

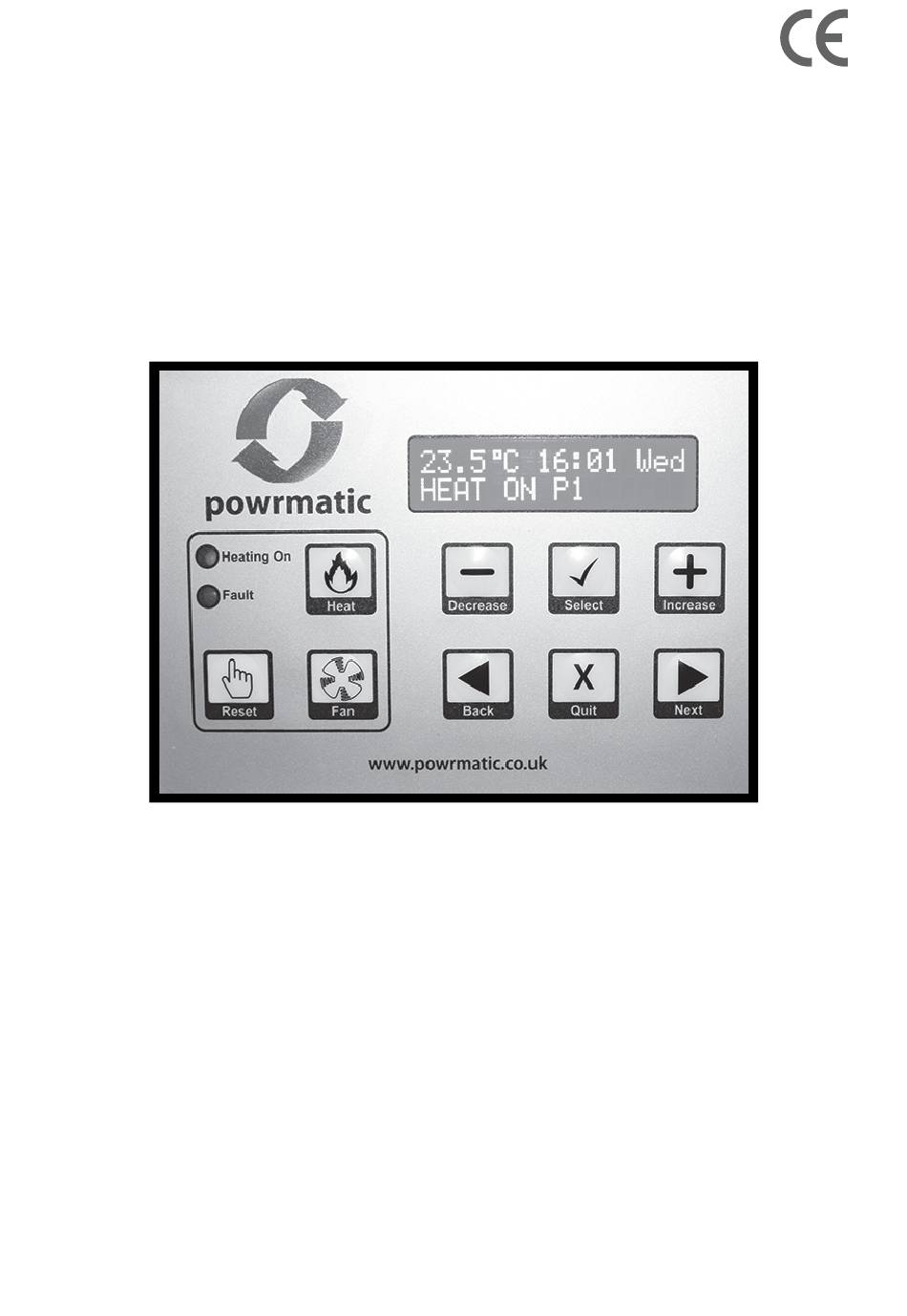

  • Page 1 MC200 Integral Version Setting Instructions MC200 Integral Version - Setting Instructions Issue 1.1 May 2014...

  • Page 2: Table Of Contents

    Wiring between Terminals Com & SEN2 and a switch can be completed in ordinary 2 core cable e.g. 7 x 0.2mm² multistrand 1.2 Basic MC200 settings For information on the basic MC200 settings e.g. Date, Time, Key Pad Layout, Time Switch Programming etc refer to the supplied MC200 Users Instructions.

  • Page 3: Engineer Controls

    Auto reset (On/Off) Sets whether the control will complete an automatic reset of lockout, If lockout signal is not removed by a manual reset the MC200 will initiate an automatic reset 30 minutes after the lockout signal and then once every 24hrs.

  • Page 4: Burner Test

    2.2 Engineer Settings Menu flow chart At the normal display screen press Back to access the Password screen The rst * will be pulsing. Press - or + to enter 5. Press  to go to the next digit and repeat until the password is entered. Password **** Press and the screen will show VALID .

  • Page 5: Service Date

    Terminals Sen1 & Com Temperatures returned by the two sensors Internal + Remote Terminals Sen1, Com & In2 are averaged by the MC200. Remote + Remote Terminals Sen1, Com & In2 The remote sensor may be either ‘room’ or ‘duct’ type.

  • Page 6: Outputs

    If the sensor goes open-circuit (if either of the sensors goes open-circuit where two are fitted), the Fault LED will flash. The LCD display will show “sensor failed”. NOTE: The earlier MC100 sensor cannot be used with the MC200 and the MC200 sensor cannot be used with the MC100. 4. Outputs 4.1 Single burner...

  • Page 7: Terminal Specifications

    2 - Voltage MUST NOT be applied to the sensor terminals. If a switch is tted across COM and SEN 2 it must be volt free. 8. Short List of Parts Item Powrmatic Part # Complete unit MC200CAB/2 Internal sensor bead...
