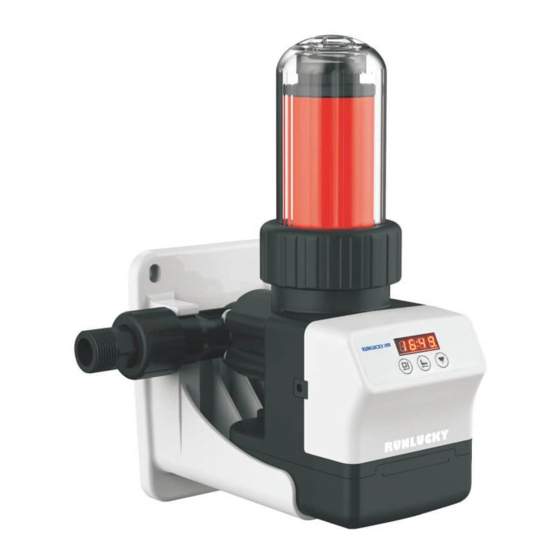

User Manual for High-efficiency Automatic Backwash Disk Prefilter
1. Main Application

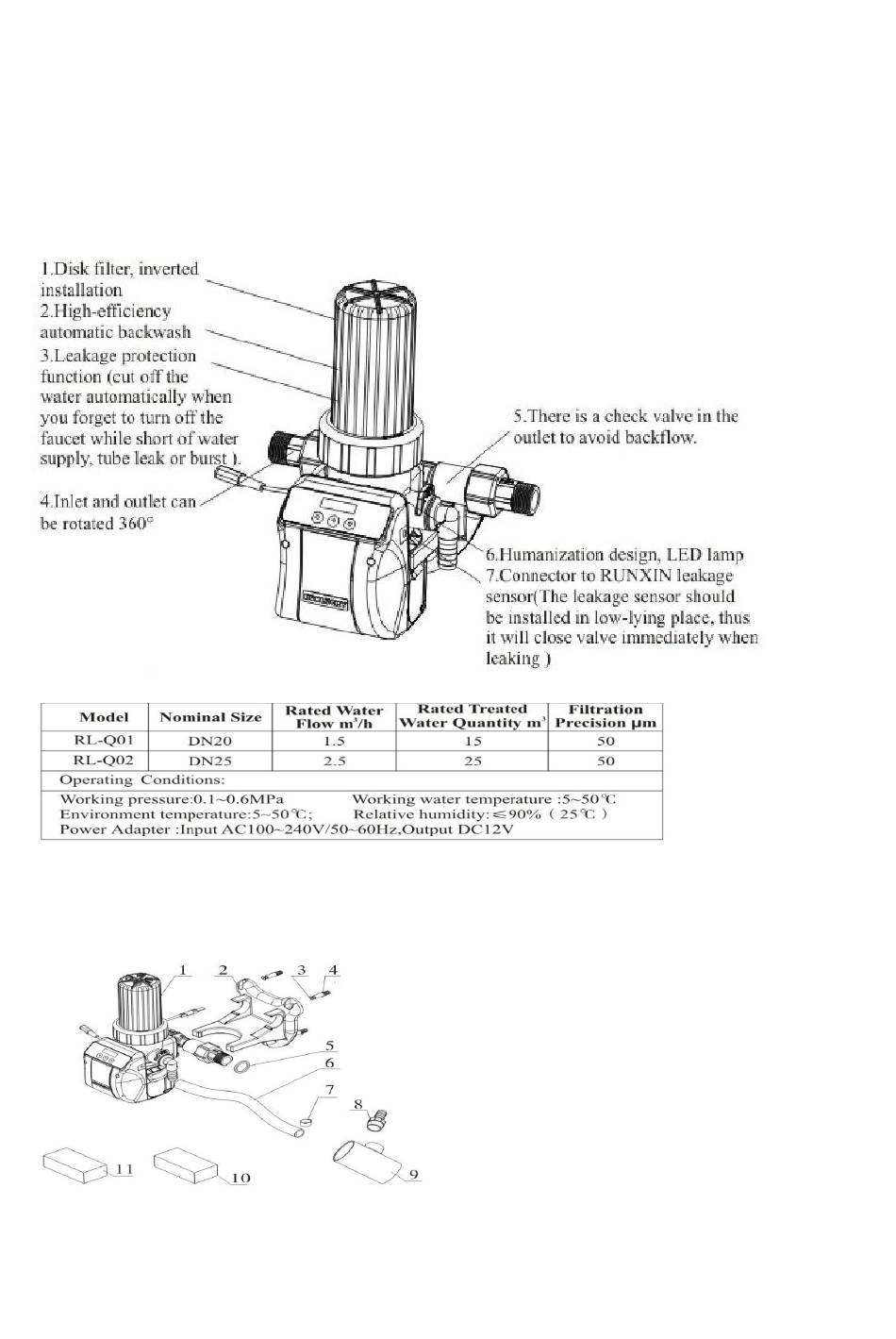

Used for filtering municipal water treatment. Coarse filtration. Can filter PM
larger than 0.05mm, for protecting the back water equipment. Suitable for
installation in house.
2. Product Characteristics
3. Technical Parameters
Note: Rated treated water quantity is related to raw water quality, the more grain particles
containing, the less water quantity will be.
4. Check the Spare Parts
When unpacking the product, please check below spare parts.
0WRX.466.671
Advertisement
Related Manuals for Runxin Runlucky RL-Q01
Summary of Contents for Runxin Runlucky RL-Q01
- Page 1 User Manual for High-efficiency Automatic Backwash Disk Prefilter 0WRX.466.671 1. Main Application Used for filtering municipal water treatment. Coarse filtration. Can filter PM larger than 0.05mm, for protecting the back water equipment. Suitable for installation in house. 2. Product Characteristics 3.
- Page 2 5. Product Appearance and Installation Dimensions Remark: M: male thread, all dimensions above are in mm. 6. Installation Notes 1. Installation conditions should conform to the requirements of the product work environment. 2. It should be installed after water meter, but in front of other equipment. 3.
- Page 3 7. Installation Step Before installation, be sure all these tools and materials listed below are ready: Electronic hand drill 1 piece (matching with Φ6 masonry drill and tile drill, each 1 piece), cross screwdriver 1 piece, hammer 1 piece, pipeline clamp several pieces, thread seal tape several pieces.
- Page 4 Without any key operation in one minute, interface will be locked. (Refer to Figure 2A) Press“ ” and “ ” at the same time for 5 seconds, the interface will be unlocked. 3. Manual function a) Manual backwash (backwash by manual operation when needed) In the status of unlock, figure“...
- Page 5 b) Set the water capacity(Figure 6A,6B,6C,6D,6E. Set the water capacity from 0.8m³ to 0.3 m³ .)When the water capacity reaches the set value, starts to backwash at next 2am.Set range: 0～20.0m³ . c) Set the closing time of continuous water supplying (Figure 7A, 7B, 7C, 7D, 7E.Set continuous water supplying time from 10 min to 20 min.)When the continuous outlet reaches the set value, may forget to turn off the faucet or occurs pipeline leakage, so the valve will cut off the water.
- Page 6 d) Set peak flow rate. (Figure 8A, 8B, 8C, 8D, 8E.Set peak flow rate from 20 L∕min to 10 L /min.)When the current flow rate is higher than setting rate, it will cut off water supplying. Set range10～90L/min. e) Set maximal interval regeneration days.(Figure 9A, 9B, 9C, 9D, 9E. Set the maximal interval regeneration days from 10 days to 15 days.)When the water supply days reach the setting value, it still will backwash at next 2am to avoid impurities blocked caused by nonwashing for a long time.
- Page 7 5. LED lamp (Refer to Figure 10) Touch any button, the LED lamp will light for 5 minutes. Without any operation in 5 minutes, the light will be off. 9. Maintenance (suggested once a year) Steps: After clean, repeated above steps backward to assemble all the parts and check its seal for later use.
- Page 8 Automatic Backwash Disk Prefilter. It is kept by clientitself, you could get the after-sales services from the supplier which is appointed by RUNXIN manufacturer. Please keep it properly. It couldn’t retrieved if lost. It couldn’t be repaired free of charge under the below conditions: 1.
- Page 9 4. Content in guarantee proof is unconfirmed with the label on the real good or be altered. 5. Damage resulting from force majeure. When product need warranty service, please fill the form and send this card together with the product to the appointed suppliers or RUNXIN Company.
