Summary of Contents for Runxin RL-R150

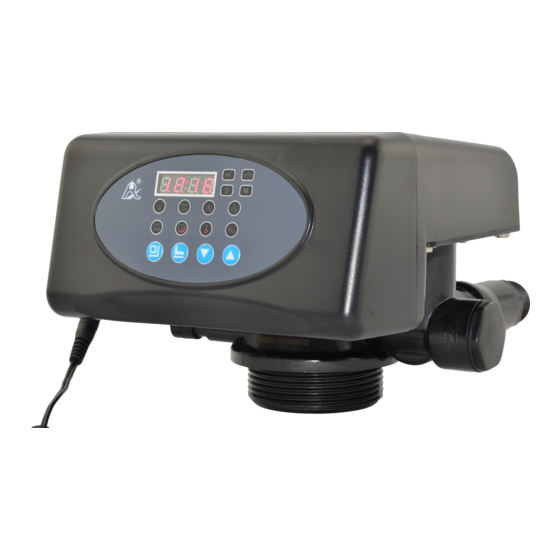

- Page 1 CABINET WATER SOFTENER RUNXIN VALVE PROGRAMMING PROCEDURE Models: Cabinet Softener: RL-R150 F69P3/F70BL – 74602 Page 1 of 12...
- Page 2 Valve Buttons Valve Configuration Page 2 of 12...
- Page 3 Model Time clock type: 73502P(F69P1) Meter type: 73602P(F69P3) Installation type Top-mounted Inlet/outlet 3/4" F Drain 1/2" M Brine line connector 3/8"M Base 2.5"-8NPSM Riser pipe 1.05"OD Resin Amount 28Lts Water treatment 2 m³/h capacity Tank diameter 10 x 35” Water pressure 0.15MPa～0.6MPa Water temperature 5℃～38℃...
-
Page 4: Button Operation
Button Operation Menu / Confirm Start Regeneration / Skip Regeneration Cycle / Return Down Valve Locked – Press & Simultaneously for 5 secs to unlock the screen Page 4 of 12... - Page 5 Control Valve Symbols Backwash Brine Draw Brine Refill Fast Rinse Settings Clock Days until Backwash Controller Locked Page 5 of 12...
-
Page 6: Water Softener Installation
Water softener Installation Softener Location It is important to Install the softener in a suitable place: • Preferably indoors. (if outdoors it is recommended to have the unit undercover or in a shed) • As close as possible for water connections, drain line not to be too far from the unit •... - Page 7 Initial Start Up • Connect power to the Controller and set up programming for the valve To Set Clock – Unlock Valve – Press Up & Down arrow together for 5 secs until you hear a beep. – Press the Menu Button. –...
- Page 8 How to change Regeneration Days Override – Unlock Valve – Press Up & Down arrow together for 5 secs until you hear a beep. – Press the Menu Button. – Press down arrow four times. – H-## will be on the screen. (This is the current setting for the days override –...
- Page 9 How to Change Regeneration Cycle Minutes Backwash – Unlock Valve – Press Up & Down arrow together for 5 secs until you hear a beep. – Press the Menu Button. – Press down arrow five times. – The hourglass and the backwash symbol will light up, press menu, the time will flash, press the up and down arrows to change to 8mins –...
- Page 10 Once the softener is programmed you can now start passing water through the unit • Fill the Cabinet brine tank with water approx. 25mm above the salt platform • Add at least two bags of salt to the platform • Put the softener into Regeneration – screen will display -00- this is the valve moving into the backwash cycle, once this has stopped the backwash symbol will be displayed and the minutes will start...
-
Page 11: Troubleshooting
Troubleshooting Problem Possible Cause Solution Filter Fails to a. Power to controller has a. Check power Backwash been interrupted connection is ok b. Backwash cycle times set b. Reset the backwash incorrectly cycle times c. Controller Damaged c. Check or replace controller Filter passing a. - Page 12 c. Transformer damaged d. Replace transformer d. Incorrect voltage with correct size No display on a. Wiring between the a. Check a replace cable controller display board and control b. Replace control board board failure c. Replace display board b. Control board is faulty d.
