Summary of Contents for Runxin RL-R150

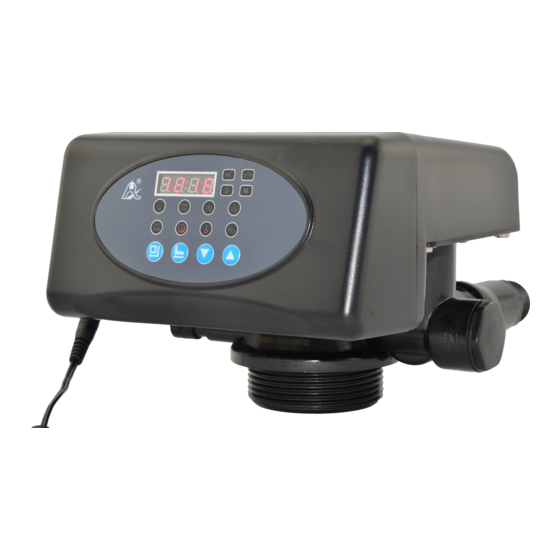

- Page 1 CABINET WATER SOFTENER RUNXIN VALVE PROGRAMMING PROCEDURE Models: Cabinet Softener: RL-R150 F69P3/F70BL – 74602 Web: www.pacificwater.com.au TEL: 07 3376 9009 FAX: +61 7 3374 4716 Page 1 of 12...
- Page 2 Valve Buttons Valve Configuration Web: www.pacificwater.com.au TEL: 07 3376 9009 FAX: +61 7 3374 4716 Page 2 of 12...
- Page 3 Model Time clock type: 73502P(F69P1) Meter type: 73602P(F69P3) Installation type Top-mounted Inlet/outlet 3/4" F Drain 1/2" M Brine line connector 3/8"M Base 2.5"-8NPSM Riser pipe 1.05"OD Resin Amount 28Lts Water treatment 2 m³/h capacity Tank diameter 10 x 35” Water pressure 0.15MPa～0.6MPa Water temperature 5℃～38℃...
-
Page 4: Button Operation
Button Operation Menu / Confirm Start Regeneration / Skip Regeneration Cycle / Return Down Valve Locked – Press & Simultaneously for 5 secs to unlock the screen Web: www.pacificwater.com.au TEL: 07 3376 9009 FAX: +61 7 3374 4716 Page 4 of 12... - Page 5 Control Valve Symbols Backwash Brine Draw Brine Refill Fast Rinse Settings Clock Days until Backwash Controller Locked Web: www.pacificwater.com.au TEL: 07 3376 9009 FAX: +61 7 3374 4716 Page 5 of 12...
-
Page 6: Water Softener Installation
Water softener Installation Softener Location It is important to Install the softener in a suitable place: • Preferably indoors. (If outdoors it is recommended to have the unit undercover or in a shed) • As close as possible for water connections, drain line not to be too far from the unit •... - Page 7 Initial Start Up • Connect power to the Controller and set up the programming of the valve To Set Clock – Unlock Valve – Press Up & Down arrow together for 5 secs until you hear a beep. – Press the Menu Button. –...
- Page 8 Set Water softener Capacity – From the F-00 setting press the down arrow an hourglass and a m³ symbol will light up – Press Menu Button – The digits will then flash, change the number to the amount of capacity estimated for the ion exchange process in litres the softener will produce eg: Feed hardness...
- Page 9 Brine Refill 4-## – Once Brine Draw is set, Press down – The Brine Refill symbol , spanner & M will be lit up, press menu, the time will flash, press the up and down arrows to change to 12mins –...
- Page 10 Once the softener is programmed you can now start passing water through the unit • Fill the Cabinet brine tank with water approx. 25mm above the salt platform • Add at least two bags of salt to the platform • Put the softener into Regeneration – screen will display -00- this is the valve moving into the backwash cycle, once this has stopped the backwash symbol will be displayed and the minutes will start...
-
Page 11: Troubleshooting
Troubleshooting Problem Possible Cause Solution Filter Fails to a. Power to controller has a. Check power Backwash been interrupted connection is ok b. Backwash cycle times set b. Reset the backwash incorrectly cycle times c. Controller Damaged c. Check or replace controller Filter passing a. - Page 12 All indicators a. Wiring between the a. Check a replace cable display on the display board and control b. Replace control board controller board failure c. Check or replace b. Control board is faulty transformer c. Transformer damaged d. Replace transformer d.
