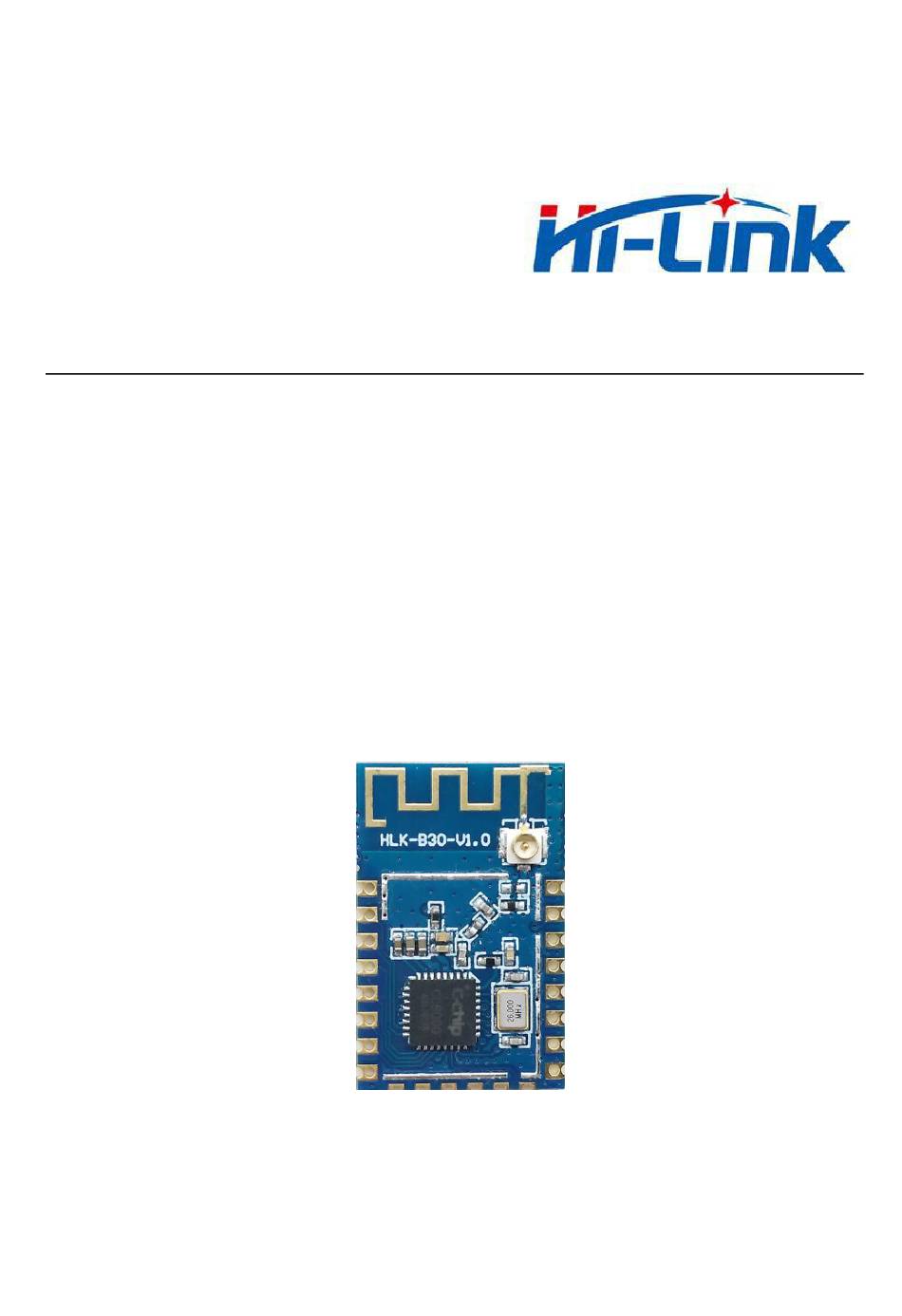

- Page 1 Shenzhen Hi-Link Electronic Co., Ltd. HLK-B30 User Manual 802.11n+BLE 4.2 wireless module...
-
Page 2: Table Of Contents
Contents 1. Product description............................1 1.1. Basic parameters..........................1 2. Main application areas..........................1 3. Product Overview............................2 3.1. Technical specifications........................2 3.2. Hardware description......................... 3 3.3. Block diagram............................ 3 3.4. Power supply requirements........................4 3.5. WIFI transmission power consumption..................... 4 3.6. WIFI Receive power consumption....................4 3.7. -
Page 3: Product Description
Manual 1. Product description HLK-B30 is a new low-consumption wifi control module from Hi-Link Electronics. The module has built-in wifi network protocol and BLE Bluetooth protocol stack, which can realize fast distribution network through BLE. The module is embedded with a low-power 32-bit CPU, 2Mbyte memory, 256KB RAM and a wealth of peripheral resources. -
Page 4: Product Overview
HLK-B30 Shenzhen Hi-Link Electronic Co., Ltd. Manual 3. Product Overview 3.1. Technical specifications Table 2-1 Product technical specifications Wireless standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Network standard Bluetooth standard: BLE 4.2 11n: up to 150Mbps Wireless transmission rate 11g: up to 54Mbps... -
Page 5: Hardware Description

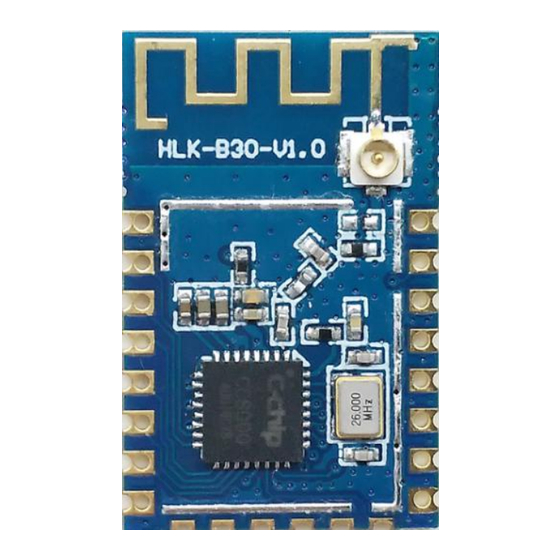

HLK-B30 Shenzhen Hi-Link Electronic Co., Ltd. Manual 3.2. Hardware description HLK-B30 dimension as below: (L*W)=16mm*25mm Figure 1 HLK-B30 Dimension 3.3. Block diagram 3.3V 26MH UART HLK-B30 1 IPEX Connector GPIO RAM(2MB) Figure 2 HLK-B30 Module architecture diagram 3/10... -
Page 6: Power Supply Requirements
HLK-B30 Shenzhen Hi-Link Electronic Co., Ltd. Manual 3.4. Power supply requirements Power supply requirements Power input voltage DC:3.3±0.3V No-load operating current 130±50mA Supply current requirement ≥1000mA 3.5. WIFI transmission power consumption Wifi transmission power consumption Mode Rate Transmit power Current(ma) 11Mbps 17.5dbm... -
Page 7: Output Power In Each Mode Of Wifi
HLK-B30 Shenzhen Hi-Link Electronic Co., Ltd. Manual 3.8. Output power in each mode of WIFI Parameter Minimum value Typical value Maximum value Unit RF average output power, 802.11b cck Mode 17.5 RF average output power, 802.11g OFDM Mode 54m RF average output power, 802.11n OFDM... -
Page 8: Test Board Description
Manual 4. Test board description The test board is mainly used to demonstrate the functions of the HLK-B30 module's lanterns, sockets and lights. Use the test board to demonstrate remote switch LEDs, color changes, brightness changes, relay switch lights, etc. -
Page 9: Using The App Distribution Network
Manual 4.3. Using the app distribution network Open the cloud smart app and open the distribution interface, as shown below: HLK-B30 APP Distribution network interface Figure 4 Then click Next to enter the distribution interface: HLK-B30 Distribution network in progress... -
Page 10: Using The Tmall Elf Distribution Network
HLK-B30 Shenzhen Hi-Link Electronic Co., Ltd. Manual After the distribution network is successfully connected, the app will automatically enter the control interface directly: HLK-B30 Distribution network completed Figure 6 4.4. Using the Tmall Elf distribution network Before using the Tmall Elf to configure the network, you need to let the module enter the distribution mode, then say "Tmall Elf, find device"... - Page 11 HLK-B30 Shenzhen Hi-Link Electronic Co., Ltd. Manual 9/10...
-
Page 12: Appendix A Document Revision History
HLK-B30 Shenzhen Hi-Link Electronic Co., Ltd. Manual Appendix A Document Revision History Version Revision Date number Scope 1.00 2019-4-15 10/10... - Page 13 2.2 List of applicable FCC rules FCC Part 15.247 2.6 RF exposure considerations This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
- Page 14 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
