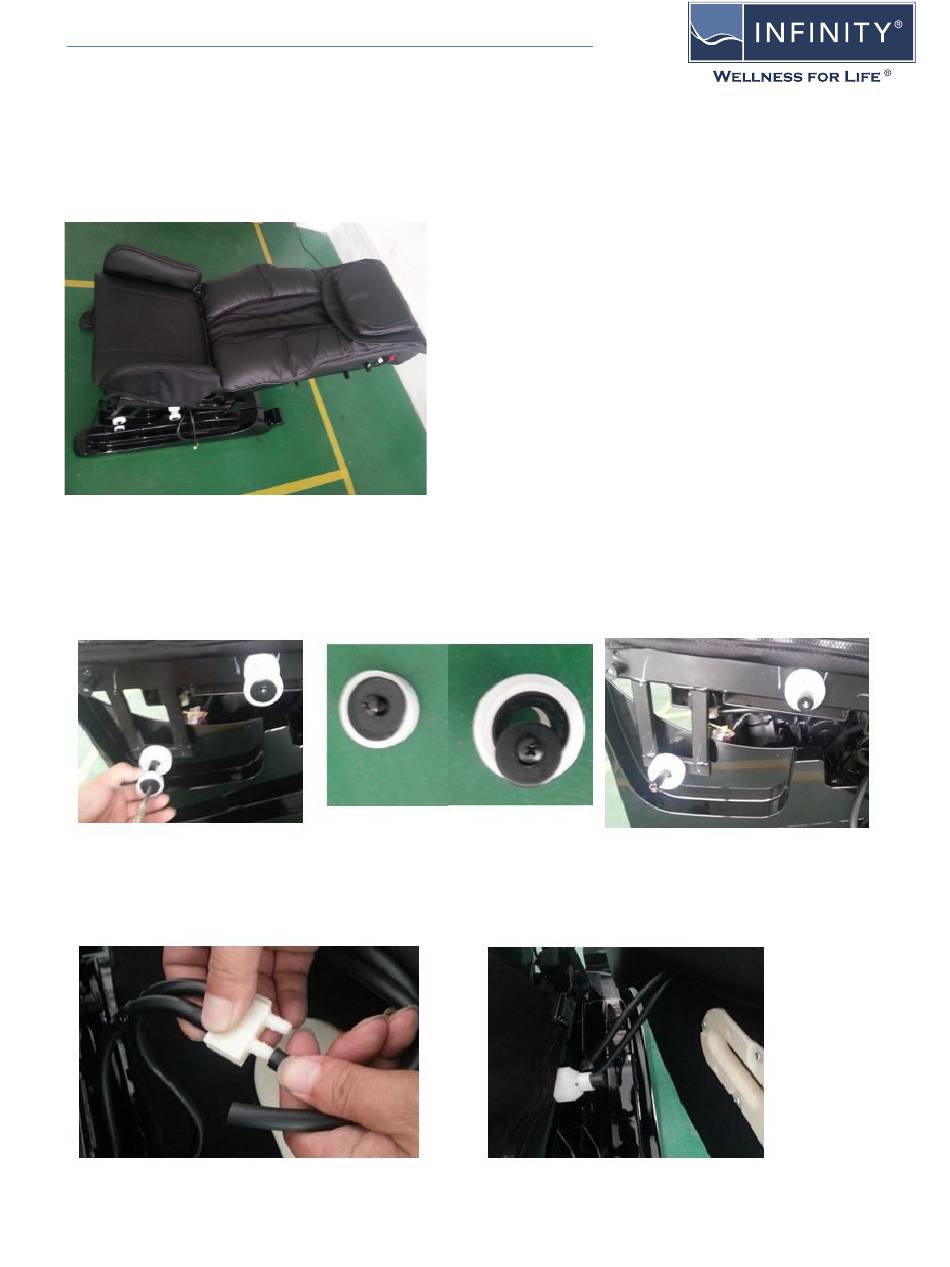

Smart Chair Installation Guide
A: A
:
TTACHING THE ARMRESTS
O
PEN THE MAIN BOX AND PLACE THE CHAIR BODY ON THE FLOOR AS SHOWN
U
NSCREW THE (2) SETS OF SCREW/BOLTS FROM THE LEFT SIDE OF THE MAIN CHAIR BODY (BLACK SCREWS +
WHITE PLASTICS)
C
ONNECT THE LEFT AIR HOSE CONNECTOR WITH THE BLACK AIR HOSES FROM THE LEFT ARMREST (MATCH
THE NUMBERS ON THE HOSES) AND PUT THE HOSES UNDER THE MAIN BODY
