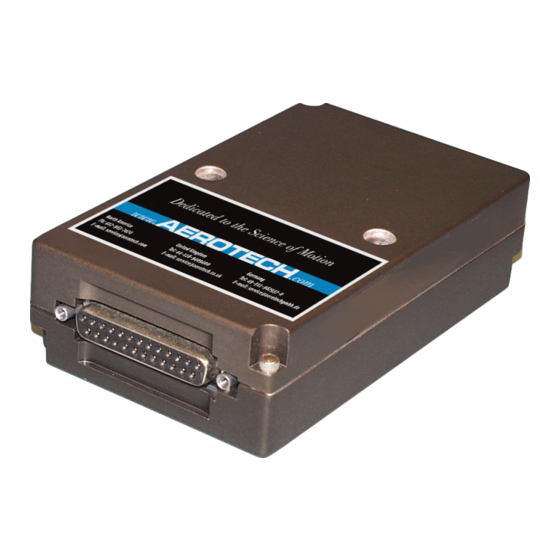

Page 1: Mxh Multiplier Boardhardware Manual
MXH Multiplier Board Hardware Manual Revision: 1.08.00... - Page 2 This manual contains proprietary information and may not be reproduced, disclosed, or used in whole or in part without the express written permission of Aerotech, Inc. Product names mentioned herein are used for identification purposes only and may be trademarks of their respective companies.
-
Page 3: Table Of Contents
1.4.6. Connectors (J1 and J2) 1.4.7. Potentiometers 1.4.8. Output Options 1.5. Output Pulse Clock Speed 1.6. MXH Multiplier Board Specifications 1.6.1. Electrical Specifications 1.7. Dimensions Chapter 2: MXH Multiplier Board (Rev A/Obsolete) Appendix A: Warranty and Field Service Appendix B: Revision History Index www.aerotech.com... -
Page 4: List Of Figures
MXH Option -2 (Sine & Cosine Differential Square Wave Output) Figure 1-15: MXH Option -3 (Sine, Cosine, and Marker Differential Square Wave Output) Figure 1-16: MXH Multiplier Dimensions Figure 2-1: MXH Multiplier Board Hardware Locations (REV A/Obsolete) Figure 2-2: MXH Multiplier Dimensions (REV A/Obsolete) www.aerotech.com... -
Page 5: List Of Tables
Pinouts for Connector J1 Table 1-6: Pinouts for Connector J2 Table 1-7: MXH Cable Options Table 1-8: MXH Multiplier Board Potentiometers Table 1-9: Digital Differential Factory Options Table 1-10: MXH Multiplier Board Models and Specifications Table 1-11: MXH Multiplier Board Electrical Specifications www.aerotech.com... - Page 6 MXH Multiplier Option Manual Table of Contents This page intentionally left blank. www.aerotech.com...
-
Page 7: Eu Declaration Of Conformity
Declaration of Conformity MXH Multiplier Option Manual EU Declaration of Conformity Manufacturer Aerotech, Inc. Address 101 Zeta Drive Pittsburgh, PA 15238-2811 Product MXH Encoder Multiplier Box Model/Types This is to certify that the aforementioned product is in accordance with the applicable requirements of the... - Page 8 MXH Multiplier Option Manual Declaration of Conformity This page intentionally left blank. www.aerotech.com...
-
Page 9: Chapter 1: Mxh Multiplier Board
For example, with a resolution as fine as 8 nm, speeds of over 250 mm/s are achievable. Aerotech's Dedication to the Science of Motion is reflected in some of the unique features of the MXH series. Not only does the MXH boast industry-leading data rates, but for atypical resolution requirements, Aerotech can create custom multiplication factors. -
Page 10: Figure 1-2: Mxh Multiplier Board Configuration
Note: MXH multipliers are available in -A and -B versions as factory supplied configurations. Multiplication selections are possible in 0.25 increments up to MXH256, which multiplies into an integer after x4 (i.e. 0.25 or 0.5, 1.25, 33, etc. Unacceptable values are 1.7, 2.4, etc.). From MXH256 to MXH512, multiplication selections are possible in x1.0 increments. Chapter 1 www.aerotech.com... -
Page 11: Multiplier Signals
2. At high speeds, a chirping noise can be heard when the table is accelerating and decelerating. 3. Using Aerotech’s application software as a diagnostic tool, a harmonic or a sub-harmonic of the fundamental encoder frequency may be seen in the position error or velocity error plots of the axis scope window. -
Page 12: Adjustment Procedure
SIN-N & COS-N Sweep Display No Phase, Gain or Offset Error SIN-N & COS-N Lissajou Display No Phase, Gain, or Offset Error SIN-N SIN-N COS-N COS-N 0.5 VOLT/DIVISION 0.1 MILLISECOND/DIVISION 0.5 VOLT/DIVISION Figure 1-4: Ideal Oscilloscope Displays (Sweep and Lissajou) Chapter 1 www.aerotech.com... -
Page 13: Figure 1-5: Not-Optimum Oscilloscope Lissajou Displays
SIN-N & COS-N Lissajou Display Showing Phase Error of + 9º SIN-N & COS-N Lissajou Display Showing Phase Error of - 9º + 9 DEGREE PHASE ERROR 0.5 VOLT/DIVISION 0.5 VOLT/DIVISION -9 DEGREE PHASE ERROR Figure 1-5: Not-Optimum Oscilloscope Lissajou Displays www.aerotech.com Chapter 1... -
Page 14: Figure 1-6: Mxh Multiplier Board Hardware Locations
≤ 2.5% of Signal Amplitude (Vp-p) ≤ 5.0% of Signal Amplitude (Vp-p) Phase Error ≤ 4.5 º ≤ 9.0 º J3 F.S. EZ1086CT 32 MHz Female Male 690C1543 Rev. C Figure 1-6: MXH Multiplier Board Hardware Locations Chapter 1 www.aerotech.com... -
Page 15: Hardware Configurations
The default setting (jumper in) of the reset circuitry jumper (JP5) resets the board if a fault is detected. The faults that can occur are a loss of 5V, loss of clock signal, and low input signal magnitudes. www.aerotech.com Chapter 1... -
Page 16: Pulse Width Jumpers (Jp2 And Jp3)
Amplified input cosine wave (0 - 5V) TP11 A/D sample clock TP12 TP13 TP14 M14 Flash reset TP15 M13 Flash reset TP16 Flash Ready/Busy signal TP17 Output marker, square wave TP18 Output sine, square wave TP19 Output cosine, square wave Chapter 1 www.aerotech.com... -
Page 17: Connectors (J1 And J2)
Output option dependent (refer to Section 1.4.8. Figure 1-12 through Figure 1- 15). CCW Limit Directly connected to J2, pin 24. 10K pull-up attached. Output option dependent (refer to Section 1.4.8. Figure 1-12 through Figure 1- 15). www.aerotech.com Chapter 1... -
Page 18: Table 1-6: Pinouts For Connector J2
MXH to controller cable BFCMX-xx MXH to motor or controller cable DC-DDMX-xx ADR to MX box feedback cable DC-MSOMX-xx DC Brush Motor to MXH cable PFCMX-xx MXH to (controller) flying lead cable “xx” is the available length in feet Chapter 1 www.aerotech.com... -
Page 19: Figure 1-7: Mxh Encoder Cable Pinouts
COSINE – TWIST MARKER – MARKER – MARKER + MARKER + TWIST COMMON COMMON TWIST COMMON INNER SHIELD Note: Maximum Cable Length Is 10 Meters Twisted Pairs Are 1-4 Turns / Inch Figure 1-7: MXH Encoder Cable Pinouts www.aerotech.com Chapter 1... -
Page 20: Potentiometers
Differential square wave sine / cosine multiplied signals (standard) Differential square wave output of un-multiplied sine signal Differential square wave output of un-multiplied sine and cosine signals Differential square wave output of un-multiplied sine, cosine and marker (unqualified) signals. Chapter 1 www.aerotech.com... -
Page 21: Output Pulse Clock Speed
1 count 2 counts 3 counts 4 counts 5 counts 6 counts 7 counts 8 counts 9 counts 10 counts 11 counts 12 counts 13 counts 14 counts 15 counts 16 counts Figure 1-8: 32 MHz Count Spacing www.aerotech.com Chapter 1... - Page 22 .5 µs period with the clock set to 4 MHz. Two counts per .5 µ second sample period generates the maximum of 4 million counts per second. .5 µ Second 4 MHz 1 count 2 counts Figure 1-11: 4 MHz Count Spacing Chapter 1 www.aerotech.com...
-
Page 23: Mxh Multiplier Board Specifications
MXH Multiplier Board Electrical Specifications Parameters Values Output Signal Square Wave, RS--422, TTL-Compatible Power Supply 4.75 V (min) – 5.25 V (max) Current Consumption No Terminators on Controller 250 mA (w/o encoder) 180 ohm Terminators on Controller 320 mA www.aerotech.com Chapter 1... -
Page 24: Figure 1-12: Mxh General Configuration (No Output Option Selected)
VREF GAIN OFFSET SIN+ Multiplier SIN- VREF PHASE VREF +5VA OFFSET GAIN TP10 COS+ Multiplier COS- VREF MKR+ TP17 Marker MKR- Qualification VREF JP4* * See Section 1.4.2. Figure 1-12: MXH General Configuration (No Output Option Selected) Chapter 1 www.aerotech.com... -
Page 25: Figure 1-13: Mxh Option -1 (Sine Differential Square Wave Output)
AM26LS31 SIN+ VREF SIN- VREF Multiplier PHASE VREF +5VA OFFSET GAIN TP10 COS+ Multiplier COS- VREF MKR+ TP17 Marker MKR- Qualification VREF JP4* * See Section 1.4.2. Figure 1-13: MXH Option -1 (Sine Differential Square Wave Output) www.aerotech.com Chapter 1... -
Page 26: Figure 1-14: Mxh Option -2 (Sine & Cosine Differential Square Wave Output)
VREF Multiplier PHASE VREF +5VA Multiplier OFFSET GAIN AM26LS31 TP10 COS+ VREF COS- VREF MKR+ TP17 Marker MKR- Qualification VREF JP4* * See Section 1.4.2. Figure 1-14: MXH Option -2 (Sine & Cosine Differential Square Wave Output) Chapter 1 www.aerotech.com... -
Page 27: Figure 1-15: Mxh Option -3 (Sine, Cosine, And Marker Differential Square Wave Output)
Multiplier PHASE VREF +5VA Multiplier OFFSET GAIN AM26LS31 TP10 COS+ VREF COS- VREF MKR+ TP17 Marker MKR- Qualification VREF JP4* * See Section 1.4.2. Figure 1-15: MXH Option -3 (Sine, Cosine, and Marker Differential Square Wave Output) www.aerotech.com Chapter 1... -
Page 28: Dimensions
HIGH LIP PC BOARD 4 - 40 x 3/8“ .196 DIA THRU HOLE SOC HD CAP .302 DIA C’BORE X .24DP 2 PLACES AEROTECH LABEL MIA00423 MULTIPLICATION FACTOR ENCODER CODE 4 - 40 X 5/16” DATA RATE PHILLIPS #4 STARWASHER (TYP 4 PLS) 16.0... -
Page 29: Chapter 2: Mxh Multiplier Board (Rev A/Obsolete)
Rev A/Obsolete MXH Multiplier Option Manual Chapter 2: MXH Multiplier Board (Rev A/Obsolete) NOTE: Rev A is obsolete. Figure 2-1: MXH Multiplier Board Hardware Locations (REV A/Obsolete) www.aerotech.com Chapter... -
Page 30: Figure 2-2: Mxh Multiplier Dimensions (Rev A/Obsolete)
DIA. C’BORE X .24 DP 2 PLACES 1.25 MODEL: A E R O T E C H 0.63 Zeta Drive LOT: Pittsburgh, PA 15238 (412) 963-7470 4.58 4.69 2.77 SERIAL NO. VIEW C-C Figure 2-2: MXH Multiplier Dimensions (REV A/Obsolete) Chapter www.aerotech.com... -
Page 31: Appendix A: Warranty And Field Service
Aerotech makes no warranty that its products are fit for the use or purpose to which they may be put by the buyer, where or not such use or purpose has been... - Page 32 Aerotech will provide an on-site field service representative in a reasonable amount of time, provided that the customer issues a valid purchase order to Aerotech covering all transportation and subsistence costs. For warranty field repairs, the customer will not be charged for the cost of labor and material.
-
Page 33: Appendix B: Revision History
Revision History MXH Multiplier Option Manual Appendix B: Revision History Rev # Description 1.08.00 Added: EU Declaration of Conformity 1.07.00 General manual update www.aerotech.com Appendix B... - Page 34 MXH Multiplier Option Manual Revision History This page intentionally left blank. Appendix B www.aerotech.com...
-
