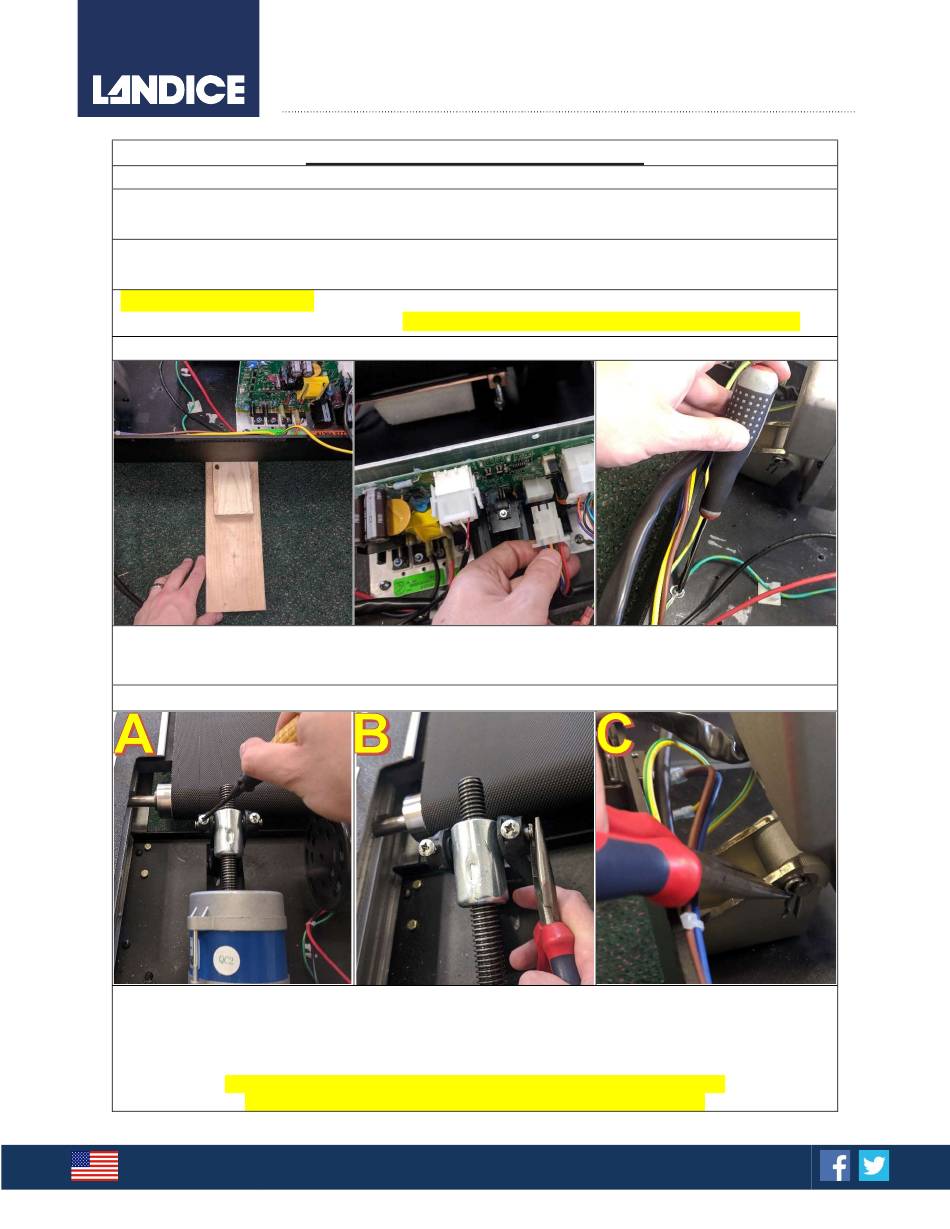

INTRODUCTION: This document is to be used for installation, removal and calibration of the
MSI Elevation Motor (#70088) for the Landice L-Series treadmills.
TOOLS REQUIRED: Phillips Head Screwdriver, Needle-Nose Pliers, Elevation Pot Key, Rubber
Mallet (optional)
BEFORE YOU BEGIN:
source while replacing the motor. NEVER carry the elevation motor by the harness.
Begin by using a block of wood or something sturdy that can be propped underneath the motor pan.
You will then power down the unit, and unplug from the power source. Next, locate the elevation
harness and unplug from the lower board. Finally, use your screwdriver to remove the grounding wire.
Using your screwdriver, remove both screws as shown in Figure A. Next, use your needle nose pliers
to remove the two elevation pins connecting the nut to the elevation legs. Now use the pliers to
remove the clevis pin, as well as the clevis bolt. A rubber mallet will help you replace the clevis bolt.
You should now be able to completely remove the elevation motor from the unit. To re-install, follow
the directions in reverse. Proceed to the next page for Calibration Instructions.
L7 ELEVATION NUT PLACEMENT - FLUSH WITH THE WORMSHAFT
L8 ELEVATION NUT PLACEMENT - WORMSHAFT 3 TURNS IN
1 800 - LANDICE | SERVICE@LANDICE.COM | WWW.LANDICE.COM
LANDICE, INC.
111 CANFIELD AVE., SUITE A-1
RANDOLPH, NJ 07869
MSI Elevation Motor Instructions
Landice L-Series Treadmill
This is a High-Voltage Unit!
Step 1
Step 2
PHONE: (973) 927-9010
FAX: (973) 927-0630
SERVICE@LANDICE.COM
Please unplug from power
