Summary of Contents for PRESIDIUM SAM

  • Page 1: Table Of Contents

    05 IV. IMPORTANT NOTICE pg. 07 1. GETTING STARTED with your SAM pg. 08 2. PERFORMING A TEST with your SAM pg. 12 3. READING TEST RESULTS on your SAM pg. 15 4. TAKING CARE of your SAM pg. 16...

  • Page 2: Disclaimers, Exclusions And Limitations Of Liability

    APPLICABLE LAW, under no circumstances shall Presidium, manufacturer subsidiaries, licensors, distributors, reseller, servant and/or agent be responsible for any special, incidental, consequential or indirect damages howsoever caused. The tester or SAM referred to in this handbook provided and/or sold “as is”...

  • Page 3: About This Book

    II. About this book Thank you for purchasing SAM. This handbook is designed to help you set up your tester and describes all you need to know about how to use your tester accurately and take care of it in line with its requirements.

  • Page 4: About Sam By Presidium

    III. About SAM by Presidium SAM has been developed upon existing thermal and electrical conductivity technology with addition of technologically advanced circuitries as well as a highly sensitive thermoelectric probe for distinction between colorless diamonds against a wider range of moissanites.

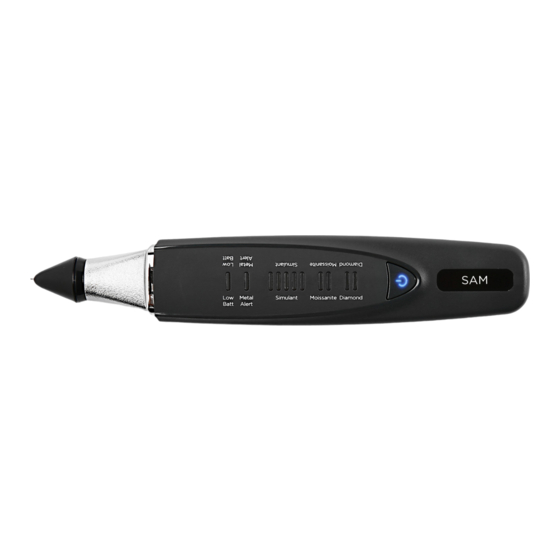

  • Page 5 Included in your package: • • Metal stone rest • Protective carrying case Probe Protective Cap Retractable Probe 360° Textured Metal Plated Ergonomic Grip Display with LED Illumination Power button and ‘Ready’ Display Adaptor Inlet Battery Compartment (beneath the lid with Presidium wording)

  • Page 6: Important Notice

    • Do not paint the tester. Paint can clog the moving parts and prevent proper operation. If the tester is not working properly, kindly contact Presidium Customer Service at service@presidium.com. sg or: Presidium Instruments Pte Ltd Unit 7, 207 Henderson Road...

  • Page 7: Getting Started With Your Sam

    1. GETTING STARTED with your SAM Powering up your SAM This tester can be powered by either the use of an AC adaptor (optional item sold separately) or through the use of batteries. If AC adaptor is used, connect one end of the AC adaptor to the tester (Fig.
  • Page 8 Turning on your SAM Remove the protective cover from the tester. For first time use, please remove the plastic cap from the probe tip. (Fig.1.4). Fig. 1.4 Press the Power button located at the lower end of the device. (Fig. 1.5). Wait for approximately 10 seconds to warm up to the predetermined tip temperature.
  • Page 9 Recommended testing conditions Cleaning your gemstone prior to testing Prepare a clean tissue or jewelry cloth. Carefully retrieve the gemstone with tweezers and place the gemstone face down on its table facet (Fig. 1.7). Fig. 1.7 Gently rub the table of gemstone against the tissue/ jewelry cloth (Fig.
  • Page 10 Self-calibration should not be attempted. To minimize any risks associated, user should contact Presidium at service@presidium.com.sg or its service center for assistance. In the event that users require the...

  • Page 11: Performing A Test With Your Sam

    2. PERFORMING A TEST with your SAM Depress the tip of the probe pen against the gemstone. Ensure the tip is fully depressed for consistent pressure between the tip and gemstone for correct reading. For mounted jewelry or gemstones: Hold the jewelry or gemstone with one hand and the tester with the other hand (Fig.
  • Page 12 Tips for using your SAM The electrical conductivity of the new low electrical conductivity moissanite may differ across various points and vary from stone to stone. It is therefore advisable to perform more tests on different points across the surface of the suspected gemstones.
  • Page 13 Cleaning the probe tip Please note that if the tester is being used for the first time, or if the tester has not been used for a week, it is advisable to clean the probe tip using a piece of paper to attain a consistent and accurate reading.

  • Page 14: Reading Test Results On Your Sam

    • Gemstone with low thermal conductivity such as glass or cubic zirconia will not give any reading on the tester. Note: For stones with lower thermal inertia, the Presidium Gem Tester / Color Stone Estimator (PGT/ CSE), the Presidium Duo Tester (PDT) or the Presidium Gem Indicator (PGI) can be used to further differentiate the type of simulants as they detect a wider simulant range.

  • Page 15: Taking Care Of Your Sam

    4. TAKING CARE of your SAM • The probe and wire tip are extremely sensitive and should be handled with care, especially during the removal of the protective cap from the pen tip. Always replace the protective cap of the pen tip when the probe is not in use.
