Lenze EZAEVA Series Mounting Instructions
Lenze EZAEVA Series Mounting Instructions

Lenze EZAEVA Series Mounting Instructions

Master frequency distributor

Advertisement

Quick Links

EDKZAEVA00X
.I*w
EZAEVA
EZAEVA001, EZAEVA002
Leitfrequenzverteiler
Master frequency distributor
Répartiteur de fréquence maître
Distribuidor de frecuencia master
Distributore frequenza pilota
Montageanleitung
Mounting Instructions
Instructions de montage
Instrucciones para el montaje
Istruzioni per il montaggio
l

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZAEVA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lenze EZAEVA Series

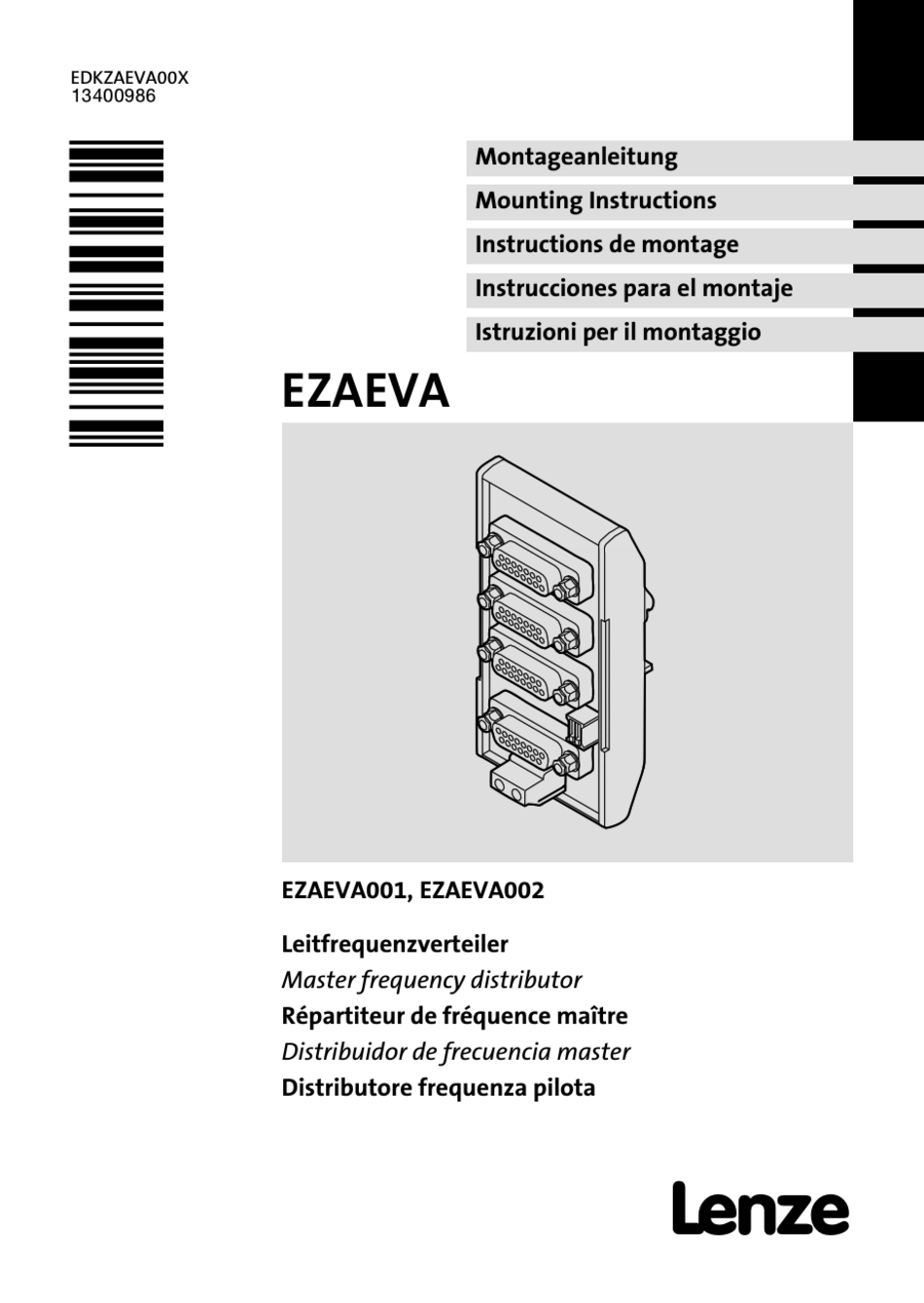

  • Page 1 EDKZAEVA00X .I*w Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio EZAEVA EZAEVA001, EZAEVA002 Leitfrequenzverteiler Master frequency distributor Répartiteur de fréquence maître Distribuidor de frecuencia master Distributore frequenza pilota...
  • Page 2 Lesen Sie zuerst diese Anleitung und die Dokumentation zum Grundgerät, bevor Sie mit den Arbeiten beginnen! Beachten Sie die enthaltenen Sicherheitshinweise. Please read these instructions and the documentation of the standard device before you start working! Observe the safety instructions given therein! Lire le présent fascicule et la documentation relative à...
  • Page 3 EZAEVA_004 [mm] [mm] [mm] [mm] [mm] EZAEVA001 56.5 111.0 50.0 70.0 42.5 EZAEVA002 EDKZAEVA00X DE/EN/FR/ES/IT 1.0...
  • Page 4 EZAEVA_002 EZAEVA_003 EDKZAEVA00X DE/EN/FR/ES/IT 1.0...
  • Page 5 EZAEVA001 Slave Slave Slave Master EZAEVA001 EZAEVA_001d EDKZAEVA00X DE/EN/FR/ES/IT 1.0...
  • Page 6 EZAEVA002 Slave Slave|Master Slave|Master Master EZAEVA002 EZAEVA_001c EDKZAEVA00X DE/EN/FR/ES/IT 1.0...
  • Page 7 Master Slave 8400 TopLine 8400 TopLine 8400 TopLine 9400 S104 à X1 5Vss l 1 + l 2 < 50 m V CC S104 EZAEVA_001a EDKZAEVA00X DE/EN/FR/ES/IT 1.0...
  • Page 8 Slave Master 8400 TopLine 8400 TopLine 9400 Encoder S104 à X1 5Vss l 1 + l 2 < 50 m V CC S104 EZAEVA_001b EDKZAEVA00X DE/EN/FR/ES/IT 1.0...
  • Page 12 © 04/2012 Lenze Automation GmbH Service Lenze Service GmbH Hans−Lenze−Str. 1 Breslauer Straße 3 D−31855 Aerzen D−32699 Extertal Germany Germany +49 (0)51 54 / 82−0 00 80 00 / 24 4 68 77 (24 h helpline) Ê Ê +49 (0)51 54 / 82 − 28 00 +49 (0)51 54 / 82−11 12...
