Summary of Contents for goxtreme MANTA 4K
-
Page 2: Microsd Card
IMPORTANT INFORMATION To ensure the optimal operation of your camera, please note the following important information: MicroSD card • Please ensure your memory card is formatted in the camera before using the card for the first time (Settings > Format). Before formatting, make sure that all the files in your memory card have been backed up as formatted and erased files can not be restored. - Page 3 Charging • Ensure the camera is charged completely before first use. • Keep the device away from children while charging. • Ensure the camera is switched off when charging. If the camera turns on automatically when connected to a power source please turn it off to complete charging.
-
Page 4: Safety Instructions
Safety instructions WARNING: The camera is not suitable for children under 36 months because of choking hazard. WARNING: Always protect your camera from falls, blows and bumps. • Keep a sufficient distance from objects that generate strong magnetic fields or radio waves, such as electrical appliances to prevent them from damaging the product or affecting the sound and image quality. -

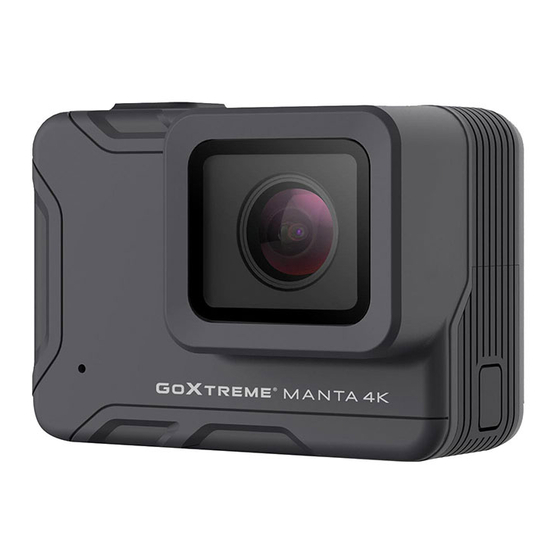

Page 5: Camera Description
CAMERA DESCRIPTION Shutter / Select Button Power / Mode Button Lens Microphone... - Page 6 Indicator light Shutter/ Power/ Select Button Mode Button Speaker HDMI & USB Type C Touch screen Micro SD Card Slot Slot Battery Cover Press and hold the button on the cover. Then slide the cover to open.
-
Page 7: Camera Operation
CAMERA OPERATION Installing and removing battery 1. Correctly install the battery into the camera as suggested by the ‘pins’ in the battery compartment and ‘slots’ in the battery itself. 2. For battery power: Please refer to the symbol: Full power mode “ ”... -
Page 8: Power On/Off
Power on/off Press and hold power button for 3-5 seconds to turn the camera on/off. Video and Photo mode switching There are 2 options to switch between video and photo modes: 1. To select your video or photo mode, short press the power/mode button. Tap your preferred mode to enter. - Page 9 Video/Photo General Settings Menu While in either video or photo standby mode, click setup icon , to enter the video/photo settings interface.
- Page 10 Video Mode After the camera is powered on, the camera's default mode is video standby mode. The last used video function mode will also be active. Tapping the video settings button will allow you to change the current resolution and other video settings. Pressing the "shutter / select"...
- Page 11 Slow Motion Enter the function mode menu and tap the "Slow Motion" mode icon. When selected, the camera will return to the video preview screen automatically. Tap the “Settings” icon and tap the "Video Resolution" option to select the slow motion resolution. Photo Mode There are 2 options to enter the Photo Mode: 1.
-
Page 12: Control Shortcuts
Photo Burst Enter the function mode menu and tap the "Photo Burst" mode icon. When selected the camera will return to the Photo preview screen automatically. Click the “Settings” icon to enter the photo settings menu and tap "Burst Settings" to select the number of burst photos per shutter press. - Page 13 WIFI Connection Before using the WIFI Control function, please install the YUTUPro APP on your smartphone or tablet. Please note that wireless transfer of files using the app is not possible for video with resolution higher than 1080p. Files using any resolution higher then 1080p can only be accessed via your computer using a card reader.
- Page 14 Step 2. On your smartphone/tablet: • Open the WiFi settings on your mobile phone to search for the camera device: Manta_xxxxxx from the available wireless networks. The password to complete the connection is 12345678. • Exit your WiFi settings menu on your smartphone and open the YUTUPRO APP. •...
-
Page 15: Technical Specifications
Note: Should the camera crash for any reason, please reset the camera by removing and re-installing the battery. TECHNICAL SPECIFICATIONS Type CMOS 12MP Image Sensor Effective Pixels Approx. 12 Mega Pixels LCD Display 2.0”/ 5cm Touchscreen Focusing Type Fixed Control Programmed AE Exposure Auto, 100, 200, 400, 800, 1600... - Page 16 Stabilization Minimizes small movements that On/Off traditional tech can’t detect. No internal memory External memory: supports Memory Micro SD Cards up to 64GB (U3) HDMI OUT Supports 4K 12M (4000x3000) 8M (3840x2160) Image Size 5M (2560x1920) 3M (2048x1536) Field of view (FOV): Indicates the width of the field of view captured Wide/Medium/Narrow by the camera sensor.
- Page 17 Time-lapse Photo: OFF / 1 Sec. / 2 Sec. / The camera will take still pictures at designated 5 Sec. / 10 Sec. / intervals. 30 Sec. / 60 Sec. Photo Timer / Self-timer: OFF / 1 Sec. / 3 Sec. / 5 Sec. / Sets a delay timer for selfie or group photos.
- Page 18 WiFi Frequency 2,4 GHZ USB TYPE C 3.0: Interface Recharging/File Transfer Li-ion rechargeable Battery Battery 1100mAH Dimensions (WxHxD) 61x45x36mm...
- Page 19 For technical help please visit our support area on www.easypix.eu. CONFORMITY The manufacturer hereby declares that the CE marking was applied to the product GoXtreme Manta 4K in accordance with the basic requirements and other relevant provisions of the following CE Directives: 2014/53/EU...
- Page 20 DISPOSAL Dispose of packaging For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled. Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union. This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste.
- Page 21 Battery warning • Never dismantle, crush, or pierce the battery, or allow the battery to short-circuit. Do not expose battery being placed in high temperature environment, if battery leaks or bulges, stop continue to use. • Always charge using the charger. Risk of explosion if battery is replaced by an incorrect type. •...
