goxtreme BLACK HAWK+ 4K User Manual

Hide thumbs Also See for BLACK HAWK+ 4K:
Table of Contents

Advertisement

Quick Links

Download this manual
FR :
Un manuel dans votre langue est disponible sur Internet:
IT:
Il manuale nella sua lingua può essere trovato su Internet:
ES:
Puede encontrar un manual en su idioma en Internet:
PT:
Um manual em seu idioma pode ser encontrado na Internet:
PL:
Instrukcję w swoim języku możesz znaleźć na stronie:
SWE:
En handbok på ditt språk finns på Internet:
NL:
Een handleiding in uw taal vindt u op internet:
www.easypix.info/download-manuals/download/black-hawk-plus
USER MANUAL
(Translation of the original)
https://bit.ly/2MJBcyV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLACK HAWK+ 4K and is the answer not in the manual?

Questions and answers

Related Manuals for goxtreme BLACK HAWK+ 4K

Summary of Contents for goxtreme BLACK HAWK+ 4K

  • Page 1 USER MANUAL (Translation of the original) FR : Un manuel dans votre langue est disponible sur Internet: Il manuale nella sua lingua può essere trovato su Internet: Puede encontrar un manual en su idioma en Internet: Um manual em seu idioma pode ser encontrado na Internet: Instrukcję...

  • Page 2: Table Of Contents

    Table of contents General information ..................3 Explanation of symbols ................... 3 Product description ..................4 Intended use ....................4 Restrictions ..................... 4 Safety Instructions ..................5 Operating environment .................. 6 Camera description ..................7 First use ......................8 Step 1: Insert and charge the battery ............. 8 Step 2: Turn on/off the camera ...............
  • Page 3 Disclaimer Easypix makes no representations or warranties with respect to this manual and, to the extent permitted by law, expressly limits its liability for breach of any warranty that may arise from replacement of this manual by another. Furthermore, Easypix reserves the right to revise this publication at any time without obligation to notify any person of the revision.

  • Page 4: General Information

    General information Please read this manual and its safety instructions before using this product. Follow all instructions. This will prevent hazards that could result in property damage and/or serious injury. The product may only be used by persons who have fully read and understood the contents of this user manual.

  • Page 5: Product Description

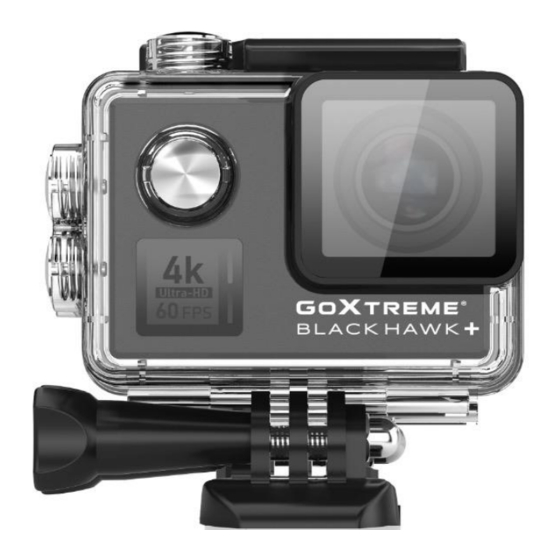

    Product description GoXtreme Black Hawk+ is a 4K camera. The camera records videos and photos with an ultra-wide angle of 170°. The 2"/5cm display allows you to operate the camera easily and intuitively. It is supplied with a housing that is waterproof up to 60m, as well as a wide range of additional brackets and accessories.

  • Page 6: Safety Instructions

    WARNING The product is not waterproof. It should only be immersed under water when securely enclosed in the supplied housing. • Before using the product in water, make sure that all covers and latches on the camera and underwater housing are securely closed and sealed.

  • Page 7: Operating Environment

    strong magnetic fields or radio waves to prevent them from damaging the product or affecting the sound and picture quality. • In the unlikely event of overheating, smoke or unpleasant odours coming from the unit, disconnect it immediately from the charging cable and remove the battery to avoid fire.

  • Page 8: Camera Description

    Camera description 1. OK Button / WiFi 2. Power / Mode Button 3. Up Button 4. Down Button 5. Microphone 6. USB 7. MicroSD slot 8. HDMI 9. Display 10. Battery compartment 11. Tripod socket...

  • Page 9: First Use

    First use NOTE! To ensure optimum performance from your camera, please follow the steps below when using the camera for the first time: Step 1: Insert and charge the battery Before using the product for the first time, make sure that it is fully charged.

  • Page 10: Step 2: Turn On/Off The Camera

    Step 2: Turn on/off the camera • Press and hold the Power button for about 3 seconds to turn on the camera. • To turn off the camera, press and hold the Power button again for about 3 seconds. Step 3: Setting the language By default, the camera is set to English.

  • Page 11: Step 4: Insert And Format The Microsd Card

    Step 4: Insert and format the MicroSD card NOTE! • Please make sure that your memory card is formatted in the camera before using the card for the first time. • For best results, we recommend the use of high-quality Class 10 MicroSD cards with U3 High Speed or higher.

  • Page 12: Step 5: Set Date And Time

    Step 5: Set date and time 1. Press the Mode button several times until you reach the Settings menu. 2. Select Camera settings and confirm with the OK button. 3. Use the arrow keys to navigate to the sub-item "Date/Time" and confirm with OK.

  • Page 13: Step 7: Changing The Video/Photo Settings

    Step 7: Changing the video/photo settings Video settings and photo settings you need to set separately. 1. When the camera is switched on, it is in video mode by default. Press the Mode button switch to Photo mode. 2. To change the settings of your photo or video recordings, press the mode button again to enter the general settings menu.
  • Page 14 SOUNDS: Controls the volume of the key tones. WHITE BALANCE: White balance setting. EXPOSURE: Setting for exposure times DATE STAMP: You can remove or add the time and date stamp from your videos and recordings here. DATE/TIME: Select your preferred option for displaying the date on the screen and in recordings and photos.

  • Page 15: Video Settings

    FORMAT CARD: To ensure maximum compatibility between memory card and camera, the memory card should always be formatted in the camera before first use. Touch FORMAT to perform the formatting operation. Formatting will delete all files stored on NOTE! the card. Ensure that all important files are backed up before formatting.

  • Page 16: Photo Settings

    Photo settings • Photo Resolution • ISO • Timelapse Photo • Shooting Time Night Lapse • Sharpness • Burst Photo • Delay Timer • Long Exposure • Photo Scene Mode Playback mode 1. Press the Mode button several times until you reach the Settings menu.

  • Page 17: Webcam Function

    Webcam function Your action cam also features a webcam function. To use your cam as a webcam please follow the following steps: 1. Connect the camera to your computer using the USB cable provided. 2. If prompted, select the PC-Cam or Web Cam option. 3.

  • Page 18: Connection To The "Ismart Dv2" App

    Connection to the "iSmart DV2" app 1. Before using the WiFi feature, please go to the App Store or GooglePlay and install the iSmart DV2 app on your smartphone or tablet PC. ANDROID 2. Press and hold the WiFi button for approx. 3 seconds to activate WiFi.
  • Page 19 NOTE! • Ensure that you have downloaded the correct app. • Please note that wireless transmission of files via the app is not possible for videos with a resolution of more than 1080p. Files with a resolution greater than 1080p can only be transferred using a computer or card reader.

  • Page 20: Technical Specifications

    Technical specifications 4K (60fps / 30fps EIS) 2.7K (60fps / 30fps) Video resolution 1080p (120fps / 60fps EIS / 30fps EIS) 720p (240fps / 200fps / 120fps / 60fps / 30fps) 14M (interpoliert) Photo resolution Display 2.0"/5cm Sensor 12MP Waterproof housing Waterproof up to 60m Microphone/Loudspeaker Integrated Wide angle...
  • Page 21 Auto, 100, 200, 400, 800, 1600, 3200 Car / Daylight / Cloudy / Incandescent / White Balance Fluorescent / Underwater WiFi function Integrated WiFi frequency 2.4 GHZ WiFi SSID GOXTREME WiFi password 1234567890 Bluetooth Bluetooth 4.0 File formats H.264 MOV, JPG TV mode NTSC / PAL...

  • Page 22: Box Contents

    MicroSD cards up to max. 64GB External memory - Requirement: U3 class10 cards or higher - Card not included Version GOXTREME V1.0 Windows XP (Service Pack 2) or higher Mass storage support Mac OS X 10.5.11 or higher Box contents • Monopod adapter •...

  • Page 23: Disposal

    Devices marked with this symbol must not NOTE! be disposed of with household waste! You are legally obliged to dispose of old appliances as well as batteries and accumulators separately from household waste. Information on collection points that accept used devices/batteries free of charge is available from your local authority or town council.

  • Page 24: Declaration Of Conformity

    WARNING Warning regarding the battery: - Do not disassemble or hit the battery. Be careful not to short-circuit the battery. Do not expose the battery to high temperatures. Do not continue using the battery if it leaks or expands. - Always recharge using the camera or manufacturer approved desktop charger if available.
