Warning
1.
Always take the appropriate steps to protect your camera from falls, shock or
impact.
2.
Ensure a suitable distance is kept from any objects with strong magnetic
interference such as electrical machinery in order to avoid strong radio waves that
may be damaging to the product and affect the sound or image quality.
3.
Never expose the product directly to high temperatures and prolonged strong
sunlight.
4.
We recommend using high quality, class 10 or above Micro SD Card for the best
results.
5.
To avoid potential data error, avoid placing your Micro SD card near strong
magnetic objects.

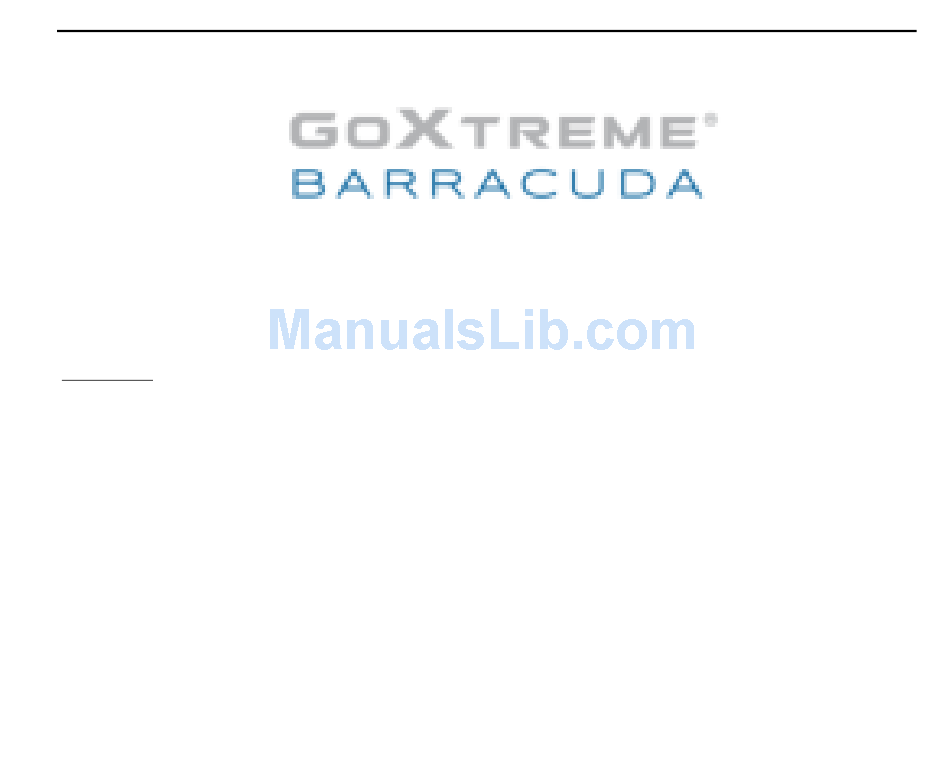

User's manual
EN
Advertisement
Table of Contents
Related Manuals for goxtreme Barracuda
Summary of Contents for goxtreme Barracuda
- Page 1 User’s manual Warning Always take the appropriate steps to protect your camera from falls, shock or impact. Ensure a suitable distance is kept from any objects with strong magnetic interference such as electrical machinery in order to avoid strong radio waves that may be damaging to the product and affect the sound or image quality.
- Page 2 In the unlikely event of overheating, unwanted smoke or unpleasant smell from the device, unplug it immediately from the power outlet to prevent hazardous fire. Keep the device out of reach of children while charging. The device should be stored in a dry and dust free location at normal room temperature and out of direct sunlight.
- Page 3 The camera...
- Page 4 1.Power button: Short press to turn on camera, long press to turn off camera; Short press to capture a photo while recording video. 2.OK button: In Standby mode - short press to start/stop the recording; In Picture mode - short press to take a picture; In Playback mode - short press to start/pause playback;...
-
Page 5: Camera Operation
Camera operation Power on/off Power on: Short press the power button, screen shows start up picture, the blue working indicators will light up and the camera enters standby mode. Power off: When camera is on, long press power button to switch the camera off. Battery charging Connect camera with power charger via USB cable, the red light will illuminate. - Page 6 Video interface 1.Recording mode icon 2.Frame rate 3.Video resolution 4.Remaining memory card capacity (Hrs, Mins, Secs) 5.Battery icon 6.Menu (Menu options will appear or hide by tapping this icon) Please note: 4K resolution doesn’t support “WIFI, zoom function and time lapse”. Please set “capture timing”...
-
Page 7: Picture Mode
Picture mode Picture interface 1.Photo mode icon 2.Picture size 3.Memory card capacity remaining (No. of photos that can still be captured) 4.Battery icon 5. Menu (Menu options will appear or hide by tapping this icon) - Page 8 Camera default setting is Video mode, click on the screen to enter Main menu and choose Picture mode. Point at the object you want to capture and press the OK button. The camera will save pictures automatically. Capture function 1. Capture manually: Press power button to take a picture under recording when “Capture timing”...
-
Page 9: Playback Mode
Playback mode 1.Picture files 2.Video files Selects the picture or video you need to view. Swipe across camera’s screen in order to access the last or the next file. Tap the menu icon to enter the corresponding file protect or delete. Menu Setting In standby mode, click to enter the menu setting, click... -
Page 10: Install And Use Wifi
Long press the camera’s OK Button to activate the camera’s WIFI, the camera screen will display ”Barracuda”. In your smartphone WiFi settings screen, find the WiFi network named “barracuda” and enter the default password “1234567890” to connect. Once connected, open the “iSmartDV” app on your smart phone, which will provide a live view and remote control of your camera. -
Page 11: Connect Hdmi
Connect HDMI Connect your camera to a HDMI equipped TV using a HDMI cable. All operations will be displayed on your TV screen. Note: Viewing of 20MP pictures is not supported via the HDMI connection. Playback on PC Connect your camera to your PC and open the camera icon, the screen will display: “MSDC”... -
Page 12: Technical Specification
Technical specification Waterproof 10m without waterproof case Sensor 16MP CMOS Sensor Image size 20M (interpolated) / 16M / 12M / 8M / 5M / 3M Resolution 4k 25fps/2.7k 30fps/1080p 60fps/1080p 30fps 720p 120fps/720P 60fps/720p 30fps Video quality Super fine / Fine / Normal Slow Motion Off / Auto Time Lapse... - Page 13 Wifi distance 15m in open space Audio Built-in Microphone Battery Replaceable lithium battery 1050mAh/3.7V 3.885Wh File format MOV H.264 / JPG Memory card 4GB to 64GB (micro SD Card Class10 minimum) HDMI output Real time output USB port USB 2.0 high-speed interface Power frequency 50Hz / 60Hz / Auto Power save...
- Page 14 After underwater use, the case must be kept open to avoid condensation or rust. DECLARATION OF CONFORMITY Easypix hereby declares that the product GoXtreme Barracuda 4K is in conformity with all the essential requirements of Directive 1999/5/EC. The declaration of conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_goxtreme_barracuda4k.pdf...
