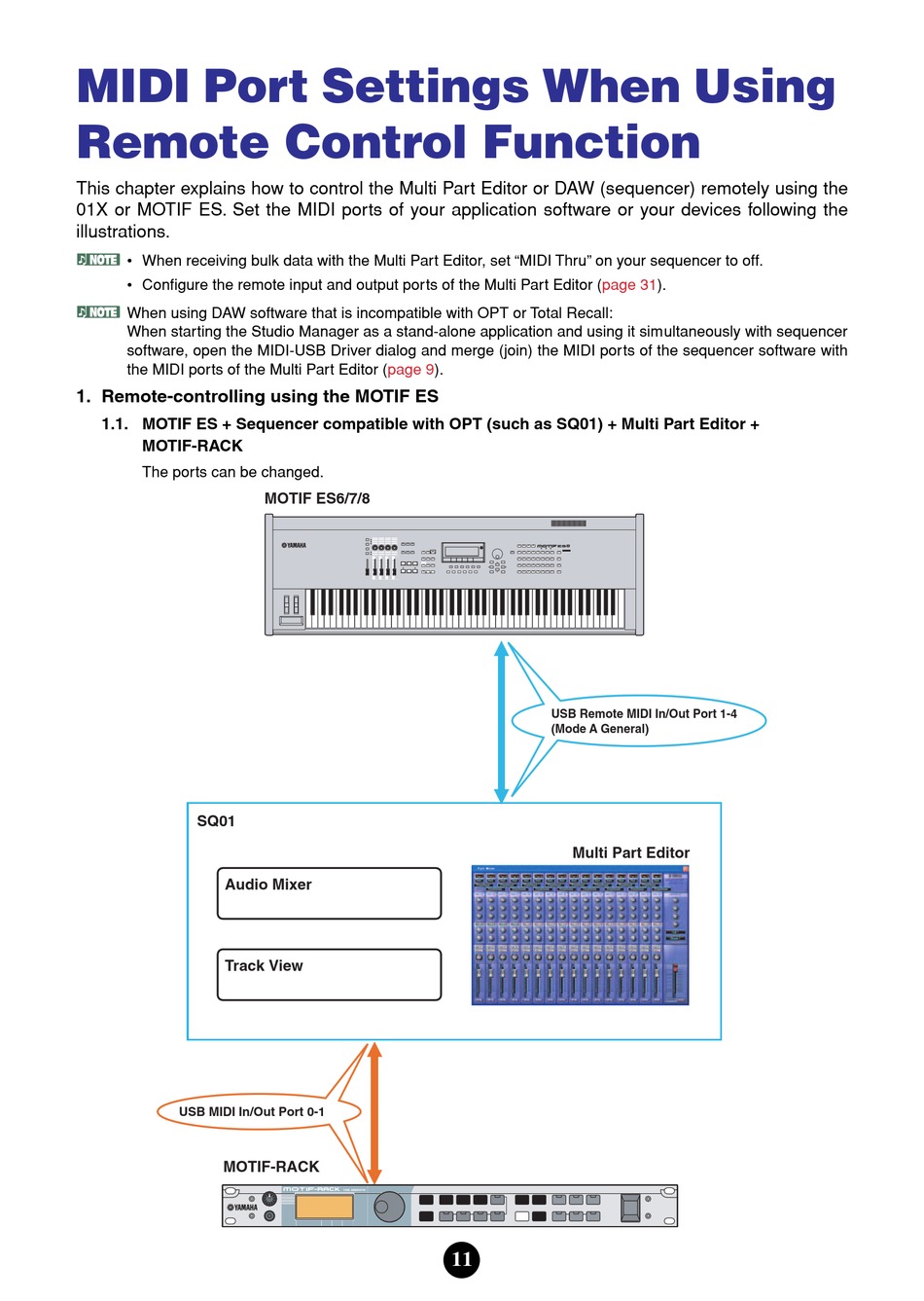

Midi Port Settings When Using Remote Control Function - Yamaha MOTIF RACK Music System Owner's Manual

MIDI Port Settings When Using
Remote Control Function
This chapter explains how to control the Multi Part Editor or DAW (sequencer) remotely using the
01X or MOTIF ES. Set the MIDI ports of your application software or your devices following the
illustrations.
n
• When receiving bulk data with the Multi Part Editor, set "MIDI Thru" on your sequencer to off.
• Configure the remote input and output ports of the Multi Part Editor
n
When using DAW software that is incompatible with OPT or Total Recall:
When starting the Studio Manager as a stand-alone application and using it simultaneously with sequencer
software, open the MIDI-USB Driver dialog and merge (join) the MIDI ports of the sequencer software with
the MIDI ports of the Multi Part Editor
1. Remote-controlling using the MOTIF ES
1.1. MOTIF ES + Sequencer compatible with OPT (such as SQ01) + Multi Part Editor +
MOTIF-RACK
The ports can be changed.
SQ01
Audio Mixer
Track View
USB MIDI In/Out Port 0-1
MOTIF-RACK
(page 9).
MOTIF ES6/7/8
(page
USB Remote MIDI In/Out Port 1-4
(Mode A General)
Multi Part Editor
11
31).
