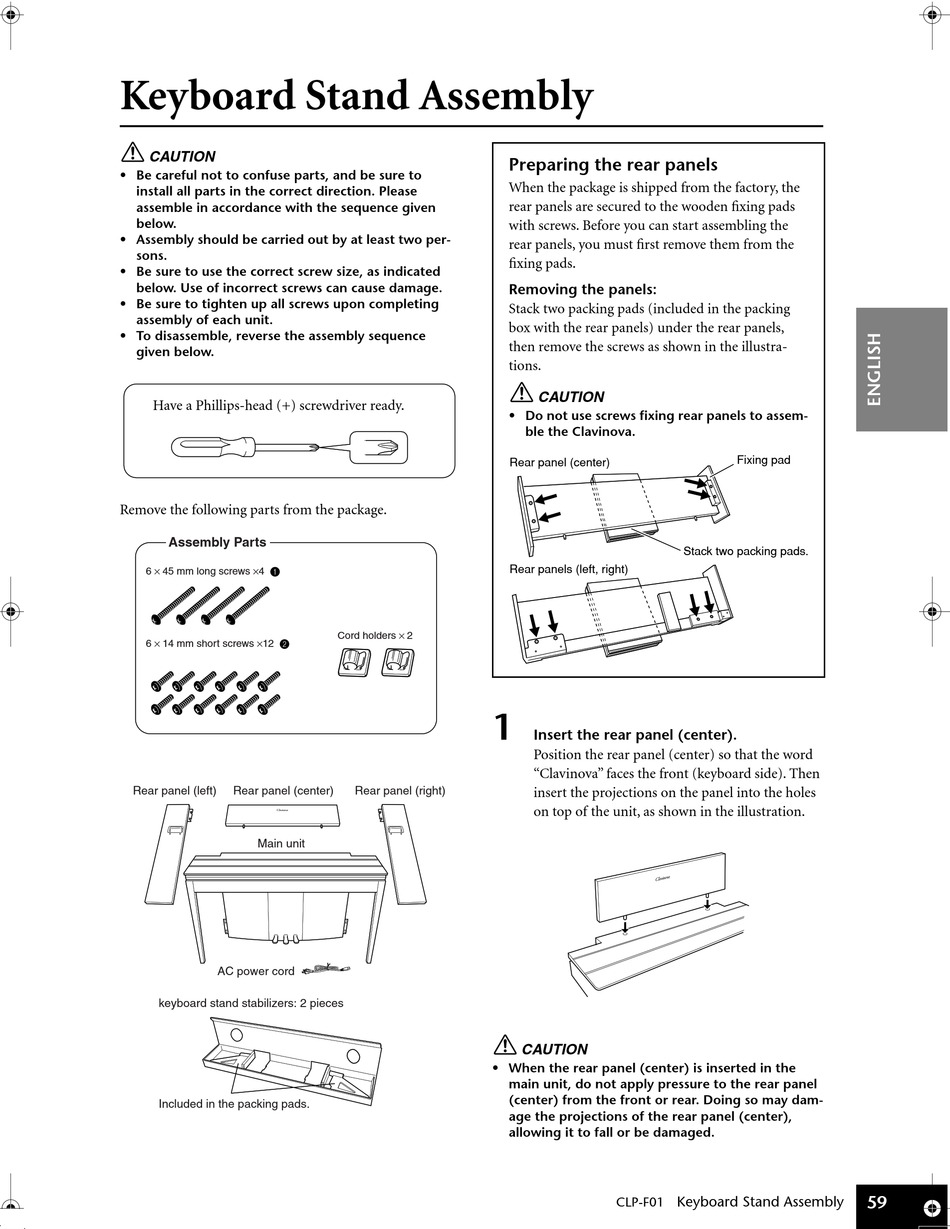

Keyboard Stand Assembly

CAUTION
• Be careful not to confuse parts, and be sure to
install all parts in the correct direction. Please
assemble in accordance with the sequence given
below.
• Assembly should be carried out by at least two per-
sons.
• Be sure to use the correct screw size, as indicated
below. Use of incorrect screws can cause damage.
• Be sure to tighten up all screws upon completing
assembly of each unit.
• To disassemble, reverse the assembly sequence
given below.
Have a Phillips-head (+) screwdriver ready.
Remove the following parts from the package.
Assembly Parts
6 × 45 mm long screws ×4
1
6 × 14 mm short screws ×12
2
Rear panel (left) Rear panel (center)
Main unit
AC power cord
keyboard stand stabilizers: 2 pieces
Included in the packing pads.
Cord holders × 2
1
Rear panel (right)
• When the rear panel (center) is inserted in the
Preparing the rear panels
When the package is shipped from the factory, the
rear panels are secured to the wooden fixing pads
with screws. Before you can start assembling the
rear panels, you must first remove them from the
fixing pads.
Removing the panels:
Stack two packing pads (included in the packing
box with the rear panels) under the rear panels,
then remove the screws as shown in the illustra-
tions.
CAUTION
• Do not use screws fixing rear panels to assem-
ble the Clavinova.
Rear panel (center)
Rear panels (left, right)
Insert the rear panel (center).
Position the rear panel (center) so that the word
"Clavinova" faces the front (keyboard side). Then
insert the projections on the panel into the holes
on top of the unit, as shown in the illustration.
CAUTION
main unit, do not apply pressure to the rear panel
(center) from the front or rear. Doing so may dam-
age the projections of the rear panel (center),
allowing it to fall or be damaged.
CLP-F01
Fixing pad
Stack two packing pads.

Keyboard Stand Assembly
