- Page 1 Maxi 3300MC Coin box Operating instruction...
- Page 2 Important: For safe and proper use, read the instructions for use and further product-related documents carefully and keep it for later use! For errors, technical errors, printing errors and incompleteness, we assume no liability.
- Page 3 Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 S ü d s t r a ß e 4 0 / D- 4 9 0 8 4 O s n a b r ü c k info@holtkamp.de / www.holtkamp.de EU-Konformitätserklärung / European Union conformity explanation...
- Page 4 Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 - 4 -...
-
Page 5: Table Of Contents
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Inhaltsverzeichnis 1 Legal information ..................................6 2 Warranty ....................................6 3 Safety notices ....................................6 4 Notes on cleaning and maintenance ............................6 Change battery ..................................6 5 Device specific data ..................................7 6 General data ....................................7 7 Illustrations ....................................8 Illustration of the device ..............................8... -
Page 6: Legal Information
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Legal information Warranty All rights reserved. No part of this manual may not be reproduced On the function of the device is granted for a period of 12 months. or copied in any form without permission of Holtkamp Elektronik The warranty is limited solely to technical defects of the unit, it GmbH. The rights for contained software in control and memory can´t be accepted further claims. Further apply our general terms blocks are exclusively from the manufacturer. The reading and and conditions, stand of June 2011, for products and services of copying of the program content is strictly prohibited. the electrical industry (ZVEI) - also see website: www.holtkamp. The Holtkamp Elektronik GmbH is not liable to the purchaser of this product or third parties for damages, losses, costs or ex- Any liability extinguished by the manipulation of the device. -
Page 7: Device Specific Data
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Device specific data After switching on the electricity on the display appears for approx. 2 seconds: Holtkamp XL X.x, below in the second row: T-Timer. This is information about the used software version (X.x) as well as the operating type of the MAXI (T-Timer). Locking no. (embossed on the key) Operating type and software version (The display appears it as number, 2 seconds after activate) Serial number (written on the type plate) Commission Trader... -
Page 8: Illustrations

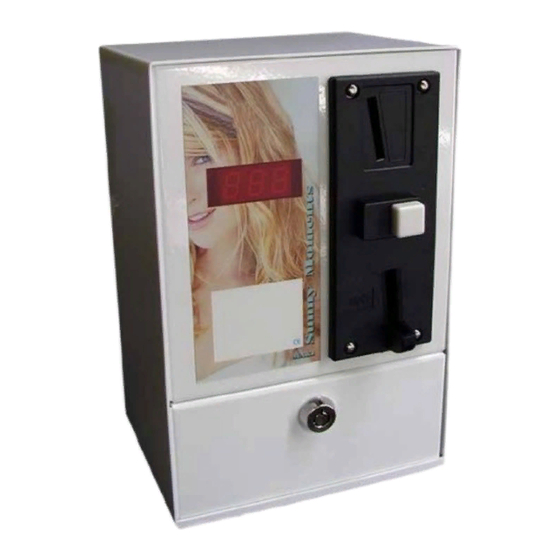

Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Illustrations Illustration of the device Casing Coin tester Coin slot Coin reject button* Coin return Coin bag Lock Coin remove Card slot for general card Front plate LED display Design foil (Standard-Ausführung) * (Special equipment) The coin reject button can be used also as door opener. -
Page 9: Illustration Of Electronic
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Illustration of electronic Lü Circuit board MC-Gen2-V100; 230V~ Connection for coin tester Connection for remote start button Connection for time hold; cleaning button or door opener Connection for delete button Jumper “LöFrei” Connection for general-/equiry card Connection for bypass swithcn Additional relay for 110% disconnection Main relay... -
Page 10: Installation
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Installation Mounting notes Installation notes ● This device may only be mounted on a suitable surface. Through high quality micro-electronics is the device able to reach a high standard of reliability in the daily use. Only if the installati- ● The device must be sufficiently secured, take into consi- on has been professionally carried out can the device be guaran- deration the weight of the inserted coins. -
Page 11: Electrical Connection
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 8.4 Electrical connection The electrical connection can only be carried out by authorized and qualified personnel! The electrical connection has to be carried out by the local VDE regulations. With a permanent connection, an all pole mains se- parator with at least 3 mm contact gap must be used. Before starting the electric the corresponding circuit must be dis- connected. Shut down the mains input by activating the sepa- rator switch, remove the fuse or release the main safety fuse. -
Page 12: Operating The First Time
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Connection 230 V Remote start (potential free) Operating the first time March 2003 110% shutdown If the MAXI is installed completely, you can take into operation by switching on the circuit. according to standard EN 60335-2-27/A11 (VDE 0700 As soon as the circuit is activated, appears in the display an part 27). -
Page 13: Specifications
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Specifications MAXI 3300MC Gen. II controls 1 device (e.g. sun bed) Electronic multiple coin tester Mechanic single coin tester Pre-run time Main time (1 min. – 9 h.59 min.) Run-out time Maximum time LED display 3-digitys Programming with general card Price setting (coin value) Minimum insert Short time sale Money counter... -
Page 14: General Card
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 General card The general card is for programming of the standard and special functions. The general card is included once per commission. PROG = The programming mode will be pressed PROG button. If the PROG button is pressed repeatedly the normal mode is activated. NEXT = By pressing the NEXT button in the pro- gramming m ode, t he n ext p rogramposition i s c all up. With NEXT button the statistic menu is call... -
Page 15: Time/Price Menu
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 11.2 Time/price menu Remote start The remote start gives the possibility to activate by an external In the programming mode the programming positions will appear button. 2 procedures are possible. In the first case the lead time in the display through number and letter combinations. is set on lower then “0”. In this case the lead time was ended by This explains the following: pressing the remote start and the main-time starts immediately. In the second case the lead time is set on = “0”. In this case begins the main-time, first, after activating the remote start. This... - Page 16 Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Main time presentation Minimum insert The main time presentation offers the possibility, to show the The minimum insert offers the possibility to convert the price, main time in minutes or in hours and minutes. which is adjusted under 5 the price setting, to minimum price.
-
Page 17: Configuration Menu
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Configuration menu The call up of this menu takes place with pressing twice the PROG button on the PCB. The leave through of the menu points takes place with the NEXT button, the changing of the adjust- ments with MINUS and PLUS button. In the programming mode the programming positions will be show through number and let- ter combinations in the display. In the following this programming positions will be explained what this means. Channel value The adjustment of the channel values offers the possibility, to E6 is the channel value for the token. -
Page 18: Electronic Multi Coin Tester (Emp)
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 12.2 Electronic multi coin tester (EMP) If your MAXI is equipped with an electronic multi coin tester The allocation of the channels to the thrown in coins can be (EMP), it can identify and accept up to 6 several coins. If a coin is inferred from the sticker on the side cover of the electronic inserted, at first it notices the insert only, but it don´t know, which... - Page 19 Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 The correlation of the channels to the thrown in coins you can You can enable and disable individual coin types with the help also see on the label on the cover from the coin tester. It is pos- of certain DIP switch combinations. There are 16 DIP switches, sible, to blocked several coins. Thereby the coin acceptation is which are numbered after the upper imaging.
- Page 20 Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Connection socket for Time stop/ Cleaning button/Door opener short time impulse (Special equipment) ● it is adjustable on "0", "SP", "Pu" or "IP" The 3 functions time stop, cleaning button and door opener short time impulse are share the same connection on the PCB, so it can be activated one of there functions only. The desired function must be declared by order and it will be adjusted factory-made.
-
Page 21: Basic Settings
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Basic settings The factory programming of your MAXI is presented on this page. To give you a reminder, there is a free field to the entry for your personal programming behind each programming value. Programmed position Factory-made programmed value Your programmed value PROG-button 1x 1 Pre-run ttime 2.00 Minutes Minutes 2 Main time Minutes Minutes 3 Maximum time Minutes Minutes 4 Run-out time 3.00... -
Page 22: Enquiry Card
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Channel value by mechanical coin tester Channel value Channel 00.5 One second frequency Remote start (special equipment) Connection socket for time stop/cleaning button/door opener short time impulse (special equipment) Delete locking-time 0 min. Enquiry card With the enquiry card the statistic values can be only prompted. The enquiry card is not include the delivery from standard and must be ordered extra, when desired. NEXT = By pressing the NEXT button the statistic menu is call up and the first statistic position is indica- ted. Another pressing of NEXT button cause the indication of the next statistic positions. -
Page 23: Statistics
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Statistics The MAXI has follow statistic positions... Each counter has an automatic overflow (as in the case of the kilometer counter in the car, the counter jumps after 9..9 to 0..0). ● 6 digit money impulse counter When entering the statistics menu, press the NEXT button once. ● 6 digit token impulse counter (only by devices with elec. multi It may not be active configuration or time / price menu. coin tester) ● 6 digit operating hour counter ● 3 digit customer counter ● 3 digit service hour counter 15.1 Delete of statistic values... -
Page 24: Non-Programmable Special Equipment
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Non-programmable special equipment 16.1 Contactor 2 x 20 A 16.6 Connectivity for delete button The electric contactor offers the possibility to increase the swit- The connectivity for the cancel button offers the possibility, to de- lete the pre-run and main time over an external button. The run- ching power of the MAXI. If you have ordered your MAXI with an electric contactor, it will be installed on the SB frame inside on out time can´t be deleted. Is the delete signal durably, the display... -
Page 25: By Malfunctions
Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 By malfunctions If your MAXI does not behave as you would like, try to help your- self with the following list. If you cannot repair the problem your- self, then the trader is, of course, there to help. Malfunction Possible causes... - Page 26 Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 Index Battery replacement Operating hour counter Operating the first time Channel value Potential free relay contact Cleaning and maintenance Cleaning button Power depending time stop Cleaning button, conntectivity Pre-run time Price setting Coin tester Configuration menu Programming Contactor 2 x 20 A...
- Page 27 Holtkamp Electronics MAXI 3300MC english techn. stand 09.2017 4019_11.2017 V09.2019 - 27 -...
- Page 28 For technical information during our business hours: Monday - Thursday 8.00 a.m. - 16.00 p.m. and Friday 8.00 a.m. - 13.00 p.m. choose: +49 541 97120-0 or visit our homepage: www.holtkamp.de Technical Stand 09.2019 / We reserve the right to technical changes in the production and technical developments. Südstraße 40, D-49084 Osnabrück Phone: +49 541 97120-0 info@holtkamp.de...
