Summary of Contents for Holtkamp VENUS 6600 XL

  • Page 1 VENUS 6600 XL Chip card system Operating instruction...
  • Page 2 Important: For safe and proper use, read the instructions for use and further product-related documents carefully and keep it for later use! For errors, technical errors, printing errors and incompleteness, we assume no liability.
  • Page 3 Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Conformity explanation S ü d s t r a ß e 4 0 / D- 4 9 0 8 4 O s n a b r ü c k info@holtkamp.de / www.holtkamp.de EU-Konformitätserklärung / European Union conformity explanation...

  • Page 4: Table Of Contents

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Content 1 Legal information ..................................5 2 Warranty ....................................5 3 Safety notices ..................................... 5 4 Device specific data ..................................5 5 Specifications ....................................6 6 General details ..................................... 6 7 Illustrations ....................................7 Illustration of device ................................

  • Page 5: Legal Information

    All rights reserved. No part of this manual may not be repro- On the function of the device is granted for a period of 12 months. duced or copied in any form without permission of Holtkamp The warranty is limited solely to technical defects of the unit, it Elektronik GmbH.

  • Page 6: Specifications

    After switching on the electricity on the display appears for For further questions and orders these details will constitute an approx. 2 seconds: Holtkamp XL X.x, below in the second row: advantage. Please note all the abbreviations appearing on the T-Timer.

  • Page 7: Illustrations

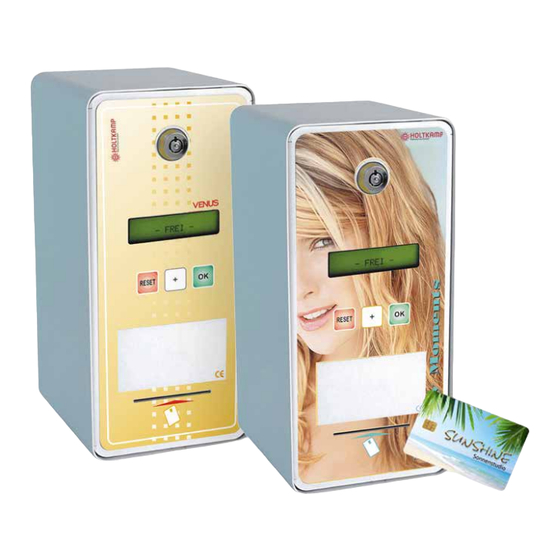

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Illustrations Illustration of device Casing Frontplate with foil keyboard Lock LCD display RESET-; PLUS; -OK button Short manual Card slot - 7 -...

  • Page 8: Illustration Of Electronic

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Illustration of electronic Jumper remote start (FS): Jp FS = 0 Jp FS = without function standard 5 a, b ,c 6 a, b PCB XL2_V021 230V~ Serial interface PCB fuse...

  • Page 9: Installation

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Installation Installation notes Through high quality micro-electronics is the device able to re- ach a high standard of reliability in the daily use. Only if the in- stallation has been professionally carried out can the device be guaranteed.

  • Page 10: Electrical Connection

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Electrical connection  The electrical connection can only be carried out by authorized and qualified personnel! The electrical connection has to be carried out by the local VDE regulations. With a permanent connection, an all pole mains se- parator with at least 3 mm contact gap must be used.

  • Page 11: Operating The First Time

    2 seconds information about the operating type of your main time: permanent light; run-out time: slow blinking. VENUS and about the used software version (e.g. Holtkamp XL Soft X.x T-Timer Free). The device is now ready and you can program it as you wish.

  • Page 12: Specifications

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Specifications VENUS 6600 XL controls 1 device (e.g. tanning bed…) Chip card contact unit without reject magnet Chip card revaluation via keyboard by the owner/personnel Pre-run time Main time (1 min. – 1 hour 39 min.)

  • Page 13: Chip Card Types

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Chip card types There are various chip card types, to distribute to customers, as a means of payment and to program the standard and special functions. The following table is to explain the different chip card types. Chip card type Funkcion...

  • Page 14: Basic Programming By Operation Mode „Timer" (Factory Settings)

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 11.2 Basic programming by operation mode „Timer” (Factory settings) Your VENUS has been factory set with standard programming. The program values are written in the appropriate displays. 11.2.1 Time/price menu: to call with::...
  • Page 15 Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Display information Factory setting Description Main time 2 0:03:00 min The main time 2 is the operating time of the connected device, payable by coins or by card. It is always active on the second step of the various pay- ment types.
  • Page 16 Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Display information Factory setting Description Service interval 2 0 hrs The service interval 2 offers the possibility for further noticing operating hours. When the service hours counter 2 reaches the operating hours, an exclamation mark will be shown on the display and signals the need of ser- vice.

  • Page 17: Clock Menu

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 11.2.2 Clock menu to call with: to quit with: Insert chip card Pull out chip card type 63 type 63  Is a chip card type 63 non-existing, you can start the menu also The grey deposited menu option must be only activated with change over the DIP switches no.

  • Page 18: Configuration Menu

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Display information Factory setting Description Switch time Mo-Fr 1 **:** First switching time (valid from Monday to Friday) Tariff Mo-Fr 1 First tariff (valid from Monday to Friday). The tariff is freely chosen between tariff 1, 2, 3 and blockage. (A payment is not possible during the activated blockage). Switch time Mo-Fr 2...
  • Page 19 Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Following menu options are successively programmable: Display information Factory setting Description Language* German The language offers the possibility to set the typical country language. The language selection depends on the software and it is may be chosen between version A, B, C.

  • Page 20: Bus Configuration Menu

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 11.2.4 Bus configuration menu This menu is only of interest to you, if you owe a network (HELIO- TEX or DELTA XL) or you need a connection to SkinControl. If you want to set up a network, please read the instructions, which are included with the particular software.

  • Page 21: Chip Card Revalue

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Chip card revalue 12.1 Personnel revalue mode to call with: to quit with: The menu is left automatically, if longer than 15 seconds no acti- on is implemented or the RESET button is pressed.

  • Page 22: Statistics

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Statistics 13.1 Explaining the statistics values ● Total operating hours impulse counter ● Daily card impulse counter Counter for the deducted amounts from the chip card type 11. As daily operating hours counters but can only be can- The counter does not count any payment with the chip celled with the chip card type 43 and the DIP switch Nr.

  • Page 23: Cancelling The Statistic Values

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Total oper. hours IC = 1102:33 hrs Card daily IC = 500.0 EUR Service hours 1: = 1102:33 hrs Customer daily IC 0,00 EUR Service hours 2: 152:33 hrs Operating hours d.

  • Page 24: Enquiring The Failure Statistics

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 13.5 Enquiring the failure statistics When you are in the normal mode, you can change to the stati- stic menu by hold pressed PLUS button and insert chip card type 43. Unhand the PLUS button. With OK button you can change to the next menu point.

  • Page 25: Not Programmable Special Equipments

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Not programmable special equipments 14.5 Internal short time impulse for washing 14.1 Electric contactor 2 x 20 A or 4 x 20 A optionally machine door opening The electric contactor offers the possibility to increase the swit- The short time impulse for the washing machine door opening, ching power of the VENUS. If you have ordered your VENUS...

  • Page 26: Remote Indication Incl. Connection Possibility In Venus With Or Without Remote Start

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 14.9 Remote indication incl. connection possibility in VENUS with or without remote start The remote indication is an additional device with LED display, which shows the client the remained time, locally parted from the VENUS.

  • Page 27: By Malfunctions

    Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 By malfunctions If your VENUS does not behave as you would like, try to help yourself with the following list. If you cannot repair the problem yourself, then the trader is, of course, there to help.
  • Page 28 Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 - 28 -...
  • Page 29 Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 Index Symbole 3 digits main time Main failure fuse Main time 14, 15 Malfunctions Maximum time Autom. Summertime Memory lock Montageanleitung Mounting notes Basic programming "Timer" Baudrate Brightness Operating the first time Bus configuration menu Parität...
  • Page 30 Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 - 30 -...
  • Page 31 Holtkamp Electronics VENUS 6600XL techn. Stand 04.2016 4074_04.2016 V09.2019 - 31 -...
  • Page 32 Monday - Thursday 8.00 a.m. - 16.00 p.m. and Friday 8.00 a.m. - 13.00 p.m. choose: +49 541 97120-0 or visit our homepage: www.holtkamp.de Technical Stand 09.2019 / We reserve the right to technical changes in the production and technical developments. Südstraße 40, D-49084 Osnabrück Phone: +49 541 97120-0 info@holtkamp.de...
