Summary of Contents for Holtkamp UNO Series

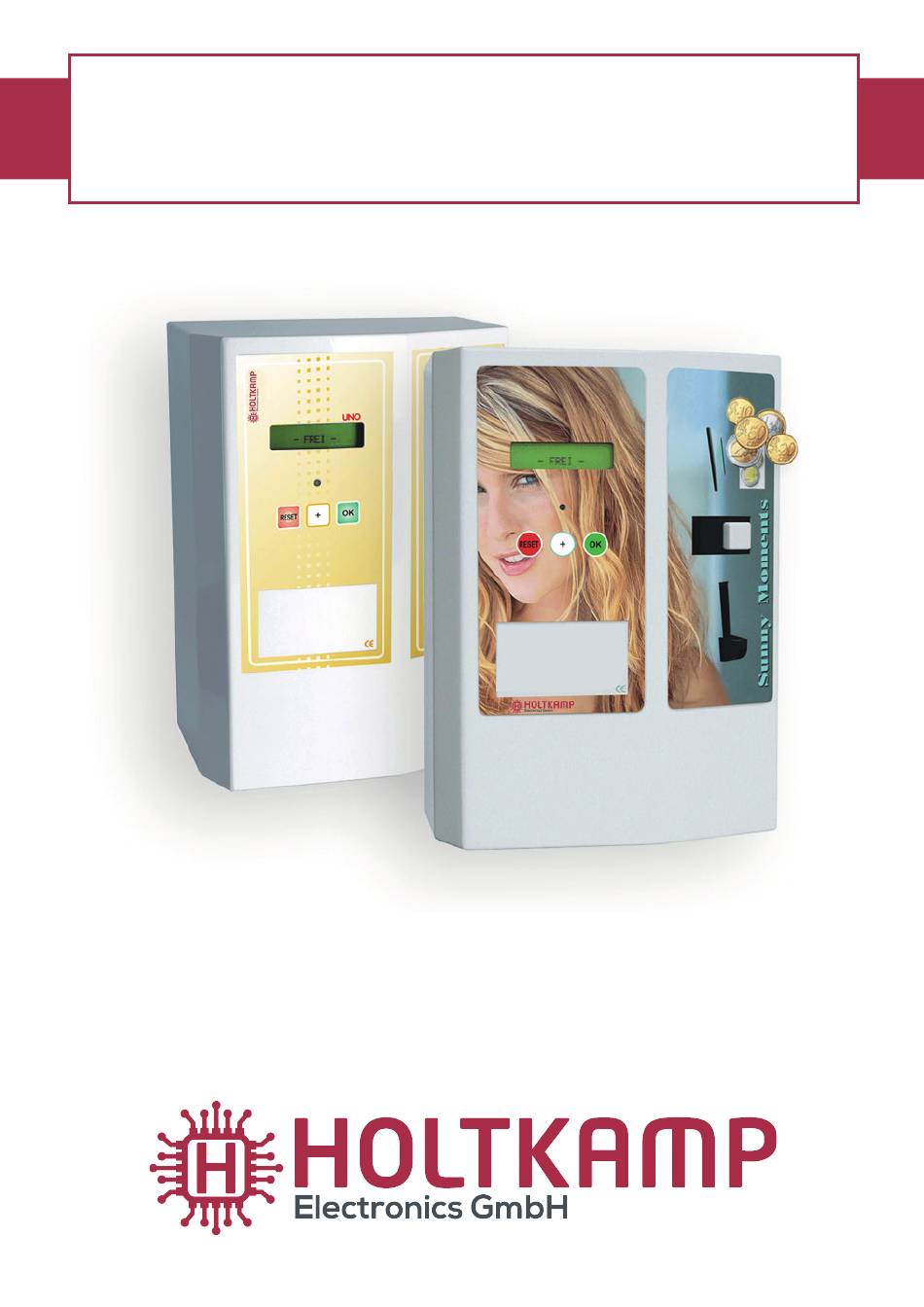

  • Page 1 Coin timer Operating instruction...
  • Page 2 Important: For safe and proper use, read the instructions for use and further product-related documents carefully and keep it for later use! For errors, technical errors, printing errors and incompleteness, we assume no liability.
  • Page 3 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 S ü d s t r a ß e 4 0 / D- 4 9 0 8 4 O s n a b r ü c k info@holtkamp.de / www.holtkamp.de EU-Konformitätserklärung / European Union conformity explanation...

  • Page 4: Table Of Contents

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Contents 1 Legal information ..................................5 2 Warranty ....................................5 3 Safety notices ....................................5 4 Notes on cleaning and maintenance ............................5 5 Device specific data ..................................6 6 General details ..................................... 6 7 Illustrations ....................................

  • Page 5: Legal Information

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Legal information Warranty All rights reserved. No part of this manual may not be reproduced On the function of the device is granted for a period of 12 months. or copied in any form without permission of Holtkamp Elektronik The warranty is limited solely to technical defects of the unit, it GmbH. The rights for contained software in control and memory can´t be accepted further claims. Further apply our general terms blocks are exclusively from the manufacturer. The reading and and conditions, stand of June 2011, for products and services of copying of the program content is strictly prohibited. the electrical industry (ZVEI) - also see website: www.holtkamp. The Holtkamp Elektronik GmbH is not liable to the purchaser of this product or third parties for damages, losses, costs or ex- Any liability extinguished by the manipulation of the device. penses caused by the buyer or any third party due to accident, misuse or unauthorized alterations, repairs or improvements.

  • Page 6: Device Specific Data

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Device specific data After switching on the electricity on the display appears for For further questions and orders these details will constitute an approx. 2 seconds: Holtkamp XL X.x, below in the second row: advantage. Please note all the abbreviations appearing on the T-Timer. This is information about the used software version display, definitely, for any other technical requests, in the follo- (X.x) as well as the operating type of the UNO (T-Timer). These...

  • Page 7: Illustrations

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Illustrations Illustration of the device Casing Holes for 13 Insert for coin insertion Fixing bolts for locking plate Coin insertion Mounting bolts for the housing Coin return button* Cable entrances Coin return Earth terminals Beschriftungsfeld SB frame Labeling field...

  • Page 8: Illustration Of Electronic

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Illustration of electronic Jumper remote start (FS): Jp FS = 0 Jp FS = standard without function 7 a, b ,c 8 a, b Circuit board XL2_V021 230V~ Serial interface Electrical connection Connection for master card Connections for potential-free relay contacts Connection for multiple coin tester Fuse printed circuit board Battery Connection for foil keyboard Connection for serial remote display Connection for external timer Connection for bypass switch DIP switch no.

  • Page 9: Installation

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Installation Installation notes Through high quality micro-electronics is the device able to re- ach a high standard of reliability in the daily use. Only if the in- stallation has been professionally carried out can the device be guaranteed. Please consider during the installation, ...

  • Page 10: Electrical Connection

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Electrical connection  The electrical connection can only be carried out by authorized and qualified personnel! The electrical connection has to be carried out by the local VDE regulations. With a permanent connection, an all pole mains se- parator with at least 3 mm contact gap must be used. Before starting the electric the corresponding circuit must be disconnec- ted. Shut down the mains input by activating the separator switch, remove the fuse or release the main safety fuse. Mains and low...

  • Page 11: Operating The First Time

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Connection 230V Remote start (potential free) Operating the first time 8.5.1 LED operating light If the UNO is installed completely, you can take into operation by switching on the circuit. As soon as the circuit is activated, appe- ars in the display an information about the operation mode of you With the LED operating light one can see, at a glance, the ope- rating stand of the UNO. During the pre-run time: quick blinking; UNO and about the used software. (e.g. Holtkamp XL Soft X.x T-Timer Free). The MAXI is now ready for operation and can now main time: permanent light; run-out time: slow blinking. be programmed as you like. To ensure, that the programming has been correct, you should make a detailed test run. After this test run all counters should be deleted to receive a correct account.

  • Page 12: Specifications

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Specifications UNO 7600/XL Controls 1 device (e.g. tanning bed ...) Electronic multiple coin tester Pre-run time Main time (1 min. – 4 hours 15 min.) Maximum time Run-out time LCD display (Zeit- und Infotextanzeige) Programming by master card Time memory Price setting Minimum insert Happy Hour, Discount, FairPlay Skin type identification electronic cash counter electronic operating hour counter...

  • Page 13: Chip Card Types And Their Function

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Chip card types and their function There are two card types for request and delete or request of the statistic values, the master and the request card. 10.1 Master card The master card is for programming the standard and special functions. The master card is included the standard version once per commission. With the master card you can request and dele- te the statistic values. PROG Through singular actuation of the PROG button the next programming menu is call up. Indicates the display "FREE", you come in the price/time menu through singular a ctua- tion; another actuation call up the clock menu; another...

  • Page 14: Request Card

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 10.2 Request card With the request card you can read out the counter values only. The request card is not included the standard equipment and you must order the card extra, if it desired. NEXT You call up the counter values through actuated the NEXT button and the first counter value is indicated. The following counter values will be indicated through further actuation the NEXT button General at programming...

  • Page 15: Time/Price Menu

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Time/price menu You must insert the master card and actuated the PROG button before you can call up the time/price menu. With the NEXT but- ton you call up the following menu points. You can change the adjusted values with the PLUS and MINUS button. You call up the time/price menu as follows: Time/price menu Brightness Service interval 1 Pre-run time Service interval 2 Main time 1...
  • Page 16 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Display shows Factory setting Description Main time 2 0:03:00 min The main time 2 is the operating time of the connected device, payable by coins. It is always active on the second step of the various payment types. It is recalla- ble and programmable if any adjustments have been in the configuration menu. It can be adjusted in 1 second steps, to a max. of 99:00 min or 1 hr 39 min. (see main time 2). Main time 3 0:04:00 min Main time 3 analogue main time 2 Maximum time 0:00 min The maximal time is the limit of the main time. It is adjustable in minute steps to a max. of 99 min. or 1 hr 39 minutes. The maximum time is the admissible tanning time, given by the producer of the sun beds.
  • Page 17 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Display shows Factory setting Description Short time sale The short time sale offers the possibility for activation a partial main time sale per coin insert. The sale of partial main time takes place with insert of the first coin. ● If "yes" is set, the short time sale is activated. ● If "no" is set, the short time sale is deactivated. The program of UNO makes sure, that only the minimum insert or the short time sale can be activated. If will be still tries, to activated both positions, the position, which will be activated at last, is active, the other will be adjusted automatically on "no".

  • Page 18: Clock Menu

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Clock menu For call up the clock menu, you must press the PROG button on the inserted master card two times. The further positions you can request with the NEXT button and change with the PLUS and MINUS button. Ins Uhr-Menü gelangt man wie folgt: Uhr-Menü Clock menu Switch time Mo-Fry 4: Current time Tariff Mo-Fry 4: Current day a. month...
  • Page 19 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Display shows Factory setting Description Autom. Automatic summer time switching is to be set up on “yes” or “no”. Summer time yes: in the last Sunday of March the time is set automatic on summer time, in last Sunday of October it will be automatic set on wintertime. The changing timings will be calculated and do not have to be set. At the beginning of the summer time the clock will be set up with 1 hour forward (at night from 2:00 to 3:00), at the end of the season the clock will be set up 1 hour backward (at night from 3:00 to 2:00). These timings are in agreement with the European Union summer time pro- cedure. They have been implemented by other states (stand 2004. Further information: www.ptb.de, search domain “summer time”). no: no automatic summer time setting The switching time is only available and programmable, if in the configuration menu, by the payment types, a Happy Hour payment type has been activated! For further payment types are needed additional instructions. To set switching...

  • Page 20: Configuration Menu

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Configuration menu For calling up the configuration menu, you must press the PROG button three times on the inserted master card. You can request the further menu positions with NEXT button and change it with the PLUS and MINUS button.. Version A Version B Version C The language selection is depended on the respective software-version Language* You needs a special instruction Coin tester value channel 1...
  • Page 21 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 14.1 Setting the channels on EMP 800.00 v7 (Electronic coin tester) Your UNO has been equipped with an electronic multi coin ac- The allocation of the channels to the thrown in coins can be in- ceptor (EMP). It can recognise up to 6 different types of coins. ferred from the sticker on the side cover of the electronic multiple coin acceptor. There is the possibility of closing individual chan- When a coin has been inserted, it only realises that a coin has been inserted but it does not which value the coin should have. nels. Thus the coin acceptance is blocked.
  • Page 22 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 The correlation of the channels to the thrown in coins you can You can enable and disable individual coin types with the help also see on the label on the cover from the coin tester. of certain DIP switch combinations. There are 16 DIP switches, It is possible, to blocked several coins. Thereby the coin accep- which are numbered after the upper imaging. tation is refused. 2,0 EURO 2,0 EURO 0,5 EURO 0,5 EURO 1,0 EURO Teach 2,0 EURO EURO wide middle...
  • Page 23 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Display shows Factory setting Description Payment type HappyHour Prices With the payment type Happy Hour price you have the possibility to enter three different prices, so that at different times of the day must be paid different prices for the same main time. With this adjustment you activate automatically the time/price menu, price 2 and 3. The time switch of the internal clock, in clock menu, will be activated as well. Payment type HappyHour Times With the payment type Happy Hour price you have the possibility to enter three different times, so that at different times of the day must be paid one price for different main times. With this adjustment you activate automatically the time/ price menu, main time 2 and 3. The time switch of the internal clock, in clock menu, will be activated as well.
  • Page 24 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Display shows Factory setting Description Token counter The token counter offers the possibility, to install a further counter, which counts separately the inserted token. (Else the amounts are added to the cash coun- ter). There is the possibility to activate 2 token. These indicate the value of the EMP channel 5 and 6 to the token counter 5 and 6. Please notice that the channel 6 of the EMP is equipped for Holtkamp token. Channel 5 is therefore for your own token equipped. If you liked to use own tokens, our electronic coin tester must be pro- grammed on these coins.

  • Page 25: Bus Configuration Menu

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Bus configuration menu This menu is of interest to you, if you have a data collector (DEL- TA XL or HELIOTEX). If you want to make a network, please read thoroughly the instructions that come with the software at first. In this menu, you can make settings for networking to operate the data collector. This will take you to the bus configuration menu: NEXT hold PROG You can change the values after your desire with help of PLUS press 1x and MINUS button. With NEXT button you call up the next po- sition. NEXT unhold insert master card Following menu options are successively programmable: Display shows Factory setting Description Device address Bei der Geräteadresse haben Sie die Möglichkeit, dem UNO im Bus-System...

  • Page 26: Statistics

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Statistics 16.1 Enquiring the statistic values in operation mode „Timer“ NEXT You call up the statistic menu through insert the master or re- quest card and pressing the NEXT button. With a further actuati- on of NEXT button you can leaf through. insert master card / query card The UNO offers following statistic positions... Daily cash impulse counter...

  • Page 27: Cancelling The Statistic Values Or The Counter Readings

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 16.2 Cancelling the statistic values or the counter readings Normal mode NEXT than than For cancelling the statistic values or counter readings, the DIP switch no. 3 must be set at "on" (upwards). DIP switch no. 3 can to stay in this position (manufacturing state). In normal mode you must insert the master card and actuated insert master card the NEXT button. If you actuate the PLUS and MINUS button at...

  • Page 28: Cancelling The Failure Statistics

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 16.4 Cancelling the failure statistics In normal mode you must insert the master card and actuated the PLUS button. During you hold the PLUS button, you must once actuate the NEXT button. Only than you can unhand the PLUS and NEXT button again. The display appears "Watchdog-Re- sets". If you actuate the PLUS and MINUS button at once, the...

  • Page 29: Remote Indications Incl. Connection Possibility In Uno With Or Without Remote Start

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 17.9 Remote indications incl. connection possi- lity in UNO with or without remote start The remote indication is an additional device with LED display, which shows the client the remained time, locally parted from the UNO. The remote indication is with or without remote start but- ton. If your UNO has been ordered with a remote start button you can find on the SB frame, on the inside of the back of the device, an additional circuit board, which needs to be connected to the remote indication as following: Connection to the XL with 4-pol. installation cable (shielded, The needed connection cable is not included by delivery.

  • Page 30: By Malfunctions

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 By malfunctions If your UNO does not behave as you would like, try to help your- self with the following list. If you cannot repair the problem your- self, then the trader is, of course, there to help. Malfunction Possible causes Possible remedy Fuse with continuity tester to meter, chan- Fuse damaged ge fuse The display is black no operating voltage test the mains voltage UNO wrong installed test the connection The UNO functioned, but the attached de- vice does not functioned Fuse of the switched phase defectively change the fuse of the PCB...
  • Page 31 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Malfunction Possible causes Possible remedy The value of the counters are not correct wrong channel values adjusted correct the channel values The display shows error message E03 or EEPROM memory is defect send UNO to repairation Maximum time is adjusted smaller than Adjust the maximum time or change the...
  • Page 32 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 - 32 -...

  • Page 33: Index

    Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 Index Remote indication Bus configuration menu Request card Cancel button, conntection possibility Safety notices Cancelling the failure statistics Cancelling the statistic values Specifications Statistics Chip card types Statistic values "Timer" Cleaning Cleaning button, extra connection Clock menu 18, 19 Configuration menu 20, 22, 23, 24 Time hold, extra connection Contents Time hold, power depending...
  • Page 34 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 - 34 -...
  • Page 35 Holtkamp Electronics UNO 7600XL engl. techn. Stand 04.2016 4050_04.2016 V09.2019 - 35 -...
  • Page 36 For technical information during our business hours: Monday - Thursday 8.00 a.m. - 16.00 p.m. and Friday 8.00 a.m. - 13.00 p.m. choose: +49 541 97120-0 or visit our homepage: www.holtkamp.de Technical Stand 09.2019 / We reserve the right to technical changes in the production and technical developments. Südstraße 40, D-49084 Osnabrück Phone: +49 541 97120-0 info@holtkamp.de...
