Installation and User's Guide
Installation and User's Guide

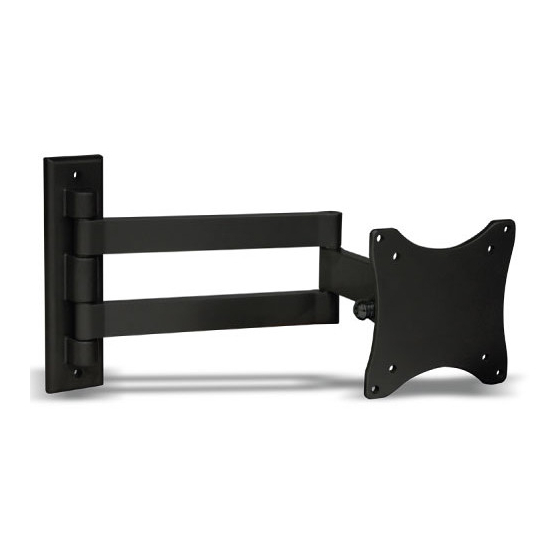

FLAT LCD DISPLAY MOUNT MODEL
WB-30 WALL MOUNT BRACKET
http://www.orionimages.com
All contents of this document may change without prior notice, and actual product appearance may differ
from that depicted herein
Advertisement
Table of Contents
Related Manuals for Orion OIC WB-30
Summary of Contents for Orion OIC WB-30
- Page 1 Installation and User’s Guide Installation and User’s Guide FLAT LCD DISPLAY MOUNT MODEL WB-30 WALL MOUNT BRACKET http://www.orionimages.com All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
- Page 2 Installation and User’s Guide http://www.orionimages.com 1. Dimension of Bracket ® This mount is designed for LCD VESA Standard Screens with a screen size from 10" to 23" and weight up to 15Kg. It has a twin arm design that allows for full flexibility when mounting your screen - it can mount the screen flat to the wall or extend out to up to 370mm from the wall.
- Page 3 Installation and User’s Guide http://www.orionimages.com 2. Installation 100mm x 100mm VESA Screw securely the base to the wall 75mm x 75mm VESA Tighten joints by Allen key Folded to mount monitor flush to wall NOTE The Allen Key are provided to get your desired tilt. To avoid extrusion to fingers, please keep your hands off the bar when adjusting the bracket.
