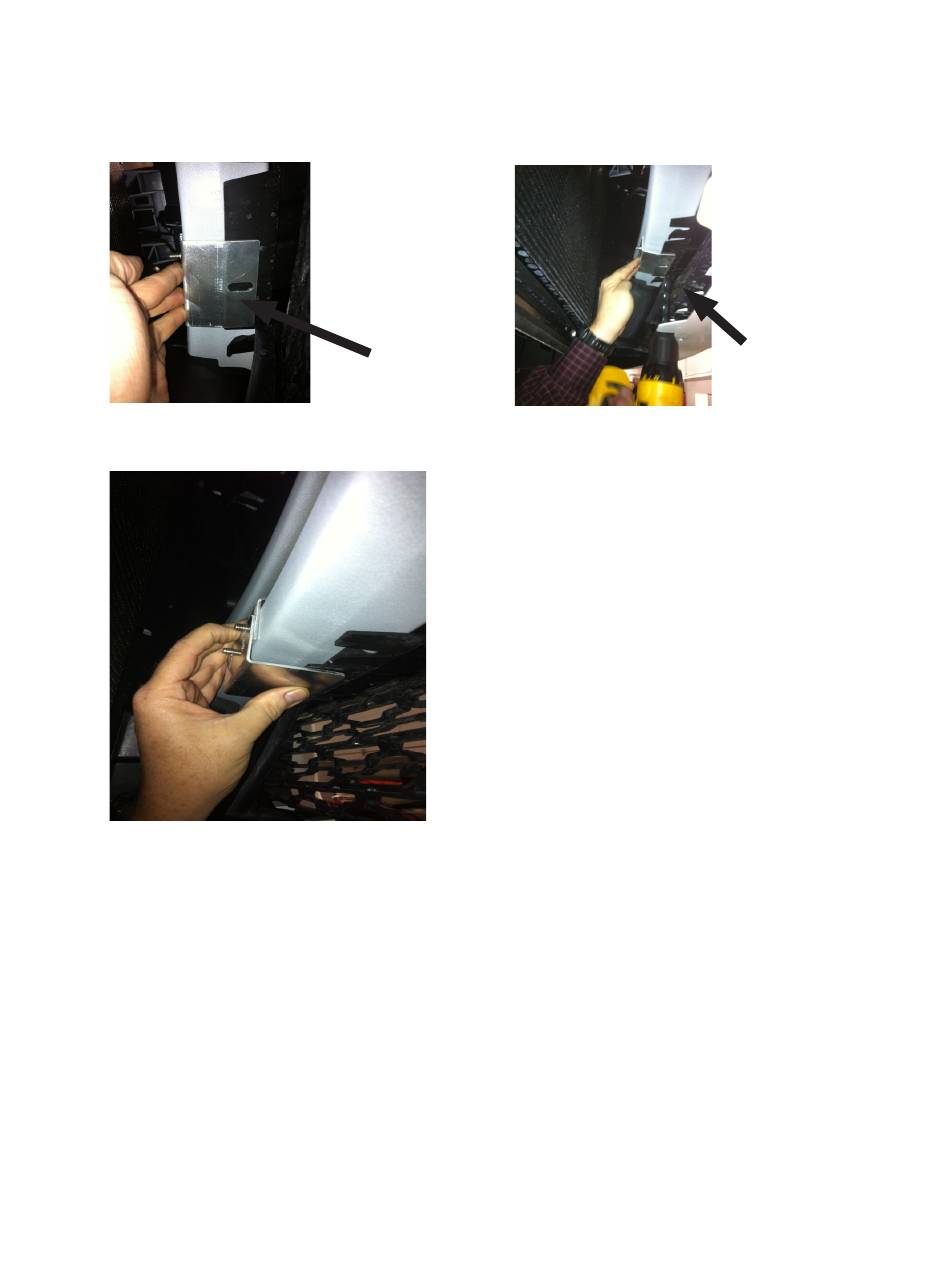

3. USE TOP PLATE BRACKET WITH (2) 1/2" STUDS AS A LOCATION GUIDE FOR
DRILLING (1) 5/16" DIA HOLE THROUGH BOTTOM (2) LAYERS OF BUMPER RAIL.
THE HOLE IS ACTUALLY DRILLED THROUGH THE PLASTIC BUMPER COVER
7. PLACE 5/16" SPLIT WASHER AND 5/16 NUT ON CARRIAGE BOLT AND TIGHTEN
WITH WRENCH UNTIL LOCK WASHER IS FULLY COMPRESSED.
8. ATTACH SPEAKER MOUNTING BRACKET ONTO SPEAKER HOUSING (MAKING
SURE SPEAKER IS CORRECTLY ORIENTATED FOR PROPER DRAINAGE.
9. PLACE SPEAKER MOUNTING BRACKET OVER 1/2" STUDS ON BUMPER AS-
SEMBLY AND INSTALL USING (2) STAINLESS STEEL KEPS NUTS PROVIDED WITH
KIT.
10. WIRE INSTALLATION AS DESIRED - NOTE: GRILL BRACKET LIGHTS CAN BE
EASILY INSTALLED FROM UNDER THE FRONT OF THE VEHCLE AT THE SAME
TIME WHEN SPEAKER BRACKETS ARE INSTALLED.
11. RE- INSTALL BOTTOM SPLASH GUARD.
USE TOP PLATE AS
GUIDE
4. PLACE BOTTOM PLATE BRACKET
UNDER BUMPER RAIL AND INSERT 2.5"
CARRIAGE BOLT UP THROUGH 5/16" DIA
HOLES IN LOWER BUMPER PROFILE.
5. PLACE TOP PLATE WITH SLOT OVER
CARRIAGE BOLT END TO FORM A "CLAM
SHELL" AROUND LOWER HALF OF
BUMPER RAIL.
6. (2) 1/2" LONG 1/4" DIA STUDS ON TOP
PLATE ALIGN WITH SLOTS IN LOWER
PLATE AS SHOWN.
DRILL (1) 5/16" DIA.
HOLE THROUGH
BOTTOM AND TOP OF
LOWER BUMPER RAIL
PROFILE
