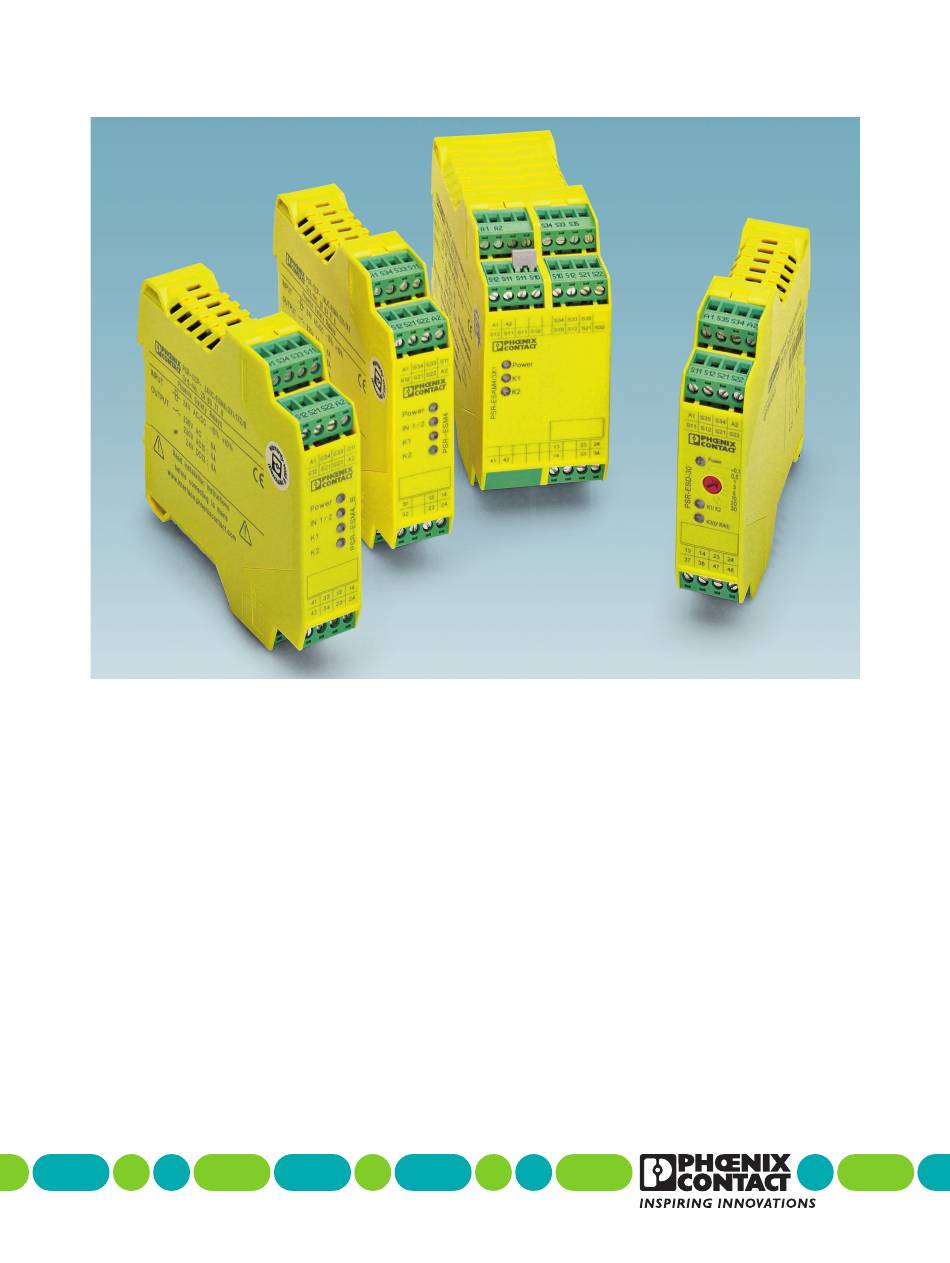

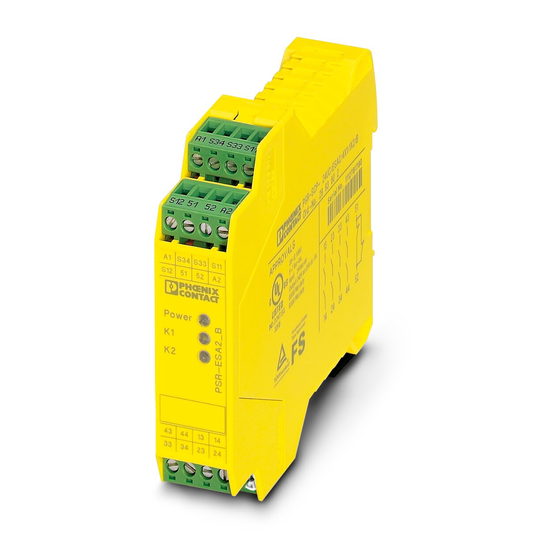

Application manual for PSRclassic and
PSRmultifunction safety relays, and the
modular safety relay system
