Motorized floor nozzle maintenance

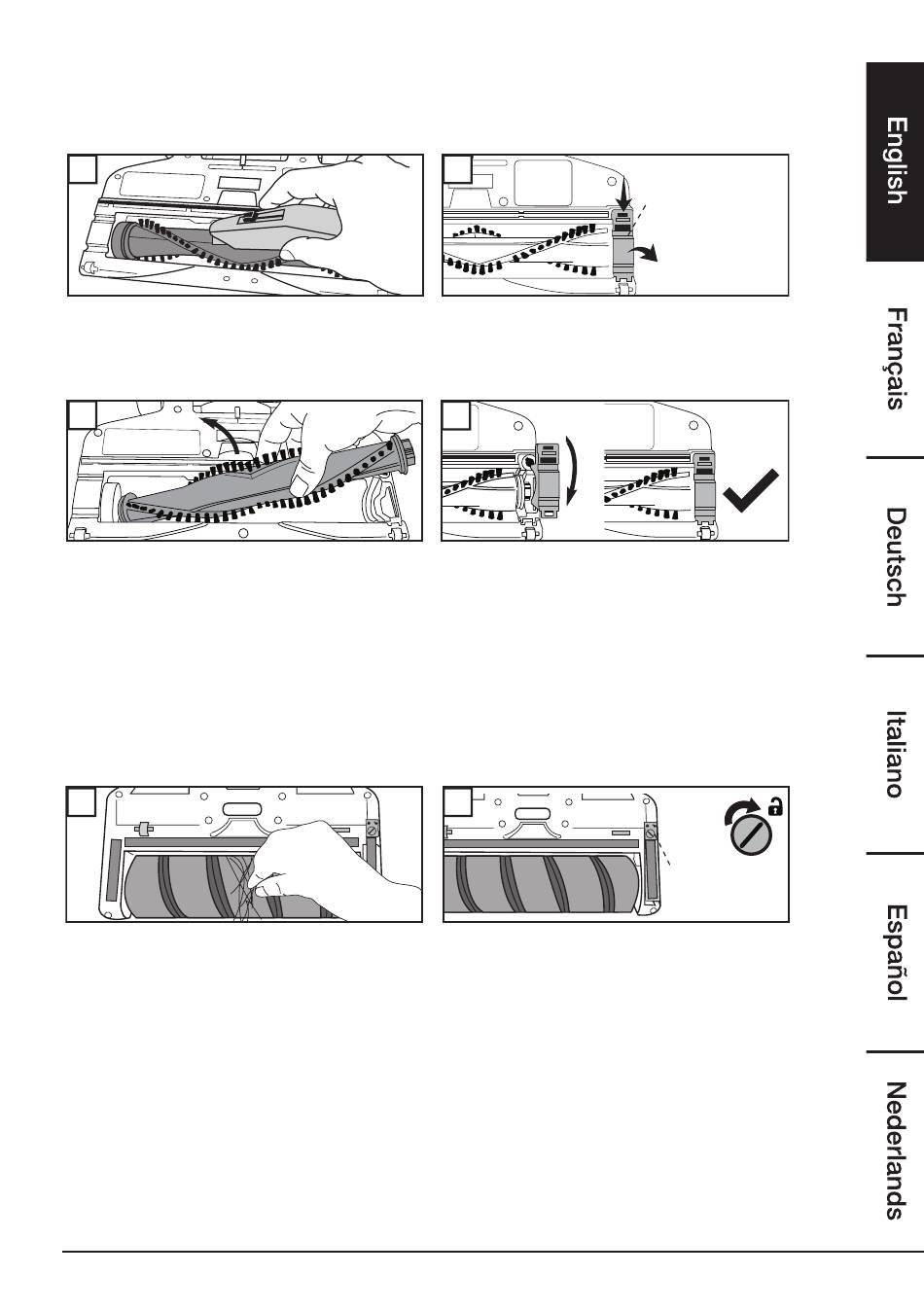

1. Place the motorized floor nozzle (C) upside down. Use scissors or knife to cut
strings and threads.
1.
2. If debris cannot be removed easily, remove retainer clip to remove the brush
roll (23).
3. Remove the brush roll (23) and clean debris.
3.
4. To reassemble:
– Align one end of the brush roll (23) with the floor nozzle gear.
– Press the other end into the slot.
– Hook retainer clip under the tab and press down.
Motorized plush nozzle maintenance (only for B07SG47LWK and B07SG48G4S )
1. Place the motorized floor nozzle (G) upside down. Use fingers to remove clog or
debris. Do not use scissors or knife to cut strings and threads. If debris cannot be
removed easily, remove retainer clip to remove the brush roll (23).
1.
2. Remove the retainer clip by using a flathead screwdriver or a coin and remove the
brush roll (23).
2.
4.
2.
Retainer clip
Retainer clip
