Why isn't my work switch functioning?

1. If the work switch indicator is showing that it's disengaged while the implement is in the
ground and engaged while it is out of the ground, verify that your work switch
configuration is correct.
a. Tap the settings
b. Ensure that the Work Switch Inverted setting is correct based on your work switch
method.
2. Make sure the work switch ECU is connected (a Wi-Fi symbol will display over the ECU
on the app if it is disconnected).
3. Ensure that your ECU serial numbers are set up in the correct order. For example, you
might have set up the ECUs on the manifolds from left to right (from the perspective of

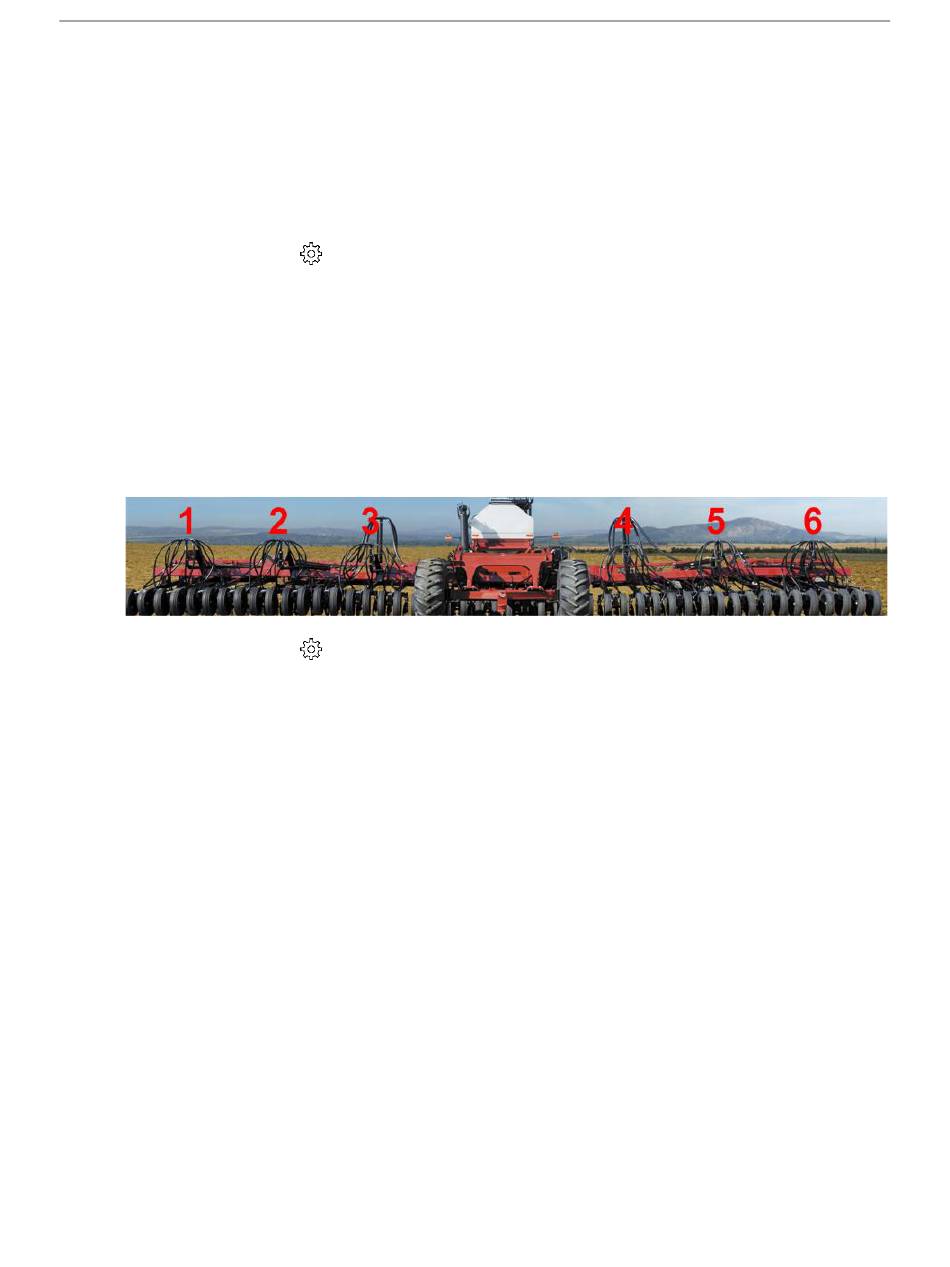

standing behind the tractor), but entered them in the app from right to left. The illustration
below shows a left to right setup.
a. Tap the settings
b. Verify that the ECU serial number listed next to Work Switch is the one that is
plugged into the work switch on the implement.
4. Verify that the work switch ECU's Power LED is illuminated and flashing.
5. Verify that the correct ECU serial number is selected as the work switch ECU in the app.
6. If you're using the magnetic work switch, verify that the work switch is installed an
appropriate distance from the magnet. The magnet can activate the work switch up to 4
inches away.
7. Try to connect the work switch harness to another ECU.
