Controls

Features and appearance will vary.
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
G
Controls

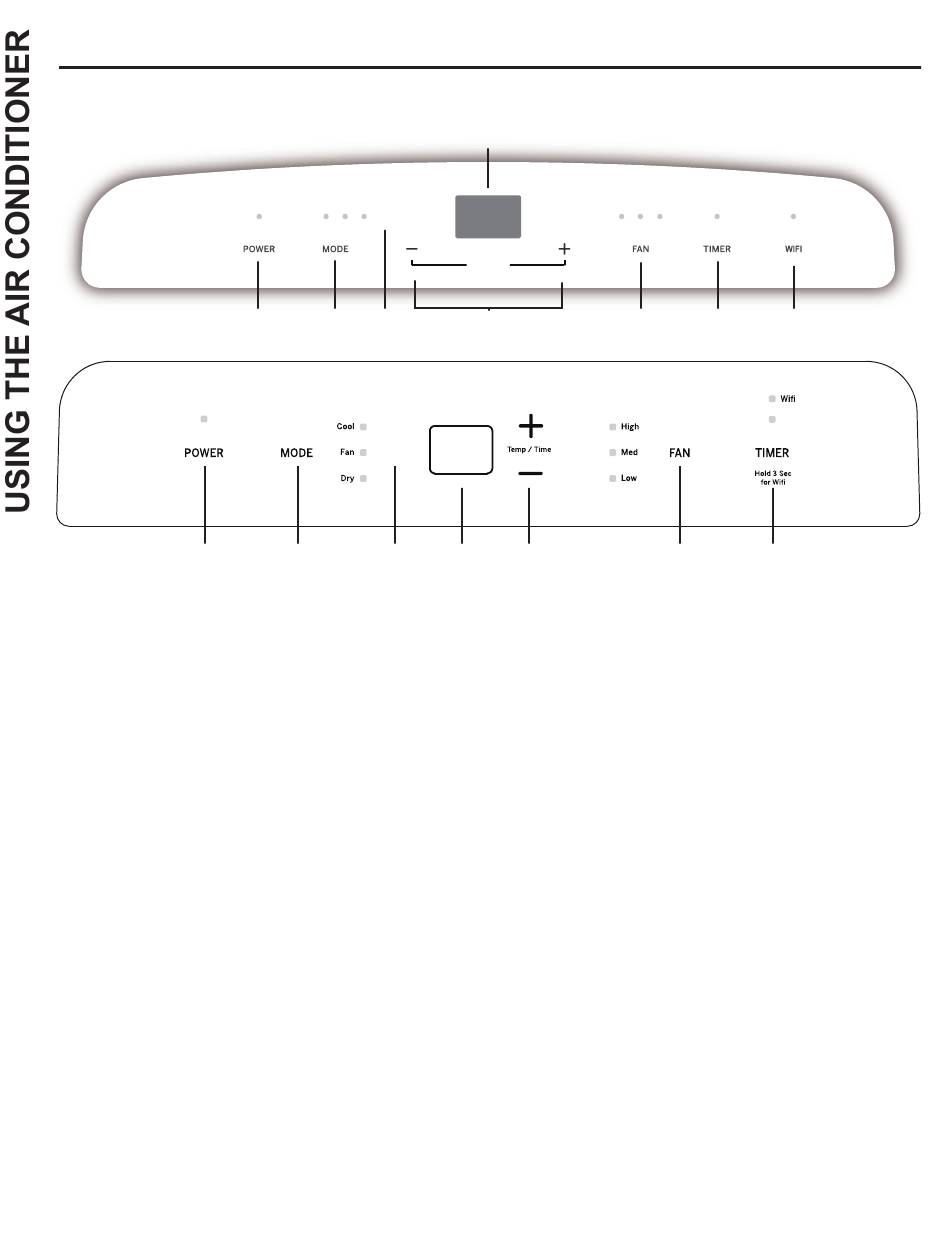

A. CONTROL PANEL DISPLAY
Displays the Set Temperature in degrees Fahrenheit or
degrees Celsius, or the hours remaining in a Time Delay.
The corresponding indicator light will illuminate.
B. Power Button
Turns ON/OFF power to the air conditioner.
NOTE: Turning off power by pressing the Power button
does NOT disconnect the appliance from the power
supply.
• Press the Power button. The Power indicator will illuminate.
C. Mode Button
Press the Mode button to toggle among the operating
options. The corresponding indicator will illuminate:
Cool – Cools the room to the set temperature
Dry – Reduces the humidity in the room
Fan – Circulates the air in the room without cooling.
D. Remote Control Signal Receiving Window
Aim the Remote Control at this window so the Control will
receive the signal.
E. Up and Down Arrow Buttons
Adjusts the Temperature or Hours in Time Delay.
To Set the Temperature:
The temperature can be set between 61ºF and 89ºF (17ºC
and 30ºC) when the air conditioner is in Cool mode.
1. Press the Mode button until the Cool mode is selected.
2. Press the Up Arrow or Down Arrow buttons to select the
Temperature.
NOTE: The temperature cannot be set when the air
conditioner is in either Fan or Dry mode.
4
Cool Fan Dry
B C D
F C
A
Low
Temp / Time
E
D E
F. Fan Speed Button
The fan speed can be adjusted from Low speed, Medium
speed, to High speed when the air conditioner is either in
Cool or Fan mode.
NOTE: The fan speed cannot be adjusted when the unit is
in Dry mode.
• Press the Fan Speed button to toggle among the three
speeds. The corresponding fan speed indicator will
illuminate.
G. Timer Button
Program a time from (1-hour to 24-hours) for the air
conditioner to turn Off or On. When a Time Delay is
programmed, the Timer indicator light will illuminate.
While the air conditioner is operating:
1. Press the Timer button.
2. Press the Up/Down arrow buttons to select the number of
hours you want the air conditioner to continue to operate
before turning Off.
NOTE: Wait approximately 5 seconds for the Turn-Off time
to be saved.
While the air conditioner is off:
1. Press the Timer button.
2. Press the Up/Down arrow buttons to select the number
of hours you want the air conditioner to remain off before
turning On.
NOTE: Wait approximately 5 seconds for the Turn-On time
to be saved.
To cancel the timer:
• Press the Timer button once, the hours remaining will flash,
press the timer button again and the timer will be canceled.
H. WiFi Connect Pad (on some Models)
1. Connect your air conditioner to WiFi router.
2. Press and hold the timer button for 3 seconds to connect
the app or disconnect the app.
Refer to the "WiFi Set up" section for more information.
Med High
F G H
(on some models)
