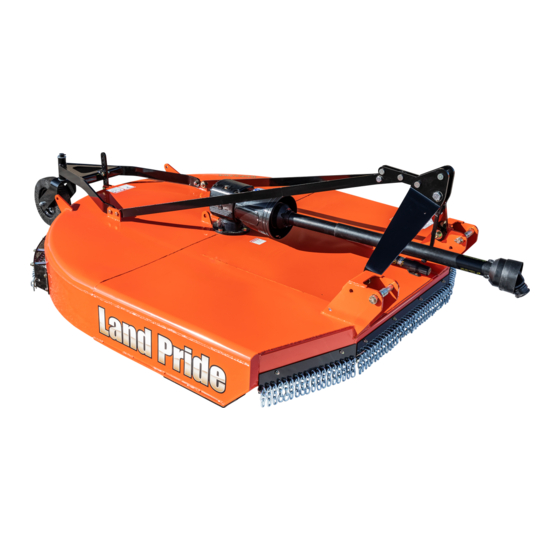

Rotary Cutters
RCF2760 and RCF2772
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!

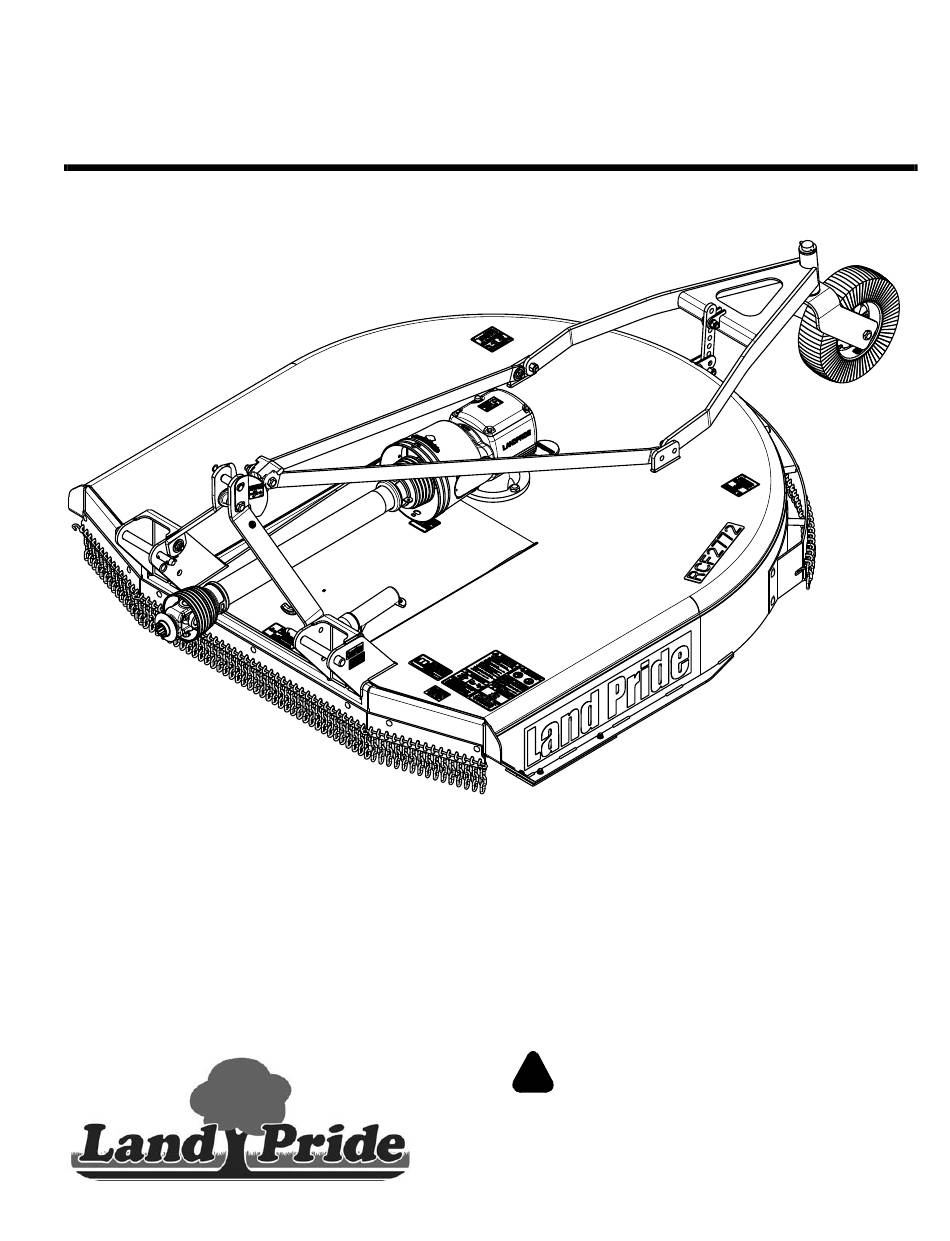

Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
326-460M
Operator's Manual
Printed 7/10/20
30945
Advertisement
Related Manuals for Land Pride RCF2760
Summary of Contents for Land Pride RCF2760
- Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 7/10/20...
- Page 2 Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
- Page 4 Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 5 Important Safety Information Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look For The Safety Alert Symbol Careful operation is you best The SAFETY ALERT SYMBOL indicates there is a insurance against an accident.
- Page 6 Replace parts on this implement correct tools and equipment. follow all shutdown procedures with genuine Land Pride parts only. Always properly match the wheel before leaving the operator’s seat to Do not alter this implement in a way size to the properly sized tire.
- Page 7 Use Safety Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery Land Pride recommends the use of a CAB or roll-over-protective- Slow moving tractors, and tractor Never carry riders or use structures (ROPS) and seat belt self-propelled equipment can to lift or transport individuals.
- Page 8 Important Safety Information These are common practices that may or may not be applicable to the products described in this manual. Avoid crystalline Silica Be aware of and follow OSHA If possible, change into disposable (or other local, State, or Federal) or washable work clothes at the (quartz) Dust guidelines for exposure to airborne...
- Page 9 Important Safety Information This page left blank intentionally. 7/10/20...
- Page 10 Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
- Page 11 Table of Contents Important Safety Information 818-142C Danger: Rotating Driveline 30947 818-556C Danger: Thrown Object 30947 818-564C Danger: Rotating Blades 30947 818-543C Danger: Guard Missing (2 places) 30948 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 12 Table of Contents Important Safety Information 30947 30947 818-130C Warning: 540 rpm 24597 818-552C Danger: Rotating Driveline 24597 818-540C Danger: Guard Missing RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 13 3 inches in diameter with a blade tip speed of 12,384 FPM for the RCF2760 and 14,861 FPM for the RCF2772. These units come equipped standard with a 3/16" thick heavy-duty stump jumper and replaceable bolt-on skid shoes.
- Page 14 (#8) in with a hammer. 4. Install third machine washer (#7) over tailwheel spindle and secure with 3/8" x 2 1/2" roll pin (#8). RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 15 (#5). Draw nylock nut up tight, do not top of gearbox and replace with vented dipstick. See your torque tight. nearest Land Pride dealer if dipstick is missing. 6. Tighten hex nut (#4) until lock washer (#6) is squeezed flat.
- Page 16 Table of Contents Section 1: Assembly & Set-up 30953 NOTE: Land Pride’s Quick Hitch can be attached to the tractor to provide quick and easy 3-point hook- up and detachment. See your nearest Land Pride dealer to purchase a Quick-Hitch.
- Page 17 540 rpm. Do not exceed 540 rpm power take-off speed or equipment breakage may result. 8. The tractor’s lower 3-point arms should be adjusted for lateral float. Please consult your tractor’s manual. 9. Continue with “Check Driveline Interference” on page 15. 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 18 6. Hold inner and outer drivelines parallel to each other. If dimension “A” is greater than or equal to 1", then skip to “Check Driveline Maximum Length” on page 15. Otherwise continue with step 7. RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 19 Start tractor, raise implement slightly, and drive forward enough to clear the support blocks. 8. Lower implement to ground and shut tractor down using “Tractor Shutdown Procedure”. 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 20 It is best to operate the cutter when no one is nearby. Stop blade rotation if someone is in or around the area. 30954 Front Chain Guard (Single and Double Chain) Figure 2-2 RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 21 2. Remove carriage bolts (#1) and Rear Metal Band Deflector (#2). 3. Reattach whiz nuts (#3) and carriage bolts (#1) to metal band deflector (#2) for safe keeping. Rear Chain Guard (Single and Double Chain) Figure 2-4 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 22 8. Set tractor’s 3-point hydraulic control stop once the tailwheel and 3-point arms are adjusted properly. 30957 Set Front Blade Tip Set Rear Blade Tip Slightly Blade Tip Blade Tip At Cutting Height Higher Than Cutting Height Cutting Height Figure 3-1 RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 23 3-point hitch pins. This arrangement allows for optimum ground contour following performance. 3. Lock tractor center link in this position once correct length is achieved. Adjustment on center 3-point link can be made depending on customer’s preference. 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 24 A person’s body and/or clothing can become wait for blades to come to a complete stop before entangled in the driveline. dismounting tractor. RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 25 2. Disengage power take-off, place gear selector in park, set park brake, shut tractor off, and remove switch key. Make sure cutter blades have come to a complete stop before dismounting from tractor. 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 26 Mark any potential hazards. and remove switch key. Stay on tractor until blades 2. Follow “Blade Engagement” instructions on right have come to a complete stop. side of this page to start cutter blades turning. RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 27 With a little practice you will be everything is still running smoothly, once more raise the pleased with what you and your Land Pride Rotary Cutter cutter to cutting height to check for driveline bind or can do.
- Page 28 Always use a new locknut when installing blades. treating, cold treating, or by any other method. Always replace blades with new Land Pride blades to assure safety. IMPORTANT: Examine blade bolts (#1) and flat washers (#2) for excessive wear and replace if worn.
- Page 29 5 840-273C PLUG LP 3" ID RUBBER made on the clutch plates have changed position. 6 820-137C RCF2760 BLADES 1/2" x 4" x 25"LG. CCW Slippage has not occurred if any two marks on the 6 820-168C RCF2772 BLADES 1/2" x 4" x 29"LG. CCW friction disc and plate are still aligned.
- Page 30 There are skid shoes mounted on the cutter sides. Check both skid shoes for wear and replace if necessary. Order only genuine Land Pride parts from your local Land Pride dealer. Remove 3/8" hex whiz nuts (#3), 3/8" plow bolts (#2), and skid shoe (#1) as shown.
- Page 31 4. Repaint parts where paint is worn or scratched to prevent rust. Ask your dealer for Land Pride aerosol touch-up paint. Paint is also available in touch-up bottles with brush, quarts and gallon sizes by adding TU, QT, or GL to the end of the aerosol part number.
- Page 32 IMPORTANT: Use a suction or siphon pump to drain Quantity = Fill until oil reaches top mark on dipstick or gearbox of oil when there is not an oil drain plug. begins to flow out side plug hole in gearbox. RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 33 Driveline Shield Bearings Type of Lubrication: Grease Quantity = 6 pumps 30949 Hours Driveline Profiles Quantity = Clean & coat inner tube of driveline with a light film of grease and then reassemble. 14618 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 34 4.00" x 8" x 15" (10.2 cm x 20.3 cm x 38.1 cm) Laminated tire with cast iron Tailwheel hub and tapered roller bearings Front Guard Optional: Rubber Belting or Single Chain Guard Rear Guard Single Chain Guard RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 35 Table of Contents Section 6: Specifications & Capacities RCF2760 = 110 1/2" (2.81 m) RCF2772 = 123 1/4" (3.13 m) 30964 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 36 Section 7: Features & Benefits RCF2760 & RCF2772 Models Features Benefits Surpassed rugged All Land Pride Cutters have been designed and tested and meet rigorous voluntary industry standards testing procedures specified by ANSI. 5 Year gearbox warranty Shows our confidence in the gearbox integrity.
- Page 37 Replace driveline Blades loose Tighten blade bolts Blade carrier bent Replace blade carrier Excessive vibration Blade broken Replace blade Blade will not swing Remove and inspect blade Blades have unequal weight Replace both blades 7/10/20 RCF2760 and RCF2772 Rotary Cutters 326-460M...
- Page 38 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. Additional Torque Values Blade Bolt Lock Nut 450 ft-lbs Blade Carrier Hub Nut 450 ft-lbs Minimum RCF2760 and RCF2772 Rotary Cutters 326-460M 7/10/20...
- Page 39 This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
- Page 40 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
