Land Pride Razor Harness Update Kit 356-142A Assembly Instructions

Wiring Harness Update Kit
Assembly Instructions
Razor Series ZR44 & ZR52

Before You Start

When you see this symbol, the subsequent
!
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
These instructions contain only information required to
assemble the Wiring Harness Kit to the Razor Series
ZR44 & ZR52 Riding Mowers. A detailed Operator's
Manual was supplied with the Razor. Refer to the
Operator's Manual for additional specific information
especially information relating to safety concerns. Also
included in the Operator's Manual is important
information on operation, adjustment, troubleshooting,
and maintenance for this attachment (some manual
sections do not apply to all options).
A separate Parts Manual for replacement parts can be
purchased from your dealer or available free of charge at
www.landpride.com. Have model and serial numbers
handy when placing an order.
Manual Part Numbers:
• Operator's Manual . . . . . . . . . . . . . . . . . .356-059M
• Parts Manual . . . . . . . . . . . . . . . . . . . . . . . 356-059P

General Information

Some ZR44 & ZR52 Razors may be experiencing a small
drain on the battery when units are parked and the
ignition off. Over time this small electrical drain can
deplete the battery to a point that it fails to start the
mower. If a unit is experiencing a repeated battery
discharge for no obvious reason, installation of this
simple kit will eliminate that condition.
These assembly instructions apply to the Razor ZR44
and ZR52 Kit Number:
356-142A RAZOR HARNESS UPDATE KIT

Tools required:

•
Electrical Tape
•
Wire Cutters
•
Wire Stripper
•
Electrical Wire Crimpers
•
Two 10 mm Metric Wrenches
•
Terminal Removal Tool or
a Small Thin Bladed Screw Driver
© Copyright 2005 Printed 1/16/07
Instructions For Kit No 356-142A
A detailed listing of parts for wiring harness update kit
No. 356-142A is provided on page 4. Use this list as a
checklist to inventory parts received.
1. Park mower on a flat surface and move control levers
to park.
2. Turn off engine and remove ignition key.
3. Raise seat deck fully up.

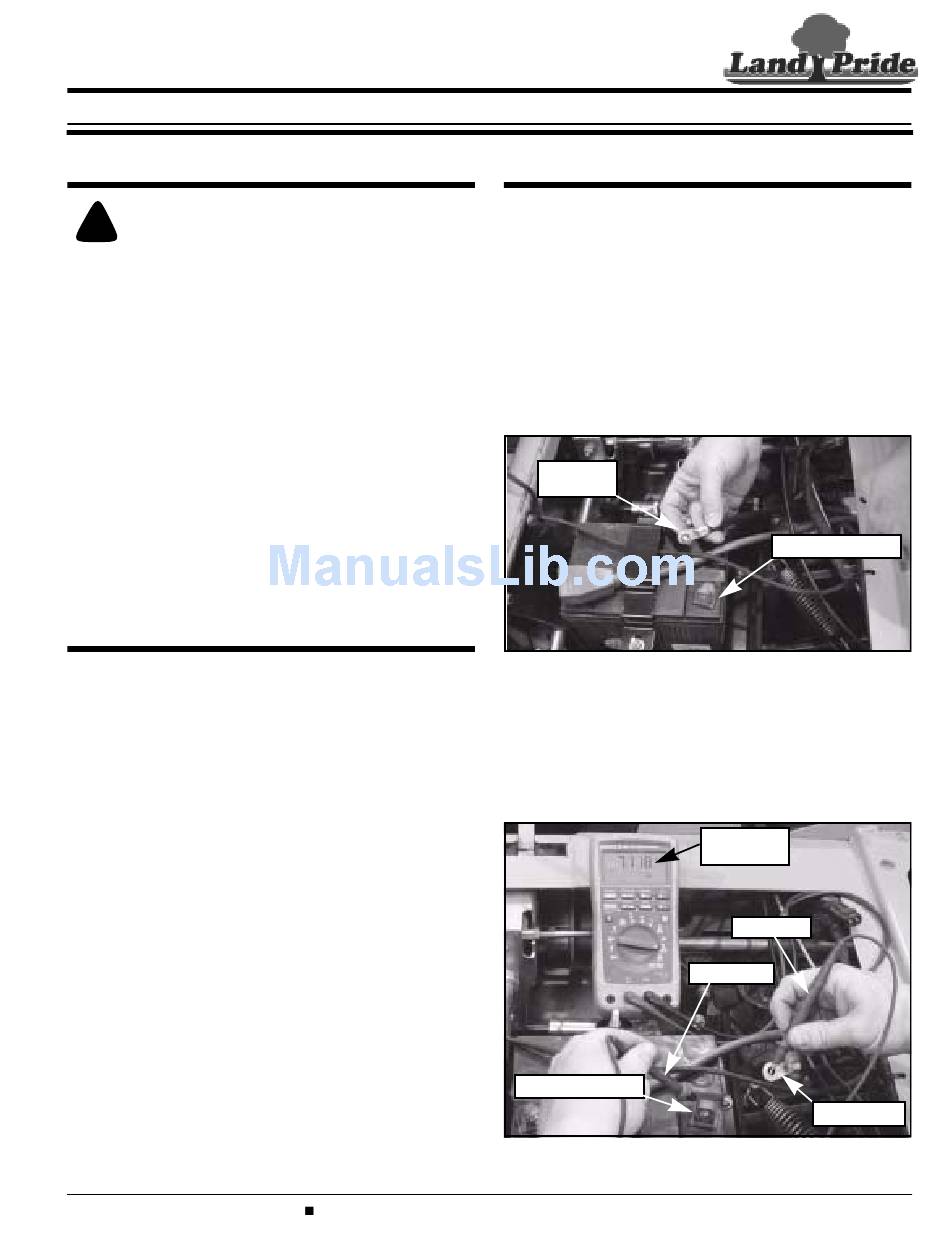

Refer to Figure 1:
4. Disconnect negative ground wire (black wire) from
the battery's negative post ( - ). Place ground wire in
a location where it cannot touch the battery posts.
Negative
Ground
Remove Ground Battery Connection
Figure 1
Refer to Figure 2:
5. Check battery drain with an amp meter by placing
black probe on the negative battery post and red
probe on the ground wire as shown. A drain of 7
milliamps or more is an indication that it would be
helpful to install this wiring harness kit.
Negative Post (-)
Battery Drain Check
Figure 2
Manual No. 356-141M
Negative Post (-)
7 milliamps
or greater
Red Probe
Black Probe
Ground wire
Manual No. 356-141M
23811
23812
