User's manual
IMPORTANT INFORMATION
To ensure the optimal functioning of your camera, please note the following important
information:
MicroSD card:
• Please ensure your memory card is formatted in the camera before first using the
card for the first time (Settings > Format).
• The maximum capacity memory card supported is 64GB.
Use of memory cards exceeding the maximum recommended capacity may result in
file errors.
• For best results, we recommend using high quality Micro SD cards Class 10 with U3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Easypix GOXTREME BARRACUDA 4K
Summary of Contents for Easypix GOXTREME BARRACUDA 4K
- Page 1 User’s manual IMPORTANT INFORMATION To ensure the optimal functioning of your camera, please note the following important information: MicroSD card: • Please ensure your memory card is formatted in the camera before first using the card for the first time (Settings > Format). •...
- Page 2 High Speed or higher. Ensure a U3 rated memory card is used when recording 4K video. Using a lower rated card may present data transfer speed issues due to the large file size a 4K video produces. • The recording time depends on the selected resolution. •...
- Page 3 resolution higher than 1080p. Files using any resolution higher then 1080p can only be accessed via your computer using a card reader. Safety instructions: WARNING: The camera is not suitable for children under 36 months because of choking hazard. WARNING: •...

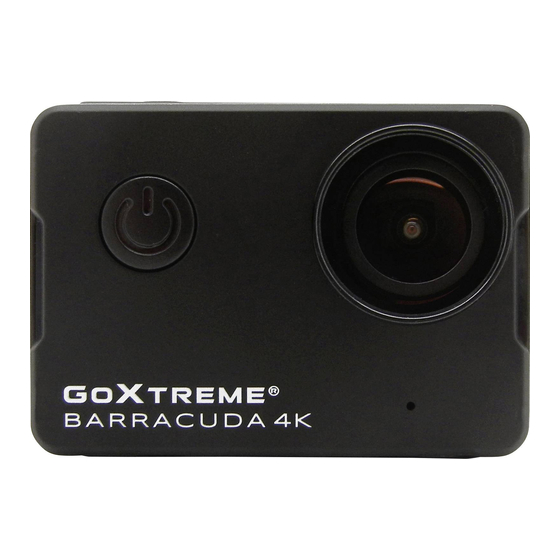

- Page 4 The camera...
- Page 5 1.Power button: Short press to turn on camera, long press to turn off camera; Short press to capture a photo while recording video. 2.OK button: In Standby mode - short press to start/stop the recording; In Picture mode - short press to take a picture; In Playback mode - short press to start/pause playback;...
-
Page 6: Camera Operation
Camera operation Power on/off Power on: Short press the power button, screen shows start up picture, the blue working indicators will light up and the camera enters standby mode. Power off: When camera is on, long press power button to switch the camera off. Battery charging Connect camera with power charger via USB cable, the red light will illuminate. - Page 7 Video interface 1.Recording mode icon 2.Frame rate 3.Video resolution 4.Remaining memory card capacity (Hrs, Mins, Secs) 5.Battery icon 6.Menu (Menu options will appear or hide by tapping this icon) Please note: 4K resolution doesn’t support “WIFI, zoom function and time lapse”. Please set “capture timing”...
-
Page 8: Picture Mode
Picture mode Picture interface 1.Photo mode icon 2.Picture size 3.Memory card capacity remaining (No. of photos that can still be captured) 4.Battery icon 5. Menu (Menu options will appear or hide by tapping this icon) - Page 9 Camera default setting is Video mode, click on the screen to enter Main menu and choose Picture mode. Point at the object you want to capture and press the OK button. The camera will save pictures automatically. Capture function 1. Capture manually: Press power button to take a picture under recording when “Capture timing”...
-
Page 10: Playback Mode
Playback mode 1.Picture files 2.Video files Selects the picture or video you need to view. Swipe across camera’s screen in order to access the last or the next file. Tap the menu icon to enter the corresponding file protect or delete. Menu Setting In standby mode, click to enter the menu setting, click... -
Page 11: Install And Use Wifi
Install and use WIFI Search for the "iSmart DV" in Google Play or IOS APP store to download the correct WIFI APP. Install the APP in your smart phone. Long press the camera’s OK Button to activate the camera’s WIFI, the camera screen will display ”Barracuda”. -
Page 12: Connect Hdmi
Connect HDMI Connect your camera to a HDMI equipped TV using a HDMI cable. All operations will be displayed on your TV screen. Note: Viewing of 20MP pictures is not supported via the HDMI connection. Playback on PC Connect your camera to your PC and open the camera icon, the screen will display: “MSDC”... -
Page 13: Technical Specification
Technical specification Waterproof 10m without waterproof case Sensor 16MP CMOS Sensor Image size 20M (interpolated) / 16M / 12M / 8M / 5M / 3M Resolution 4k 25fps/2.7k 30fps/1080p 60fps/1080p 30fps 720p 120fps/720P 60fps/720p 30fps Video quality Super fine / Fine / Normal Slow Motion Off / Auto Time Lapse... - Page 14 *Under water you need to use the buttons to operate the camera. All product specifications are correct at time of print and are subject to change without prior notice. Easypix GmbH reserve the right for errors or omissions. For technical help please visit our support area on www.easypix.eu.
- Page 15 CONFORMITY The manufacturer hereby declares that the CE marking was applied to the product GoXtreme Barracuda 4K in accordance with the basic requirements and other relevant provisions of the following CE Directives: 2014/53/EU 2011/65/EC RoHs 2014/30/EU EMV 2012/19/EC WEEE Declaration...
- Page 16 DISPOSAL Dispose of packaging For disposal, separate packaging into different types. Cardboard and board must be disposed of as paper and foil must be recycled. Disposal of Waste Electrical and Electronic Equipment and/or Battery by users in private households in the European Union This symbol on the product or on the packaging indicates that this cannot be disposed of as a household waste.
- Page 17 handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment and/or battery. For more information about recycling of this equipment and/or battery, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.
- Page 18 The camera is not suitable for children under 3 years because of choking hazard.
