- Page 1 User’s manual...
-
Page 2: Overview Of The Product
Thank you for buying the GoXtreme WiFi Speed action camera. Before start using this product, please read this manual carefully to maximize its performance and extend the life of the product. Overview of the product Overview of the product u It is compact in size and convenient for installation;... -
Page 3: System Requirements

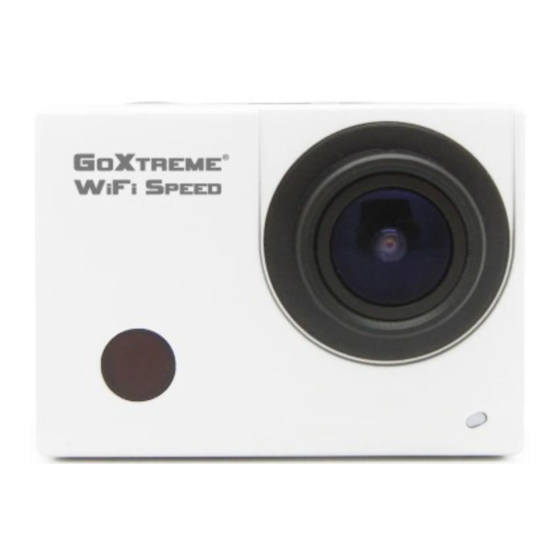

System Requirements System Requirements Operating MSDC Microsoft Windows 2000, XP, Vista, 7, 8 System Mac OS X10.0.0 or above version Intel Pentium of more than 1GB Hz or other CPU with equivalent performance Internal Memory Larger than 1GB Sound Card and Display The sound card and video card shall support DirectX8 or higher Card version. - Page 4 Introduction to appearance and keys Introduction to appearance and keys Lens Infrared remote control lamp Charging /Busy indicator Busy indicator Display/Menu key 2.0’’ HD LCD Microphone...
- Page 5 Shutter/OK key Power/Mode key Battery door Speaker Micro SD Card Wifi/Down key Micro USB port HDMI port...
- Page 6 Start using _______ _______ Start using 1. Charge the built-in lithium battery USB cable Connect the camera to the computer for charging and then switch off the camera. At this time, the charging indicator will be in blue, and it will turn off when battery is fully charged. Generally, it takes 2-4 hours to charge the battery.
- Page 7 2. Use the storage card 1. Push the TF card into the slot till it is in place as per the instruction in concavely engraved words by the storage card slot. 2. To take out the TF card, press the tail of the storage card inwardly softly and it will be popped out. Note: There’s no built-in memory unit in the camera, so make sure to insert a storage card into it prior to use (it is recommended that a TF card of better quality be used).
- Page 8 3. Power on/off 3.1 Power on: Press Power key for 3 seconds, the screen will be on and the camera will be started. 3.2. Power off: Hold on Power key for 3 seconds when the camera is in the idle state to turn it off. 3.3.
-
Page 9: Video Recording Mode
Video recording mode Shooting mode Note: By turning the camera off, the actual mode settings will be automatically saved for the next use. - Page 10 5. Indicator Busy indicator (red): When the camera is busy such as recording videos, shooting photos and turning off screen automatically, the work indicator will flicker. Charging indicator (blue): When it is on, the user is prompted that the camera is being charged and it will be off after charging is completed.
- Page 11 7. Shooting mode After power is on, press Power key twice to enter shooting mode, and in preview state, press Shutter key to take a photo: 1. Icon of mode, indicating the current is shooting mode; 2. Size of video, and 4M/5M/8M/16M is optional; 3.
- Page 12 8.2 Introduction to play screens 8.2.1 Screens of video files 1. Icon of replay mode; 2. Indicate serial number of current file/ total number of files; 3. Indicate parameter of recording time; 4. Operation icons 5. Indicate recording time point. 6.
- Page 13 8.2.2 Screen of photos In replaying, Press WIFI key to select other file type, in a circulating way. 9. Menu operation There is a different menu in each working mode as shown in the following figures: Menu for video recording Menu for shooting mode Menu for setting mode Menu for replay mode...
- Page 14 Operation: Press Menu key, the menu for this mode will be displayed on the LCD. At this time, press Power key to move the cursor leftward or rightward and select on the menu, and press WIFI key to move the cursor upward or downward and select on the menu in a circulating way.
-
Page 15: Remote Controller
Remote controller Remote control button instructions The use of remote control You can take a photo/video or power off the camera by using a remote controller. Make sure the signal emission port of the remote controller face to the infrared light window of the camera while pressing button to control the camera. - Page 16 Remote controller battery replacement When the remote control battery is low, need to replace the battery, please be careful to open the battery door with a coin, avoid scratching the battery door. When replacing the battery, put a coin inside the groove in the middle of the battery cover, to unscrew battery cover according to direction and replace old battery (when put the new battery, please note the positive and negative pole), then put the battery cover and screw till tighten.
-
Page 17: Connect Device To Hdtv
Connect device to HDTV: Connect the video camera to an HDTV with a HD cable as shown in the following figure, display signals in the camera will be output into the HDTV automatically, and you can browse HD videos and photos that are recorded or taken in the HDTV. - Page 18 APP (for Android and IOS System) I. How to Obtain the APP Installation Program 1. For the Android System, you can search “SYMAGIX2” in the Play Store to obtain corresponding installation programs, and then you can install them according to the indicated steps or through scanning the two-dimensional code 2.
- Page 19 Camera WIFI and System Applications Android Applications 1. Please install the SYMAGIX2 application program (provided by the Supplier or the Internet) for the Android mobile phone or tablet PC, and then the Display Screen will show the Icon 2. Insert a Storage Card into the Camera and then power it on. Press the WIFI key to conduct WIFI connection, and the Screen of the Camera will show the WIFI signal Icon with the external screen revealing WIFI Connecting.
- Page 20 1. Resolution 2. White Balance 3. Settings (Enter Settings Menu) 4. Wi-Fi Signal Icon 5. Camera’s Battery Status Icon 6. Enter the Playback Mode 7. Shutter button 8.Video Mode 9. Photo Mode 10. Timelapse Mode 8 9 10 IOS Applications 1.
- Page 21 please conduct connection between them till the system reveals a successful connection; if you are conducting WIFI connection for the first time, please input the password: 1234567890. 4. Tap and enable the Application Program Icon on the IOS mobile phone or tablet PC; you can directly view the preview picture transmitted by the Camera (see the following picture), and then conduct relevant operations.
- Page 22 Notes: 1. If you need to record videos or download pictures using your mobile phone or tablet PC, please insert one TF card for your camera; 2. When the Camera has been successfully connected with your mobile phone or tablet PC, the WIFI Indicator Light will be on.
- Page 23 Technical Parameters Image Sensor 8.0 MP Image Sensor Function Modes Video recording mode, shooting mode and replay mode Lens F2.8, f=2.5mm LCD Display Screen 2.0 inch HD LCD Screen Photo Definition Ratio 16M, 8M, 5M, 4M 1440P (1920x1440 30fps), FHD (1920x1080 60fps), FHD (1920x1080 30fps), Video Definition Ratio HD (1280x720 120fps), HD (1280x720 60fps) Storage Media...
- Page 24 NOTE: Please use microSD cards up to 32GB, minimum Class6 (not included). Recording times are depending on resolution. Battery life time - depending on settings and outdoor temperature - up to 90 min. under optimal conditions. Before using your camera in the water please verify that all lids and locks are tightly closed and sealed on the camera and the underwater case.
-
Page 25: Declaration Of Conformity
DECLARATION OF CONFORMITY easypix herebly declares that the product GoXtreme WiFi Speed is in conformity to all the essential requirements of Directive 1999/5/EC. The declaration of conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_goxtreme_wifi_speed.pdf For technical help please visit our support area on www.easypix.eu.
