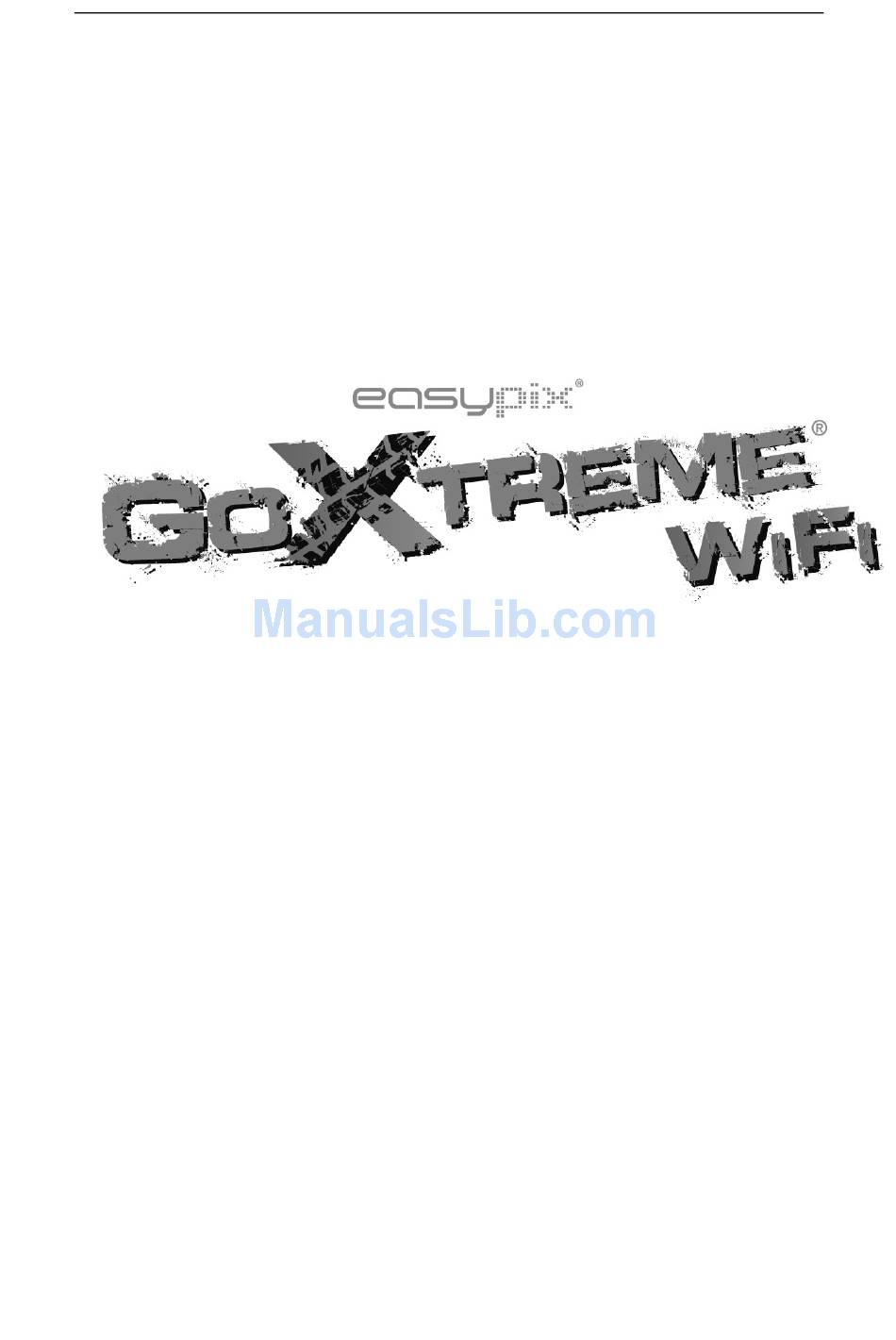

  • Page 1 User Manual...

  • Page 2: Appearance And Buttons

    Thank you for buying the GoXtreme WiFi action camera. Before start using this product, please read this manual carefully to maximize its performance and extend the life of the product. Appearance and Buttons 1. Shutter button 7. LED light 2. LCD display 8.

  • Page 3: Lcd Display Illustration

    LCD Display Illustration Turn on , the LCD will display the following the GoXtreme WiFi status and settings: 1. Camera mode 2. Video recording mode (default) 3. Wi-Fi icon (display when enabled) 4. TF card icon (display when loaded) 5. Resolution icon:...
  • Page 4 In video mode, press the Shutter button to start recording, LED flash, and press it again to stop; In camera mode, press the Shutter button to take photo. Use your GoXtreme WiFi When you use the for the first time, please: GoXtreme WiFi 1.
  • Page 5 High speed card at least Class 4 is recommended; Turn off the DV before inserting or removing the card. 2. Charging the battery. The DV uses built-in rechargeable lithium battery. When the DV is off, connect it to the PC via USB cable to charge the battery.

  • Page 6: Start To Use

    Note: The DV will turn off automatically if it is idle for 5 minutes. Start to Use Default setting: After turn on the , the default GoXtreme WiFi setting is as below: Video recording The DV is in video recording mode.
  • Page 7 Wi-Fi icon Display when activated. provides different shooting modes. Press GoXtreme WiFi button repeatedly, the following mode will display in turn: HI stands for FHD (1920x1080,30 fps) video Video Lo stands for 720P (1280x720,30 fps) video HILO stands for 720P (1280x720,60 fps) video...

  • Page 8: Enable/Disable Wi-Fi

    stop automatically, and the recorded video will be saved before the DV turns off. After reaching a max. video recording time of 29 minutes the camera will automatically stop. It can only be restarted manually. Photo To take a photo, please check whether the DV is under Camera mode.

  • Page 9: Enable/Disable Mute Mode

    4. Enable/disable Mute mode The buzzer is enabled by default. Under the Video or Photo mode, press and hold the Shutter button to disable the buzzer and indicator to enter Mute mode. Under Mute mode, the icon will display on the screen; press and hold the Shutter button again to exit Mute mode.
  • Page 10 Note: Before connecting or removing the HDMI cable, please stop video recording, playback and disconnect Wi-Fi first. 5.2 When HDTV is connected, it enters Playback mode, the LCD displays as below: Icon name Description Playback mode Under Playback mode currently. There are 31 files and you are viewing the 19 File number one.
  • Page 11 In Playback mode, press and hold the Shutter button , a prompt of deleting the file or formatting will appear. Press the Wi-Fi button to switch between deleting or formatting, then press the Power button to select Yes or No, and press the Shutter button to confirm and exit.
  • Page 12 6.2 In U-disk mode (PCU mode), press the Shutter button switch to web cam mode (PCC mode), and the LCD will display as below: Now you can start the web cam through application. To return to U-disk mode (PCU mode), press the button again.

  • Page 13: Android App

    Now you can see the Wi-Fi icon on the LCD. 2.3 Enable Wi-Fi on Android phone or tablet and search for wireless AP signal “GoXtreme WiFi”, then connect it to DV, until the system displays “Connected successfully”.
  • Page 14 Now you can see the Wi-Fi icon on the LCD. 3.3 Enable Wi-Fi on iOS phone or tablet and search for wireless AP signal “GoXtreme WiFi”, then connect it to DV, until the system displays “Connected successfully”.
  • Page 15 2. The Wi-Fi indicator will remain on when the terminal is connected to DV. DECLARATION OF CONFORMITY easypix herebly declares that the product GoXtreme WiFi is in conformity to all the essential requirements of Directive 1999/5/EC. The declaration of conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_goxtreme_wifi.pdf For technical help please visit our support area on www.easypix.eu.
