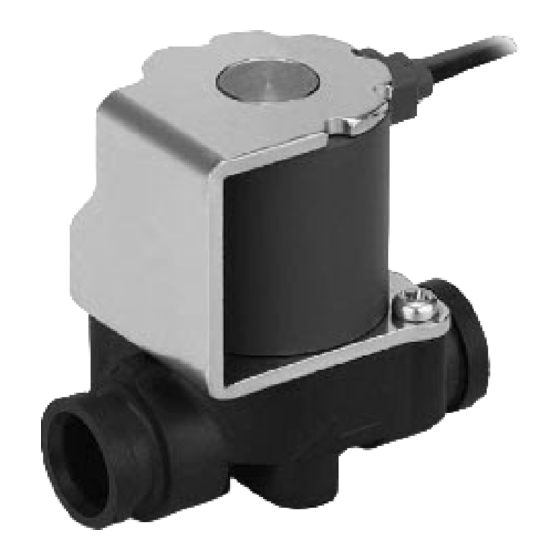

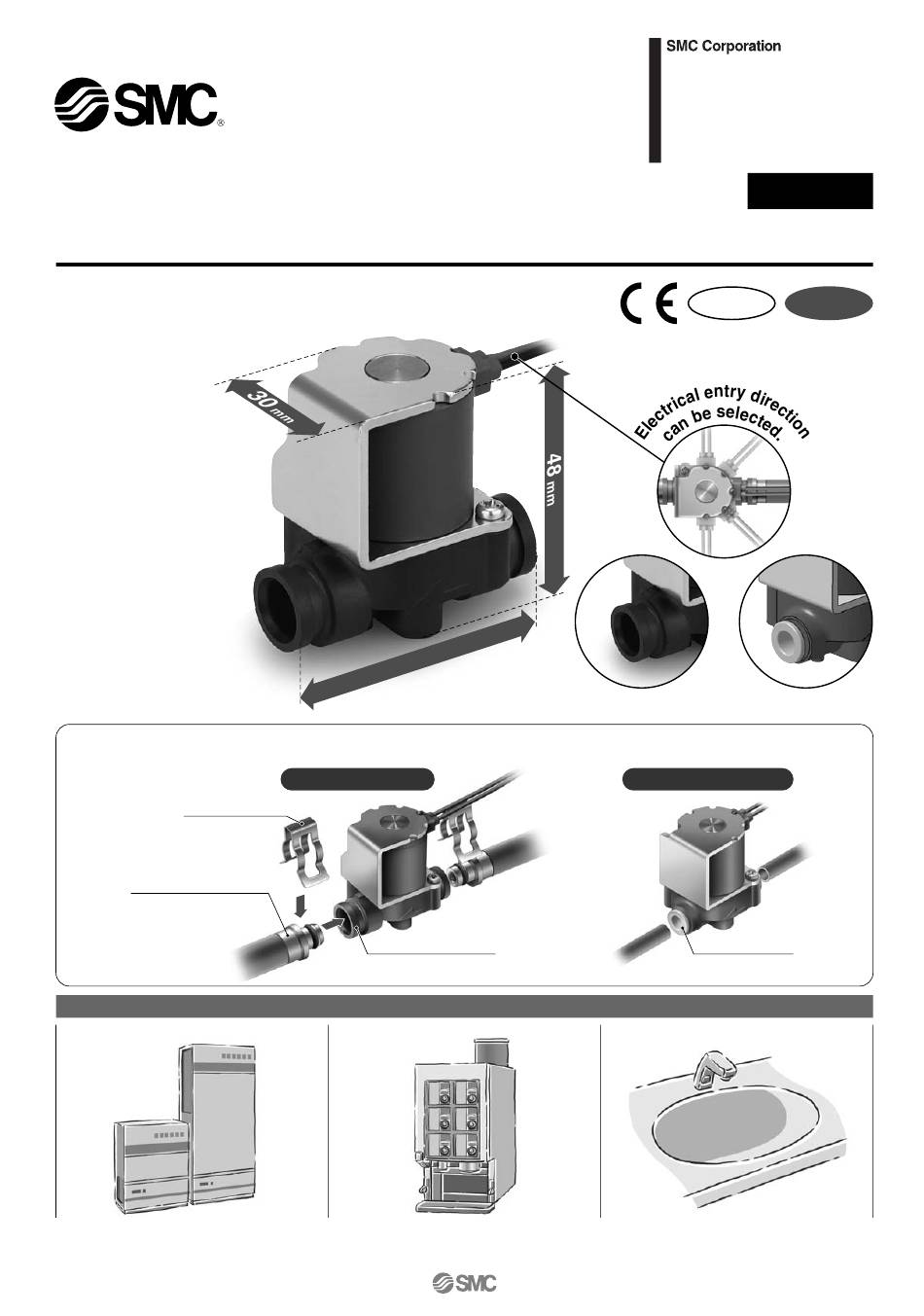

Compact / Lightweight 2 Port Solenoid Valve
VDW30/40-XF
Series
b Compact / Lightweight resin body
Weight:
(VDW30-XF)
b Power
consumption
3
W
(Standard)
0.5
W
(With power-saving
circuit)
Piping labor reduced
Male quick fastener
(∗ Male quick fasteners are
not included.)
Application Examples
Fuel cell cogeneration system
Note) A portion of the design and development work for this product was conducted as part of the Peripheral Equipment Technology Development for Household Fuel
Cell Systems project sponsored by the New Energy and Industrial Technology Development Organization (NEDO). In principle, supply of the product for
household fuel cell system applications with a capacity of 3 kW or less commences in April 2010.
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Information
120
g
∗ VDW30-XF
No torque control needed, easy handling.
Quick fastener body
Quick fastener clip
Note)
Dispenser
(PPS)
m m
5 0
Female quick fastener
Akihabara UDX 15F,
4-14-1, Sotokanda, Chiyoda-ku,
Tokyo 101-0021, JAPAN
URL http://www.smcworld.com
©2010 SMC Corporation All Rights Reserved
09-E562
D-DN Printing OT 12450KS
For Air/Water
RoHS
Quick fastener
One-touch fitting
One-touch fitting body
One-touch fitting
Automatic faucet
IP65
1
Advertisement
Table of Contents
Related Manuals for SMC Networks VDW30-XF Series
Summary of Contents for SMC Networks VDW30-XF Series
- Page 1 Akihabara UDX 15F, Information 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, JAPAN URL http://www.smcworld.com ©2010 SMC Corporation All Rights Reserved 09-E562 D-DN Printing OT 12450KS Compact / Lightweight 2 Port Solenoid Valve For Air/Water VDW30/40-XF Series b Compact / Lightweight resin body RoHS (PPS) IP65...
- Page 2 Compact / Lightweight 2 Port Solenoid Valve For Air/Water VDW30/40-XF Series RoHS How to Order Valves (Single Unit) 1 5 G Series Option None Bottom mounting insert type Valve type With 2 quick fastener clips Note) N.C. Note) Port connection type: Supports P7 and P10 quick fasteners only.
-
Page 3: Standard Specifications
Compact / Lightweight 2 Port Solenoid Valve VDW30/40-XF Series For Air/Water Standard Specifications Valve construction Direct operated poppet Valve type Normally closed (N.C.) Note 3) Quick fastener type Water (1 to 50°C), Air, Inert gas, Heated water (80°C) , Low vacuum (133 Pa·abs) Fluid Note 4) Note 5) - Page 4 VDW30/40-XF Series Construction Component Parts Materials Description Material Body Tube assembly Stainless steel Coil assembly — Stainless steel, NBR, FKM, EPDM Armature assembly Return spring Stainless steel Flame Iron O-ring NBR, FKM, EPDM Round head combination screw Iron Cassette POM, Stainless steel Seal NBR, FKM, EPDM Caution...
- Page 5 Compact / Lightweight 2 Port Solenoid Valve VDW30/40-XF Series For Air/Water Dimensions VDW30-„G„„-„- VDW40-„G„„-„- One-touch fitting for ø4, ø6 One-touch fitting for ø8, ø10 Approx. 300 ø32 17.5 Approx. 300 ø27 C4, C6 C8, C10 1 (IN) port 1 (IN) port C4, C6 C8, C10 2 (OUT) port...
-
Page 6: Specific Product Precautions
VDW30/40 Series Specific Product Precautions 1 Be sure to read before handling. Refer to back cover for Safety Instructions, “Handling Precautions for SMC Products” (M-E03-3) for Fluids Control 2 Port Valves Precautions, and Series VDW in Best Pneumatics No. 7 for Specific Product Precautions. Selection Mounting Warning... - Page 7 VDW30/40 Series Specific Product Precautions 2 Be sure to read before handling. Refer to back cover for Safety Instructions, “Handling Precautions for SMC Products” (M-E03-3) for Fluids Control 2 Port Valves Precautions, and Series VDW in Best Pneumatics No. 7 for Specific Product Precautions. Electrical Connections Fluid Flow Direction Caution...
-
Page 8: Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for ∗1) safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations.
