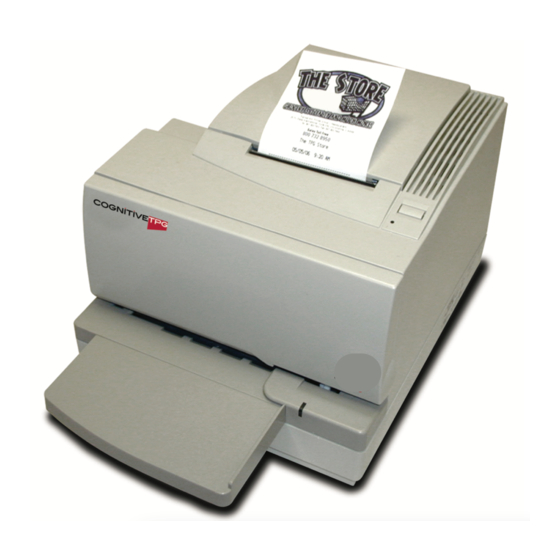

CognitiveTPG A760 Setup Manual

Two-color thermal/impact hybrid printer

Hide thumbs Also See for A760:

Table of Contents

Download this manual

A760 Two-Color Thermal/Impact Hybrid Printer

Setting up the printer

The following instructions will provide a quick reference for setting up the A760 printer. You will

need to refer to the User's and Programming Guide for specific details for the setup procedures,

troubleshooting tips, configuration adjustments, and command designations. Pages referenced

are from the User's Guide, unless noted. Visit www.CognitiveTPG.com > Support >

Drivers & Downloads to find the latest printer drivers, software, and documentation. You may

also contact customer service at 800-732-8950 or 607-274-2500, or by emailing support@

CognitiveTPG.com.

Please visit the website to register your printer and provide feedback on its quality.

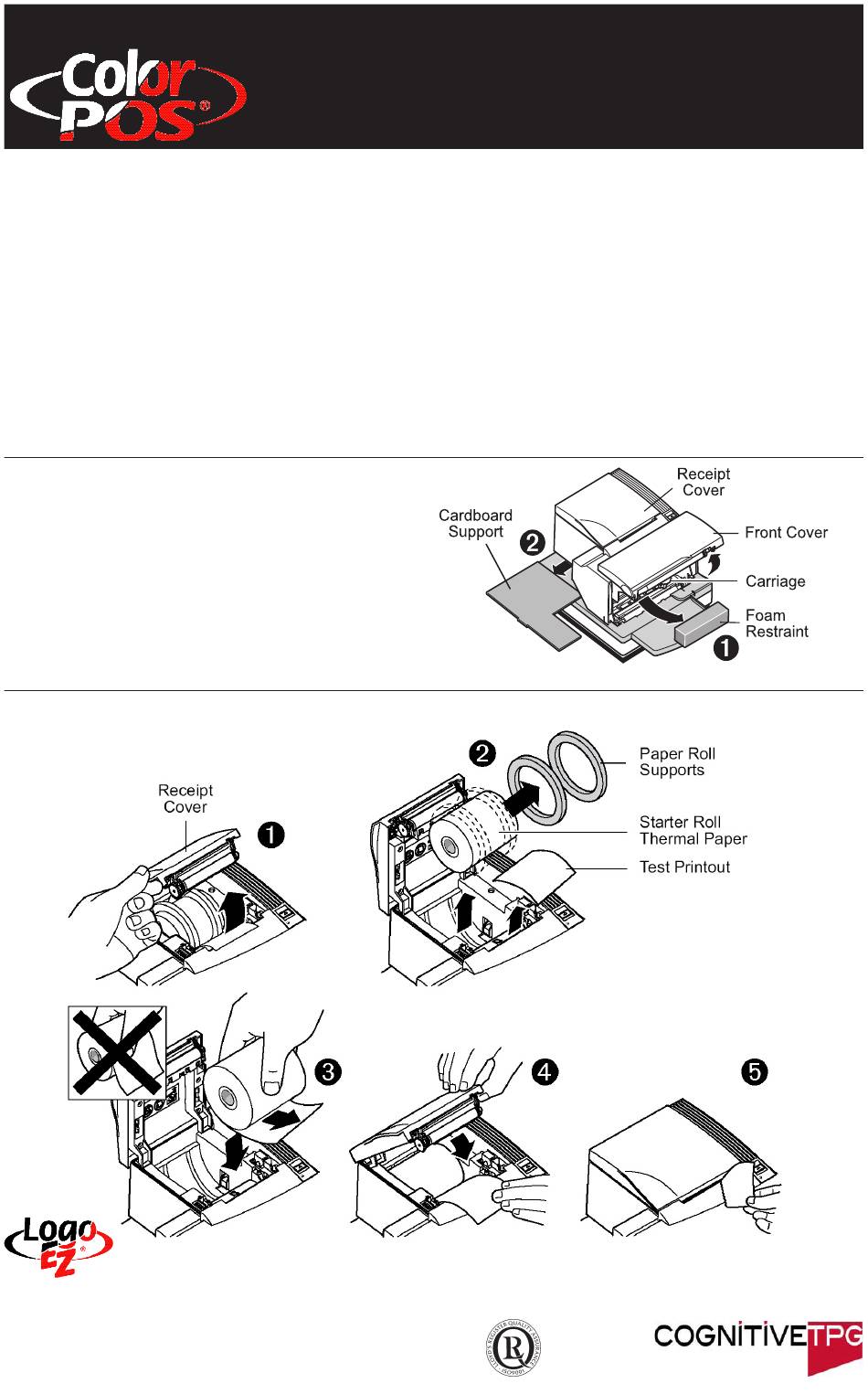

Unpack the printer, saving all packing materials for

future shipping or storage (page 15).

Load the starter roll of paper, if present (page 16). You can change the type

of paper used in this printer. See step 7.

Made under one or more of the following U.S. patents: 4886381, 5579043,

5613787, 5651624, 5713678, 5752779, 5789916, 5800080, 5879090, 5887999,

5975776, 6027266, 6085973, 6089450, 6129465, 6155483, 6404452, 6486902,

6504331, 5749277, 6722754, 6739773, 6784909.

Other U.S. and international patents pending.

Setup Guide

Table of Contents

Do you have a question about the A760 and is the answer not in the manual?

Page 1 Setup Guide Setting up the printer The following instructions will provide a quick reference for setting up the A760 printer. You will need to refer to the User’s and Programming Guide for specific details for the setup procedures, troubleshooting tips, configuration adjustments, and command designations. Pages referenced are from the User’s Guide, unless noted.
Page 2 Install the ribbon cassette (page 17). Choose a location for the printer (page 18). Connect the following cables based on your configuration using a-d below. When using USB (step “b” below), use caution to ensure the USB cable is connected to the USB connector (A) on the back right of the printer and not into the cash drawer connector (B) that is on the left back of the printer.
Page 3 “USB Driver Type: Printer Class” or USB Packet w/Error : Reject “USB Driver Type: Comm Class” Print Test and Configuration Menu Sample. Samples will vary depending on the printer model. The A760 is LogoEZ® compatible for ease of setting-up your logo and two-color design needs.
Page 4 24 Vdc, 2.5 A for 60 watt unit. Use of this product with a power supply other than the CognitiveTPG power supply will require you to test the power supply and CognitiveTPG printer for FCC and CE mark certification. Communication Interface Cable A shielded (360 degree) interface cable must be used with this product.
