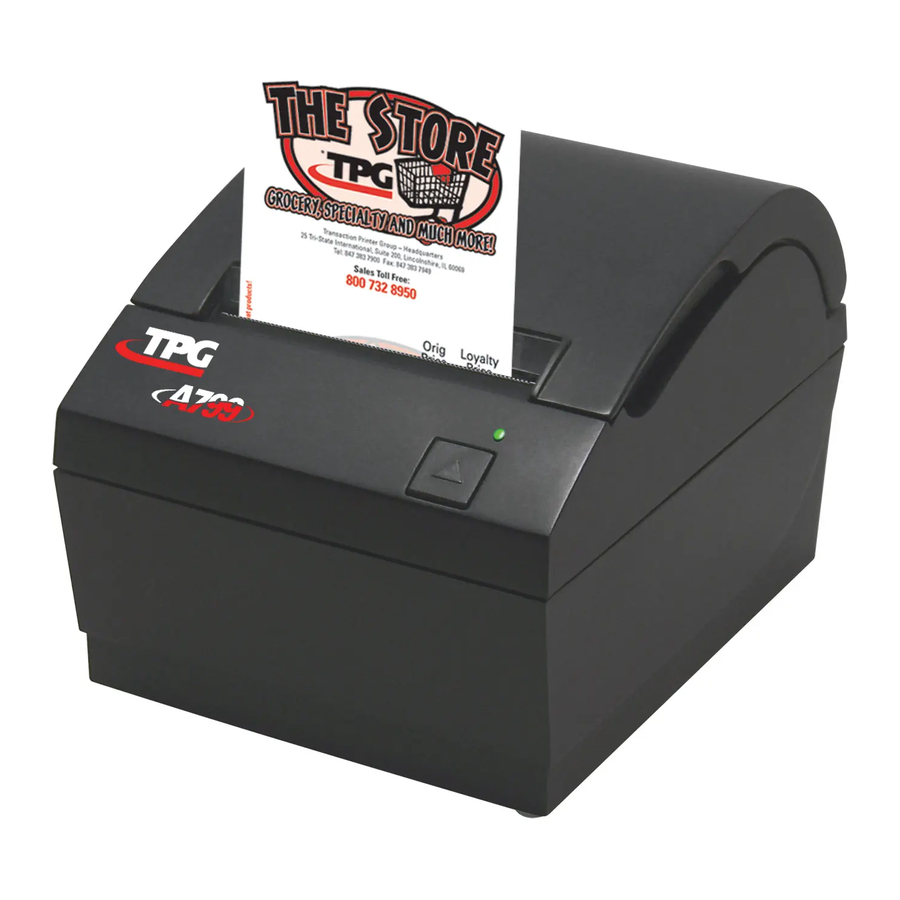

CognitiveTPG A799 Setup Manual

Ethernet interface
Hide thumbs Also See for A799:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming Manual, User Manual
Ethernet Interface

Setup Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A799 and is the answer not in the manual?

Questions and answers

Related Manuals for CognitiveTPG A799

Summary of Contents for CognitiveTPG A799

  • Page 1: Setup Guide

    Ethernet Interface Setup Guide...
  • Page 2 A shielded (360 degree) interface cable must be used with this product. The shield must be connected to the frame or earth ground connection or earth ground reference at EACH end of the cable. Use of a cable other than described here will require that you test the cable with the CognitiveTPG printer and your system for FCC and CE mark certification.

  • Page 3: Ethernet Terminology And Default Setup

    Ethernet network device to identify it on the MAC address network. Each printer communication board gets a unique number from CognitiveTPG’s assigned range of numbers. CognitiveTPG numbers start with: 00:E0:70. a unique number that identifies each node on a network and to specify routing information. Each node IP address must be assigned a unique IP address.

  • Page 4: Ethernet Default Setup

    Net mask of 0.0.0.0 (causes default mask of selected IP to be used) HTTP Server Port 80 active Raw TCP/IP Port 9001 active *** A799II - Diagnostics Form *** Model number : A799-780E-TD00 Serial number : 0000000000 Flash Firmware Revision : V1.27...

  • Page 5: Ethernet Setup Commands

    Ethernet Interface Setup Guide Ethernet setup commands The following commands are designed to set the required printer internal parameters for Ethernet operation. The commands can only be used in flash download mode (1B 5B 7D). Restore default settings ASCII US BS NUL Hexadecimal 1F 08 00 Decimal...

  • Page 6: Inactivity Timeout

    Ethernet Interface Setup Guide Setting raw TCP/IP port ASCII US BS EOT n1 n2 Hexadecimal 1F 08 04 n1 n2 Decimal 31 8 n1 n2 Low order byte of port # High order byte of port # Default: Port = 9001 Sets the port where the printer will look for raw TCP/IP communications.

  • Page 7: Default: Port

    Ethernet Interface Setup Guide Set HTTP Port ASCII US BS SO n1 n2 Hexadecimal 1F 08 0E n1 n2 Decimal 31 8 14 n1 n2 Low order byte of port # High order byte of port # Default: Port = 80 Sets the port where the HTTP server will listen.
  • Page 8 1. Plug the printer into the PC via USB cable and power it on 2. Download the Ethernet Configurator Utility here: http://www.cognitivetpg.com/assets/downloads/189-1200639A.zip 3. Unzip the package to a location of your choosing 4. Open the unzipped EthernetConfigurator folder and double-click runtest.bat 5.
  • Page 9 Windows will attempt to detect the TCP/IP port and then ask for additional port information. Select Generic Network Card. 7) At the Install Printer Driver Window, choose Have Disk and Browse to the appropriate CognitiveTPG mini driver location and select the appropriate CognitiveTPG mini driver.
  • Page 10 Windows will attempt to detect the TCP/IP port and then ask for additional port information. Select Generic Network Card for Device Type. 7) At the Install Printer Driver Window, choose Have Disk and Browse to the appropriate CognitiveTPG mini driver location and select the appropriate CognitiveTPG mini driver.
  • Page 12 TPG-ETHSUG Rev. G 4/2017...

This manual is also suitable for:

A799ii
