2. MENU DESCRIPTIONS
One of the significant features of the TG400 is the Direct Access Keypad. Velocity, Zero and Gain are
just a single keystroke away. There are also 2 option keys. Opt2 is predefined as A-Trace split. Opt1 is
reserved for future use.

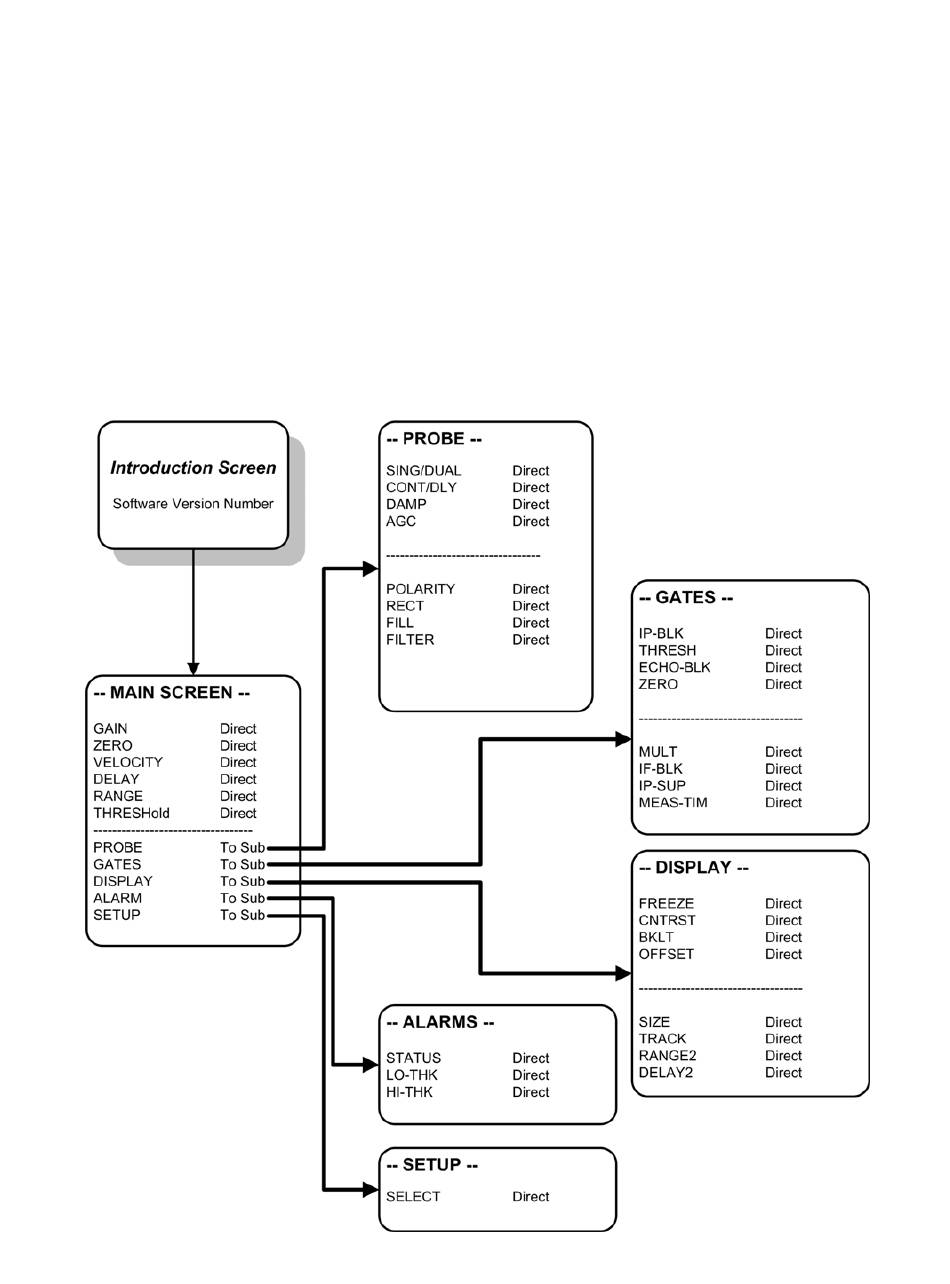

MENU FLOW
The following represents the menu flow of the TG400. Pressing the MENU/ESC key repeatedly will
sequence through the menus as shown.
Note: The branch if menu choices is determined by the MODE selection in the MAIN menu. I.E., if
FLAW were selected in the main menu, under the MODE command then the branch would follow the
flaw mode selected to GATE1 then GATE2 then PUL/REC.
6 6
