2) Bringing In Video And Audio

#1
Connect the HDMI
cable to the camcorder
and plug into TriCaster using
VIDEO IN port 1
#3
OPTIONAL: Plug the
microphone into TriCaster
using the designated ¼" jack
in the AUDIO IN section
IMPORTANT: TriCaster Mini comes with a cable retention bracket that you can attach to provide
additional cable security (see step 6 in your TriCaster Mini Quick Start Guide). Mounting and fastening
the bracket to TriCaster Mini is optional. The cable retention bracket also doubles as a handle. If you
intend to use the bracket as a handle, please mount and fasten the bracket securely to prevent
damage to TriCaster Mini.

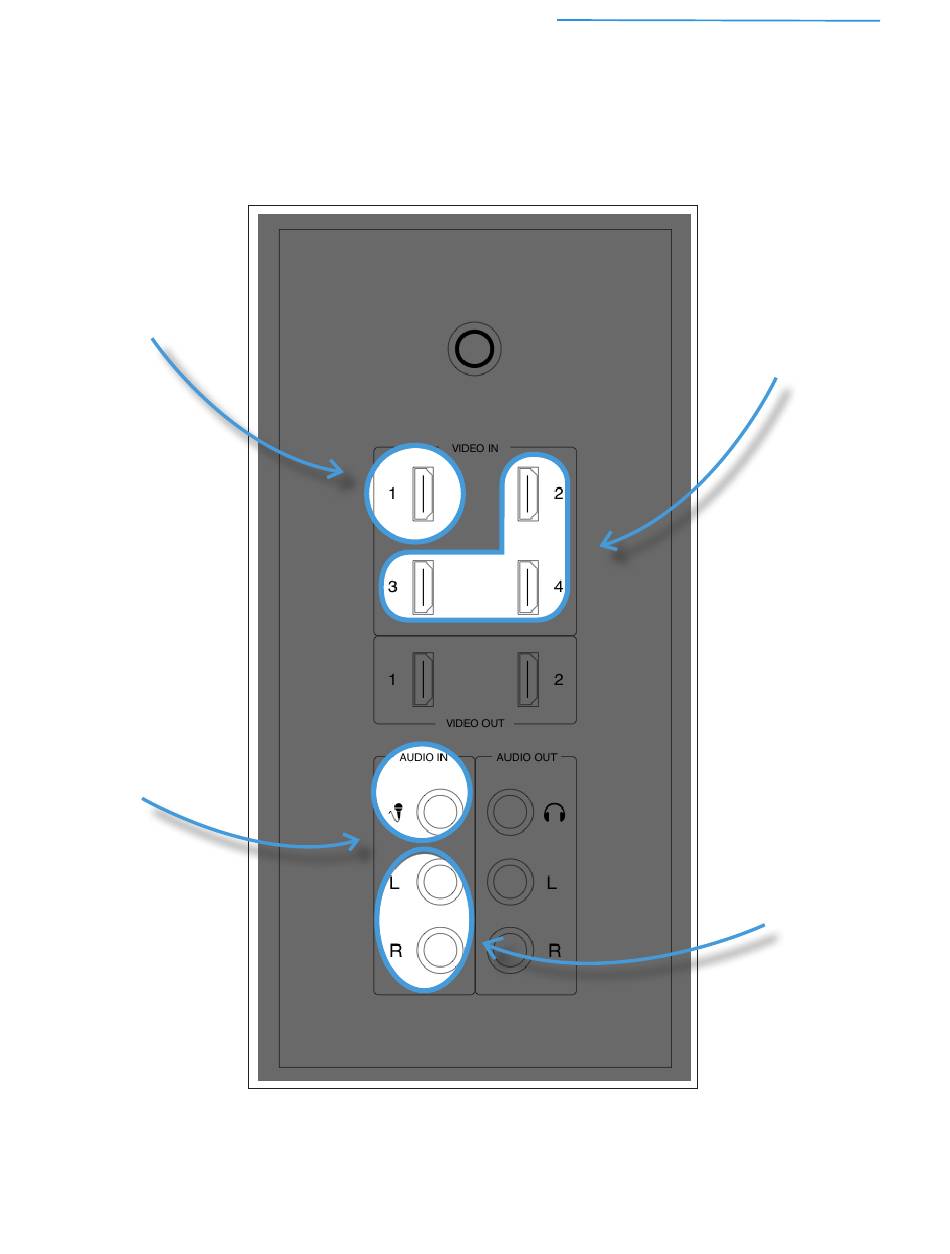

FRONT PANEL DRAWING
TriCaster Mini Go Make Your Show Guide
OPTIONAL: Repeat using
VIDEO IN ports 2-4 for each of
your other HDMI camcorders
OPTIONAL:
right channels of the
audio mixer into TriCaster
using the ¼" (L) and (R) jacks
in the AUDIO IN section
5
#2
#4
P
lug the left and
