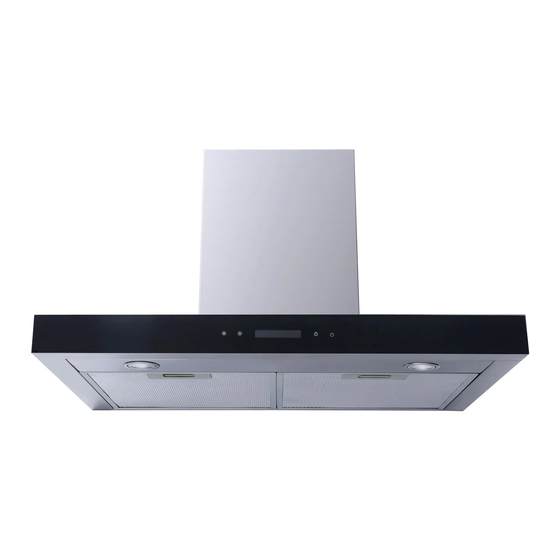

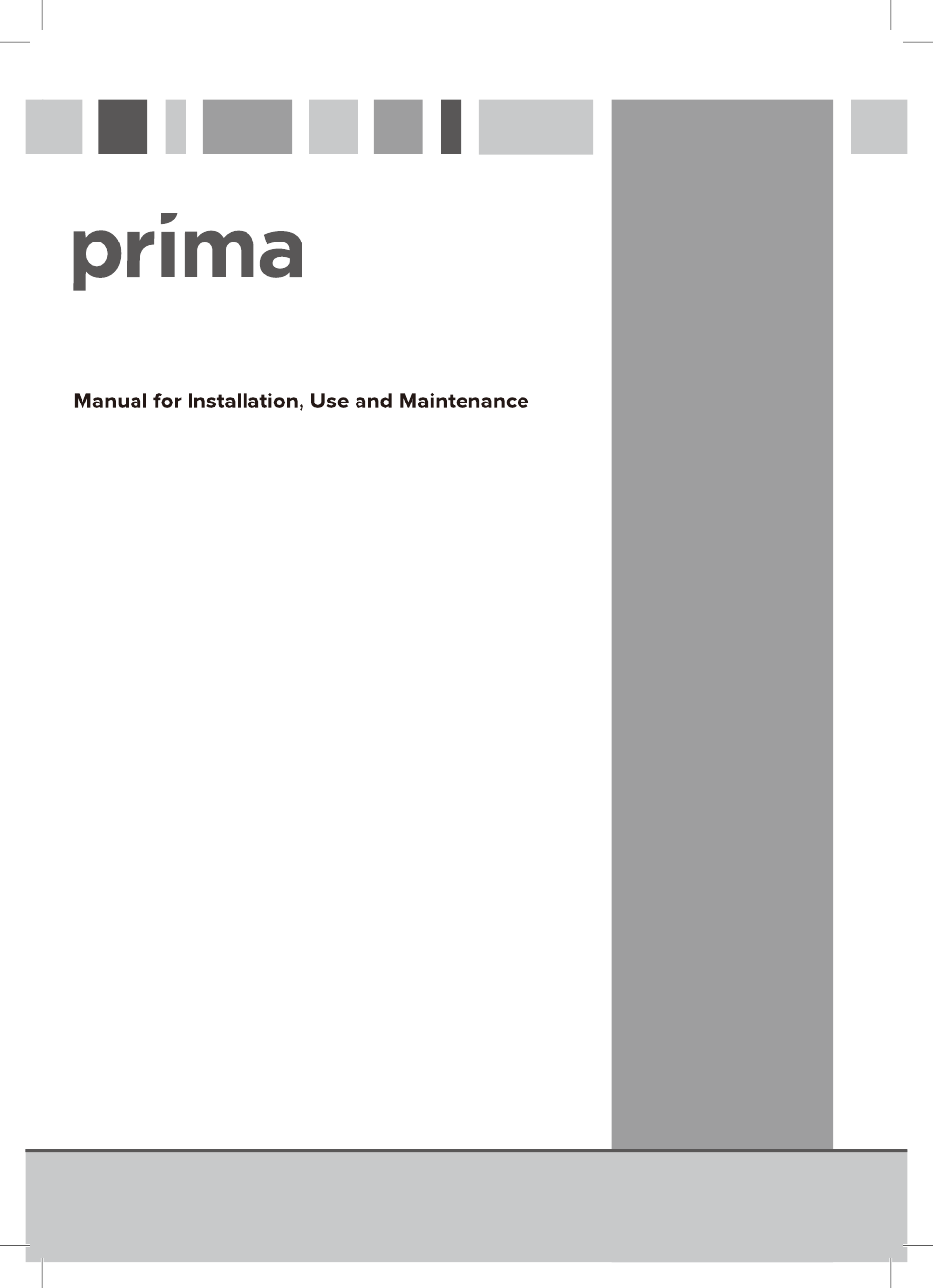

- Page 1 PRCH026/PRCH028/PRCH030 Linear Cooker Hood Cod:0103083401...
-
Page 3: Using Your Extractor
Using Your Extractor For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Fig. 1 ON/OFF Key/Delay Timer: Press the key to turn on/o the extractor. If the extractor is turned on, the delay timer can be activated by pressing the again. -
Page 4: Care And Maintenance
Care and Maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning You should use a non-abrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. solution of water and mild detergent and drying to a shine with a clean cloth. - Page 5 Charcoal filter installation Care and Maintenance IMPORTANT: DO NOT ATTEMPT TO MAINTAIN OR CLEAN THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. In recirculating mode, air is vented back into the kitchen through the opening in the cooker hood. This method is advised if you are not using your hob intensively.
-
Page 6: Changing The Light
Changing the Light NOTE: Replacement of the LED lights MUST be carried out by a qualified electrician. IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. emove the lamp using a flat-head screwdriver (Fig. 4-I). Remove the lamp. -
Page 7: Mains Electricity Connection
Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY DOUBLE POLE SWITCHED A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE FUSE SPUR OUTLET SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. Warning! This appliance MUST be earthed. We recommend that the appliance is connected by a qualified electrician who is a member of the N.I.C.E.I.C. - Page 8 122W All repairs must be carried out by an authori ed service engineer.
- Page 9 Electric hob:650mm recommended The width of any hob must not be greater than the width of the extractor installed above it. Fig. 5 For best performance and lowest noise output, we recommend the use of a 125mm ducting. PRCH026/PRCH028/PRCH030 34.5 Height dependent...
-
Page 10: Installation
INSTALLATION Tools required Mark wall as required (see Fig.5) Fig. 7 Fig. 8 Drill 4 holes for mounting the body Fit wall fixings and top screws - Ensure that any fixings you use are appropriate for the wall type. 10mm Fig. - Page 11 Drill 2 holes and mount Fix ducting (seal joint) chimney bracket Fig. 14 Fig. 13 Adjust and secure the upper chimney Mount the lower chimney Fig. 16 Fig. 15 The metal casing of this appliance has been coated with a preservative to protect it during transport and storage. This should be removed during installation by using a non-abrasive stainless steel cleaner.
- Page 12 Measured power consumption in 0.402 standby Measured power consumption Sound power level 79.7 (C) Hood 48 (A) Hood E & O E. All instructions, dimensions and illustrations are provided for guidance only. PRIMA reserve the right to change specifications without prior notice.
