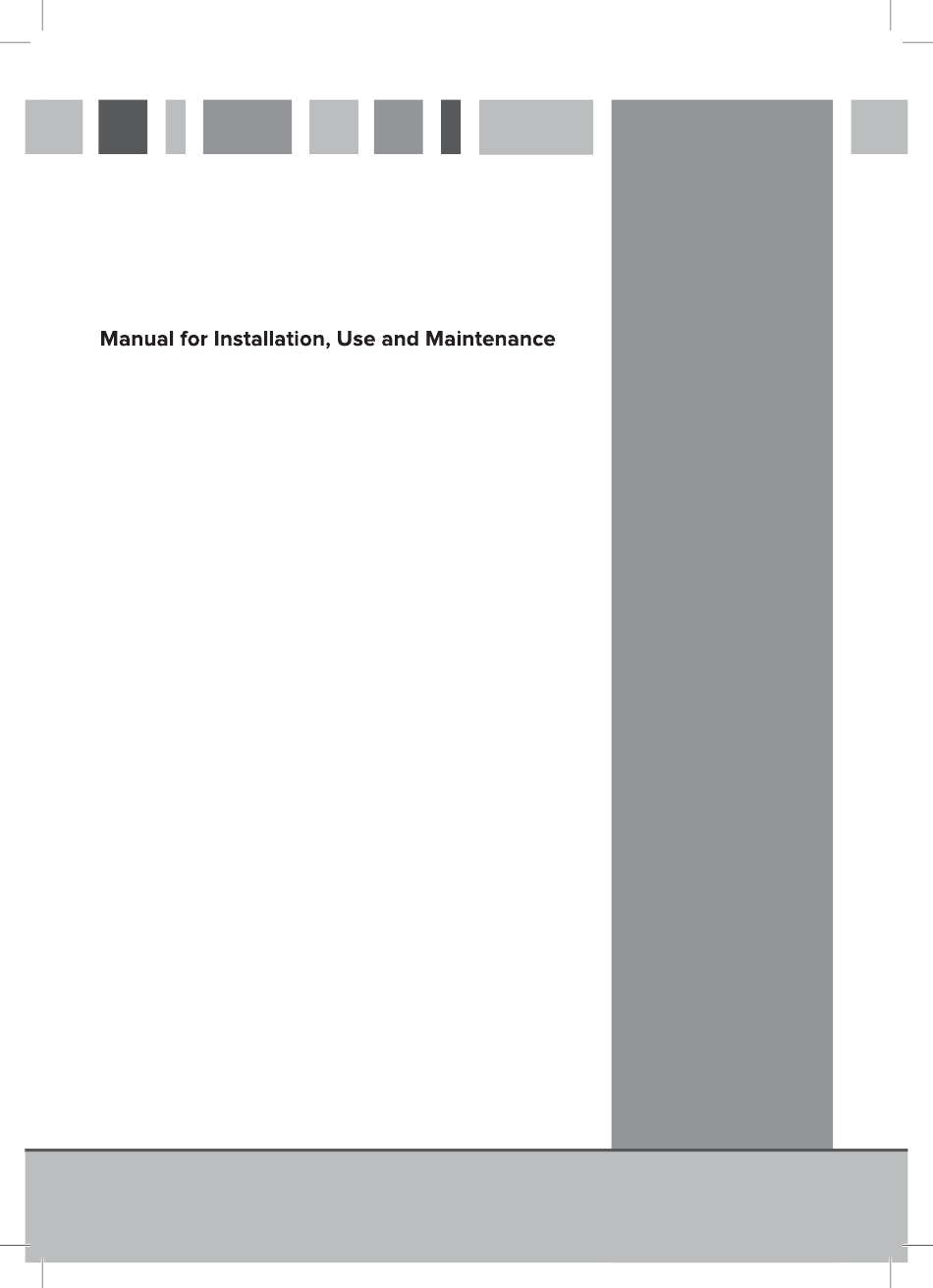

  • Page 1 PRDE0004 Downdraft Cooker Hood Cod:0103089219-00.02...
  • Page 2 IMPORTANT INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT, IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. The extractor should be used only with an electric hob and is not suitable for use on gas hobs / appliances.

  • Page 3: Information And Advice

    Information and Advice CAUTION:Accessible parts may become hot when used with cooking appliances. In certain circumstances electrical appliance may be a danger hazard. A) There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.

  • Page 4: Using Your Extractor

    Using your Extractor For best performance, you should switch on the extractor 15 minutes before starting for approximately 15 minutes after the end of cooking. Control Panel Fig. 1 Up key Down key Light Key Low speed key Medium speed key High speed key Up key: Press the “Up key”...

  • Page 5: Mains Electricity Connection

    Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY DOUBLE POLE SWITCHED A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE FUSE SPUR OUTLET SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C.
  • Page 6 Extractor Dimensions. Cavity Dimensions. MAX330 MIN720 MAX1050 MIN30 Insert extractor into cavity.
  • Page 7 Install in place then use screws to fix 4x10 bracket to the extractor MIN20 MAX60 Use ST4x10 screw fix motor on the extractor. Install power cable as shown below.
  • Page 8 Fig.9 Fig.10 Insert the carbon filter from here and put it back in the cover of the carbon filter. Fig.11...

  • Page 9: Installation Instructions

    Installation Instructions BEFORE YOU BEGIN Read these instructions completely and carefully. NOTE: We recommend that you seek the help of qualified individual(s) when installingthis product. suitable for the cabinets in the property. Make a rectangular cut-out in the worktop to accommodate the extractor (Fig.2). If your extractor has been supplied with the motor unit already mounted on the main body, this needs to be dismantled to enable the extractor to be inserted through the worktop cut-out (Fig.4).
  • Page 10 Danger 1. When the panel is lowering, DO NOT place your hand on the dec 2. Ensure that there are no other items in the vicinity of the extractor panel to hinder it from rising/lowering and take care not to leave pan handles over the area where the extractor panel rises, due to risk of spillage (Fig.13).
  • Page 11 comes with a 5 years Parts 2 years Labour Guarantee (subject to registration within 30 days of purchase).
  • Page 12 Measured Power Consumption in standby Measured Power Consumption 0.35 Noise Level 56.7 (E) Hood 23.4 (B) Hood E & O E. All instructions, dimensions and illustrations are provided for guidance only. Prima reserve the right to change specifications without prior notice.
  • Page 13 Please call PRIMA CARE for Service; : 0344 576 6841 ontact number Website www.prima-appliances.uk/primacare...
