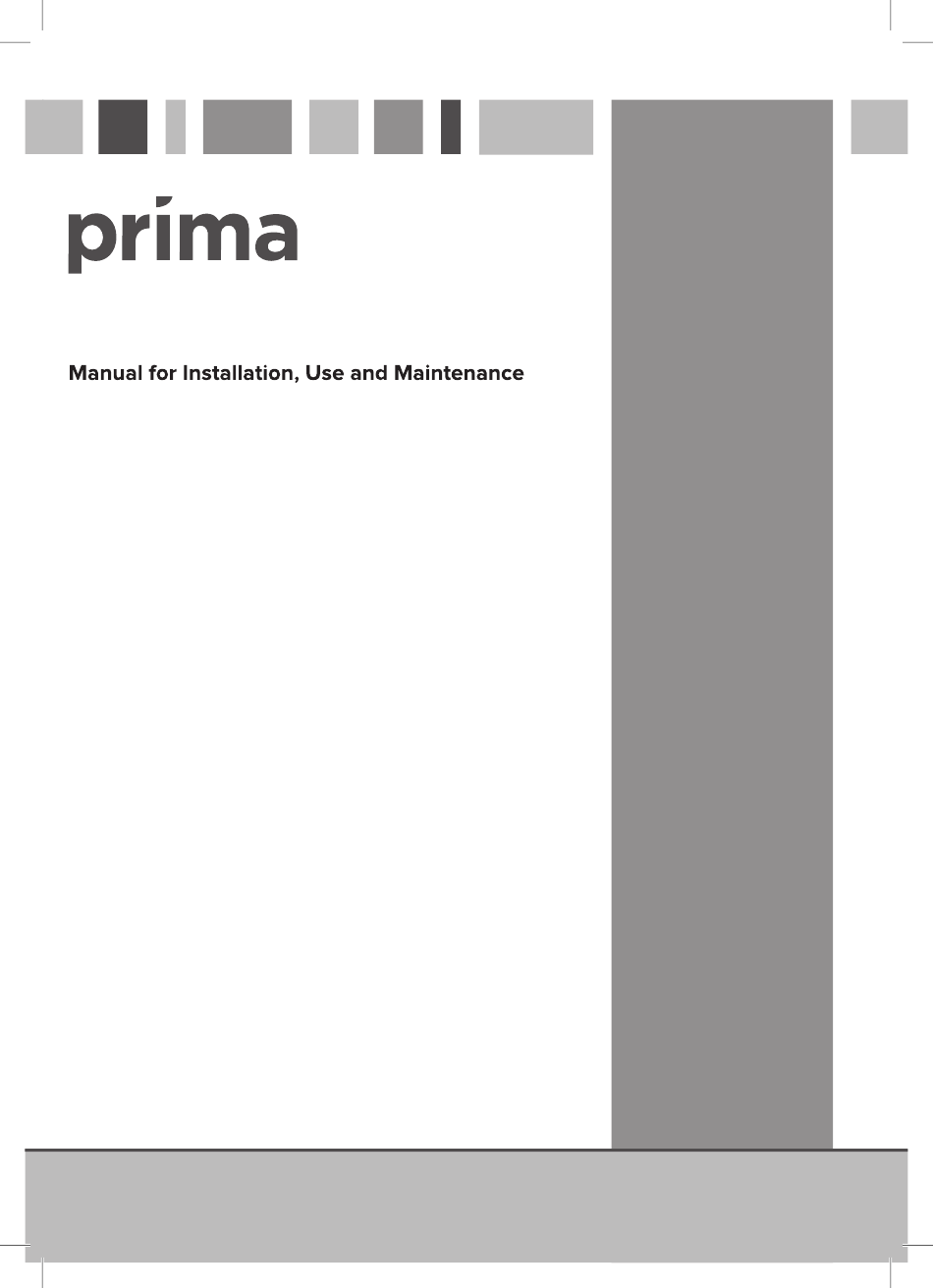

- Page 1 PRAE0030 Extractors Cod:0103082466...
- Page 2 Important The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that the manufacturer reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.
- Page 3 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services. Disposing of a household appliance separately avoids possible negative consequences for the environment and health.
- Page 4 • This extractor has been designed to be used in a room with a volume of less than 36m . • Steam cleaners must not be used when cleaning this appliance. • The performance of your extractor will vary depending on a number of factors.
- Page 5 Power Key...
-
Page 6: Care And Maintenance
Care and Maintenance IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Cleaning Fig. 3 You should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. - Page 7 • Open the hinged panel as shown in Fig. 3. • Push in the button on the handle and then pull down on the filter at the top as shown in Fig. 4. • When you have released it at the top, then you can pull the filter out completely.
- Page 8 Charcoal filter installation Care and Maintenance IMPORTANT: DO NOT ATTEMPT TO MAINTAIN OR CLEAN THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. In re-circulating mode, air is vented back into the kitchen through the opening in the cooker hood. Fig.
-
Page 9: Changing The Light
Changing the Light NOTE: LED lights replacement must be done by a qualified electrician. Disconnect the mains plug in order to interrupt flow of electricity. Take out the grease filter and open the black protective cap of the plug-in connection from inside. Fig. -
Page 11: Electrical Information
Assembly and electrical connection should be carried out by specialised personnel. When installing this product we recommend you seek the help of another individual. Electrical Information Mains electrical voltage: 230 – 240Vac Total rated power consumption: 112W If your extractor is not working: 2. -
Page 12: Mounting Your Extractor
Fig. 13 Where the extractor is to be installed above a non hob, the instructions PRAE0030 supplied with the hob may dictate that the height required above the hob is greater than 550mm. - Page 14 Mark out wall as required, see Fig 13. Mark wall as required (see Fig.5) Tools required. Tools required Fig. 14 Fig. 15 Fit wall fixings and top screws. Drill six mounting holes. Ensure that any fixings you use are Drill 6 holes for mounting the body appropriate for the wall type.
- Page 15 Fig. 18 Fig. 19 Adjust and secure the chimney. Mount the chimney. Fig. 20 Fig. 21 E & O E. All instructions, dimensions and illustrations are provided for guidance only. PRIMA reserve the right to change specifications without prior notice.
- Page 16 Measured power consumption in standby Measured power consumption 0.47 Sound power level 37 (G) Hood 47 (A) Hood E & O E. All instructions, dimensions and illustrations are provided for guidance only. PRIMA reserve the right to change specifications without prior notice.
