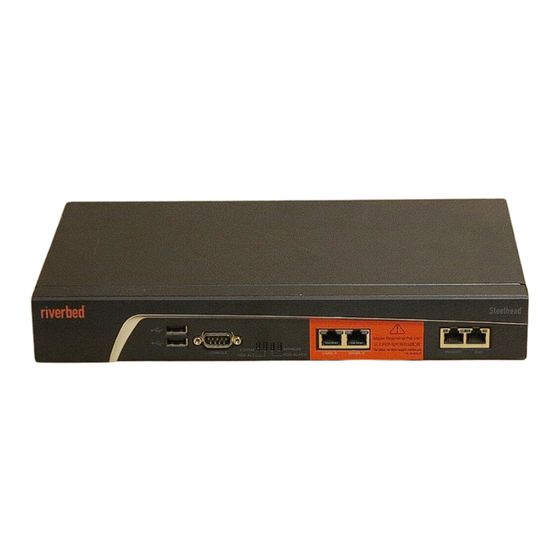

Summary of Contents for Riverbed Steelhead Series
- Page 1 Rack Installation Guide Steelhead Series xx00, xx10, xx20, xx50, CMC, Cloud Steelhead, Steelhead Mobile, Whitewater, and Interceptor Systems Version 6.1.2 November 2010...
- Page 2 The content of this manual is furnished on a RESTRICTED basis and is subject to change without notice and should not be construed as a commitment by Riverbed Technology, Incorporated. Use, duplication, or disclosure by the U.S. Government is subject to restrictions set forth in Subparagraphs (c) (1) and (2) of the Commercial Computer Software Restricted Rights at 48 CFR 52.227-19, as applicable.
- Page 3 Rack Installation Guide These instructions describe how to install models 250, 550, 1050, 2050, 5050, 6050, 7050, 9350; CSH-250, CSH- 1050, CHS-2050, WWA-1000, WWA-2000, models 3000, 3010, 5000, 5010, 8000, 8500; and models 3020, 3520, 5520, 6020, 6120, 9200 in a standard Telco-type rack. It includes the following sections: “Overview,”...
-
Page 4: Square Post-Hole Adaptor
Rack Installation Guide Overview Important: Model 50, 100, 200, 250, 300, and 550 systems are designed for the desktop. If you install these systems in a rack do not place objects on top of the system; it causes restricted airflow and can damage the system. Note: For rack installation instructions describing 520, 1020, 1520, and 2020 systems, see the documentation enclosed with these products. -
Page 5: Rack Installation Guidelines
The enclosed square post-hole converters (if needed) The enclosed brackets for mounting the Series 250 and 550 (if needed) If your system is missing any components please contact Riverbed Support for replacement parts at https:/ /support.riverbed.com. Mounting Series 250 and 550 to a Rack The following section describes how to install a Series 250 or 550 system in a rack. - Page 6 Rack Installation Guide Mounting Series 1050 and 2050 to a Rack Important: Series 250 and 550 systems are designed for side to side airflow. If you install these systems in a rack do not place objects on the sides of the system; it causes restricted airflow and can damage the system. To install mounting brackets to the system 1.
- Page 7 Mounting Series 1050 and 2050 to a Rack Rack Installation Guide “Mounting the System to a Four-Post Rack” on page 10 “Mounting the System to a Two-Post Rack” on page 12 To open the bezel on Series 1050 and 2050 systems To open the bezel firmly press in the buttons on each side of the bezel and slide it towards you.
- Page 8 Rack Installation Guide Mounting Series 1050 and 2050 to a Rack 1. To detach the outer rails, press the release latch and pull the outer rails away from the system. Figure 4. Using the Release Latch to Detach the Outer Rails 2.
- Page 9 Mounting Series 1050 and 2050 to a Rack Rack Installation Guide 3. Slide the ball bearing retainer on the inside of the outer rail to the foremost position. Figure 6. Sliding the Ball Bearing Retainer to the Foremost Position Note: The ball bearing retainer must be pushed forward and placed in the front position before attaching a chassis to the rack.
- Page 10 Rack Installation Guide Mounting Series 1050 and 2050 to a Rack Mounting the System to a Four-Post Rack The Series 1050 and 2050 ship with rails pre-installed to the chassis for mounting to a four-post rack. The following section describes how to mount a 1050 and 2050 system to a four-post rack. To mount a 1050 and 2050 to a four-post rack 1.
- Page 11 Mounting Series 1050 and 2050 to a Rack Rack Installation Guide 5. Install the outer rails to the rack posts. Figure 10. Attaching the Outer Rails to the Rack 6. Slide the ball bearing retainer on the inside of the outer rail to the foremost position. Figure 11.
- Page 12 Rack Installation Guide Mounting Series 1050 and 2050 to a Rack Caution: The ball bearing retainer on the outer rail must be returned to the foremost position in order to connect with the inner rail on the chassis. The bearings may fall off if the ball bearing retainer is not pushed forward. 7.
- Page 13 Mounting Series 1050 and 2050 to a Rack Rack Installation Guide 2. To detach the outer rails, slide the outer rail to the end of the system, push the release latch towards the front of the system, and pull the outer rail completely off the system. Figure 13.
- Page 14 Rack Installation Guide Mounting Series 5050, 6050, 7050, and 9350 to a Rack 4. Attach the first bracket to the chassis with the three included screws. Figure 15. Attaching Two-Post Center-Mount Brackets 5. Slide the second bracket onto the pegs of the first bracket by placing the second bracket over the first bracket at the widest opening then slide towards the narrower part to secure.
- Page 15 Mounting Series 5050, 6050, 7050, and 9350 to a Rack Rack Installation Guide Caution: All 3U systems must be mounted to a four-post rack; they cannot be mounted to a two-post rack. Caution: 3U systems weigh from 59-71 lbs. (26-33 kg). A minimum of two people is required to move a 3U system. Lift the system using both hands and with your knees bent.
- Page 16 Rack Installation Guide Mounting Series 5050, 6050, 7050, and 9350 to a Rack Important: In some environments the bracket screws cannot be reached after the rails have been installed. In this case the length of the outer rails should be adjusted and secured before mounting the outer rails into the rack. Figure 18.
- Page 17 Mounting Series 5050, 6050, 7050, and 9350 to a Rack Rack Installation Guide 1. Install the outer rails to the rack posts with the included screw set. Figure 19. Attaching the Outer Rails to the Rack Important: The sliding part of the outer rails should not be extended when inserting or removing the system. To mount the system on a rack 1.
- Page 18 Rack Installation Guide Mounting Models 3000, 3010, 5000, and 5010 to a Rack 2. When the system has reached a hard stop, pull the release tabs on both of the inner rails and push the unit all the way into the rack. Figure 20.
- Page 19 Mounting Models 3000, 3010, 5000, and 5010 to a Rack Rack Installation Guide To mount the system to a rack 1. Carefully lift the system out of the shipping carton. Caution: 3U systems weigh from 59-71 lbs. (26-33 kg). A minimum of two people is required to move a 3U system. Lift the system using both hands and with your knees bent.
- Page 20 Rack Installation Guide Mounting Models 3000, 3010, 5000, and 5010 to a Rack 7. On the front and rear of the rack, insert two screws on the each side of the rack. Do not tighten the screws. Figure 23. Mounting the Rail Hardware onto the Front and Rear of the Rack 8.
- Page 21 Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack Rack Installation Guide Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack The following section describes how to install a 3U system, models 3020, 3520, 5520, 6020, and 9200, to a four-post rack.
- Page 22 Rack Installation Guide Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack 3. Locate the five rail buttons on each side of the chassis and the five corresponding holes on each of the inner rails. (One end of the hole is larger than the other end of the hole.) Figure 27.
- Page 23 Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack Rack Installation Guide Short Rack Adaptors - For rack depths of 17 to 28 inches (43.2 to 71.1 cm) Important: The system produces front-to-back cooling airflow that requires an unobstructed airflow to the fan housing. Do not mount the system near other electronic devices that produce back-to-front airflow.
- Page 24 Rack Installation Guide Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack To mount the short rack adaptors to the outer rails 1. Slide the standard bracket forward so that the larger end of the hole is aligned with the rail button and pull the bracket off the rail.
- Page 25 Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack Rack Installation Guide 4. Reposition the bracket so that it is the correct depth to fit your rack. 5. Repeat the steps to install the other short rack adaptor. To mount the system on a rack 1.
- Page 26 Rack Installation Guide Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack Caution: 3U systems weigh from 59-71 lbs. (26-33 kg). A minimum of two people is required to move a 3U system. Lift the system using both hands and with your knees bent. Note: The system might not slide into the rack smoothly or easily when installed the first time.
- Page 27 Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack Rack Installation Guide 3. Secure the system to the rack by tightening the screws on the front sides of the chassis. Figure 35. Securing the System to the Rack Important: For 3U xx20 models reseat all hard disks prior to powering the unit on.
- Page 28 Rack Installation Guide Mounting Models 3020, 3520, 5520, 6020, 6120, and 9200 to a Rack This page intentionally left blank. Rack Installation Guide...
