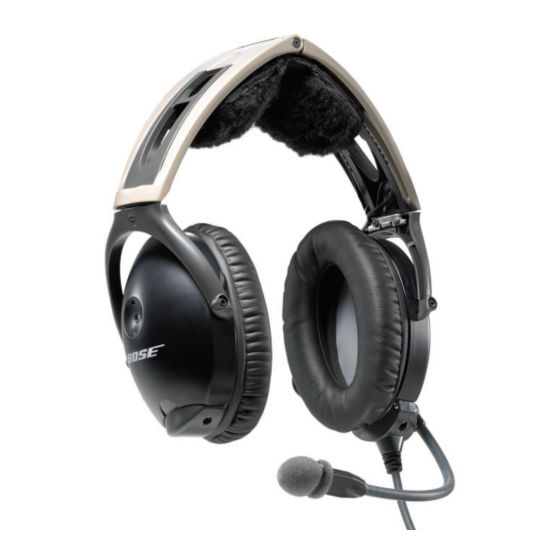

X Headset

Headset Installation

Remove all 4 screws (2 on each side) on pivot-

ing arms that sides of ear cups are attached to.

(figure 1)

Place headset over approximate area where

it would go over the helmet (be aware of left/

right of headset, as well as helmet). (figure 2)

1900 Weld Blvd. Ste. 140 El Cajon, CA 92020

figure 1

Secure headband straps over headband of

headset. (figure 3)

•

800.440.5904

Small Phillips Head Screwdriver

•

gibson-barnes.com

figure 2
