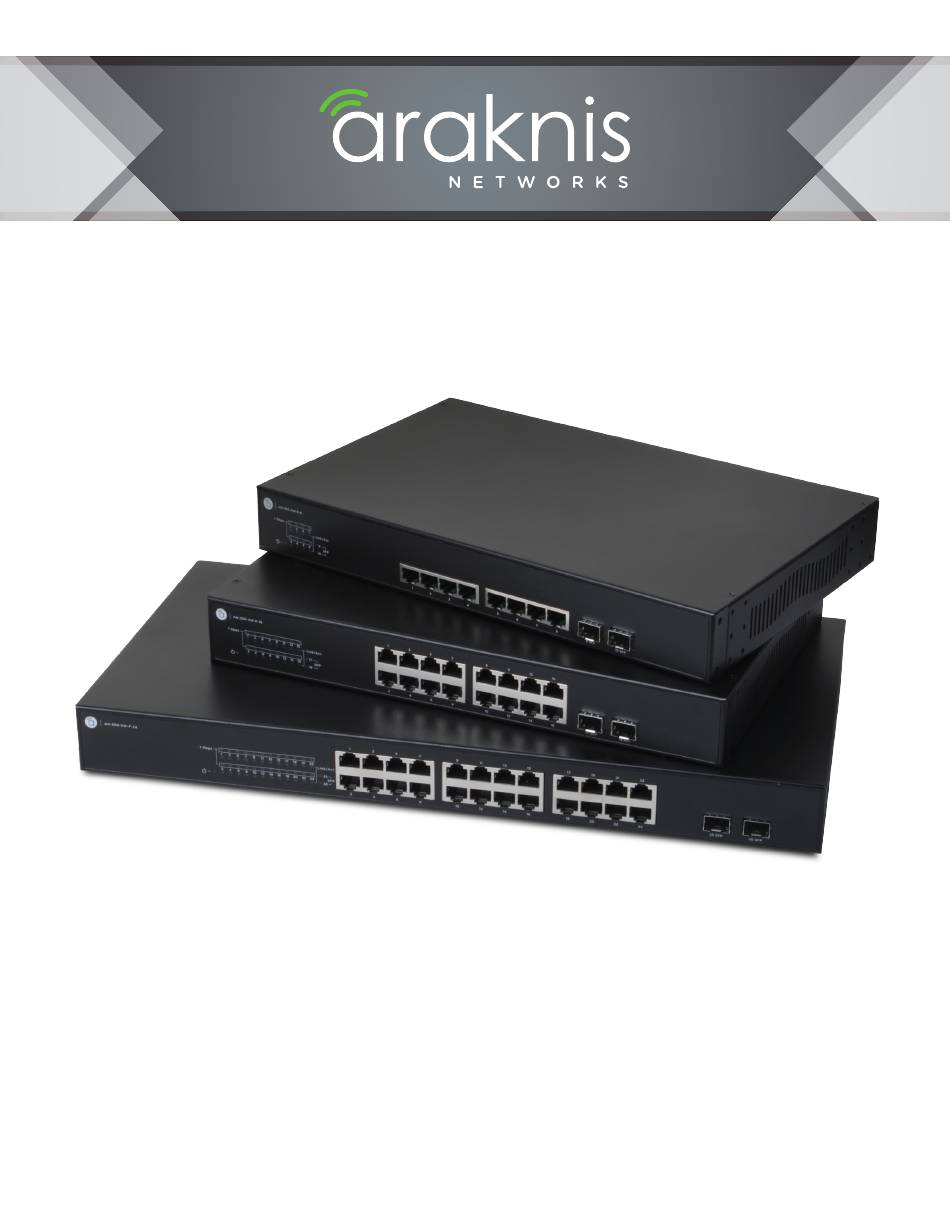

300 - S E RI E S N ET WO RK SWI TCHE S
I nst al la ti on Gui d e
Managed IT Rack Network Switches

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Araknis Networks 300 Series

  • Page 1 300 - S E RI E S N ET WO RK SWI TCHE S I nst al la ti on Gui d e Managed IT Rack Network Switches...
  • Page 2: Certifications And

    This device is intended for indoor use only. It should not be connected to an Ethernet network with outside plant routing. This manual was created to provide a reference for installers and end users of Araknis Networks About This Manual products.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Certifications and Warnings FCC Warning CE Warning About This Manual Pro Tips Notes Cautions Warnings Table of Contents Introduction Welcome to Araknis Networks ® Araknis 300-Series Overview ® Package Contents Recommended for Installation Installation Rack Mounting Wall Mounting Shelf Mounting Front Panel Layout Rear Panel Layout...
  • Page 4: Introduction

    The following table lists the models available in the 300-series family of network switches. Overview Number of Number of Number of Internal/External Model Ethernet PoE Ports SFP Ports Power Supply Ports AN-300-SW-F-8 Internal AN-300-SW-F-16 Internal AN-300-SW-F-24 Internal AN-300-SW-F-8-POE Internal AN-300-SW-F-16-POE Internal AN-300-SW-F-24-POE Internal © 2014 Araknis Networks ®...
  • Page 5: Package Contents

    INTRODUCTION Package Contents AN-300-SW-F Gigabit Ethernet Switch (1) AC Power Cord (1) Rubber Feet for flat surfaces (4) Rack-Mount Kit (1) Color-coding Decals set (1) Quick Installation Guide (1) Recommended for · #2 Phillips screwdriver (for mounting ear installation) Installation ·...
  • Page 6: Installation

    INSTALLATION Rack Mounting Mounting Options Standard Protruding Recessed Note: All product pictures in the document are for AN-300-SW-F-16-POE as an example of the 300-series product line. © 2014 Araknis Networks ®...
  • Page 7 INSTALLATION Rack Mounting (Continued) Rack Mounting • Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating Guidelines ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature of 104°F.
  • Page 8: Wall Mounting

    INSTALLATION Wall Mounting Caution: Do not stack more than 4 switches together. Do not stack any other equipment Shelf Mounting on top of the network switch to avoid possible interference or damage. © 2014 Araknis Networks ®...
  • Page 9: Front Panel Layout

    INSTALLATION 1. 1 Gbps LED Indicator (for non-PoE Models) Front Panel Layout Behavior Description No device is connected/ Connected device supports 10/100M speed 1 Gbps Device is connected at 1Gbps speed 2. PoE LED Indicator (for PoE Models) No PoE device is connected PoE LED Indicator (for PoE Models)
  • Page 10: Side Panel Layout

    Side Panel Layout Non-PoE models 1. Ventilation Slots Allows airflow through the chassis to keep the device cool. 2. Rack Mounting Holes The combination of threaded holes at the front and rear of each side allow for many variations in mounting options. PoE models 1.
  • Page 11: Installation

    INSTALLATION Installation Internet (Modem) Router Araknis Switch AppleTV Printer/ Desktop IP Camera IP Surveillance Scanner Phone Powering the AN-300-SW-F Switch ON 100-240VAC OFF 50-60Hz Electrical Requirements Input Voltage (AC Only) 90~240V AC, 50~60Hz © 2014 Araknis Networks ®...
  • Page 12: Management

    MANAGEMENT Management of the AN-300-SW-F is accessed using a laptop or desktop PC connected directly Accessing Switch to the switch, and using any browser by entering the IP address into the browser’s address bar. Management AN-300-SW-F Switch Network Cable PC Network Connection Laptop or Desktop 1.
  • Page 13: Specifications

    Storm Control Broadcast/Multicast/Unknown Unicast Yes* Jumbo Frame Support QoS Features Number of priority queues 8 queues/port Ingress Yes, 1Kbps/1pps Rate Limiting Egress Yes, 1Kbps/1pps DiffServ (RFC2474) Scheduling WRR, Strict, Hybrid 802.1p IP ToS Precedence, IP DSCP © 2014 Araknis Networks ®...
  • Page 14 SPECIFICATIONS 300-Series Managed Switch Specifications (Continued) Model AN-300-SW-F-8 AN-300-SW-F-16 AN-300-SW-F-24 Security Port Security (MAC-based) 802.1x Yes* L2/L3/L4 Yes* IP Source Guard Yes* RADIUS Yes* TACACS+ Yes* HTTPS and SSL SSH v2.0 MAC Filter Yes* IP Filter Yes* Management Management CLI, Web, Telnet Dual FW Images Management SNMP/Web/Telnet...
  • Page 15: 300-Series Managed Poe Switch Specifications

    SPECIFICATIONS 300-Series Managed PoE Switch Specifications Model AN-300-SW-F-8-POE AN-300-SW-F-16-POE AN-300-SW-F-24-POE Interface 10/100/1000Base RJ-45 Ports 1000Base SFP Ports PoE ports Physical Configuration Flash Memory 16MB SPI SDRAM 128MB Packet Buffer 512KB Performance MAC Address Table Switching Capacity 20Gbps 36Gbps 52Gbps Forwarding Rate 14.8Mpps 26.7Mpps 38.7Mpps...
  • Page 16 SPECIFICATIONS 300-Series Managed PoE Switch Specifications (Continued) Model AN-300-SW-F-8-POE AN-300-SW-F-16-POE AN-300-SW-F-24-POE QoS Features Number of priority queues 8 queues/port Ingress Yes, 1Kbps/1pps Rate Limiting Egress Yes, 1Kbps/1pps DiffServ (RFC2474) Scheduling WRR, Strict, Hybrid 802.1p IP ToS Precedence, IP DSCP Security Port Security (MAC-based) 802.1x Yes*...
  • Page 17: Appendix

    Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA). Phone: (866) 838-5052 Contacting Technical Support Email: support@araknisnetworks.com © 2014 Araknis Networks ®...
  • Page 18 © 2014 Araknis Networks ® 140219-0915...
