- Page 1 100 - S ERI ES N ETWORK SW I TC HES Q UI CK STA R T GUI DE Unmanaged IT Rack Network Switches...
-
Page 2: About This Manual
The symbols on the next page are used in this manual to identify certain information. Review the definition of each symbol type to better understand notes later in the text. © 2013 Araknis Networks ®... - Page 3 Pro Tips Pro tips are included in sections of the manual to add information that provides extra value, utility, or ease-of-use for the installer or end user of the product. Pro tips may also link to extra information that will provide a better understanding of application, technology or use of the product or feature in question.

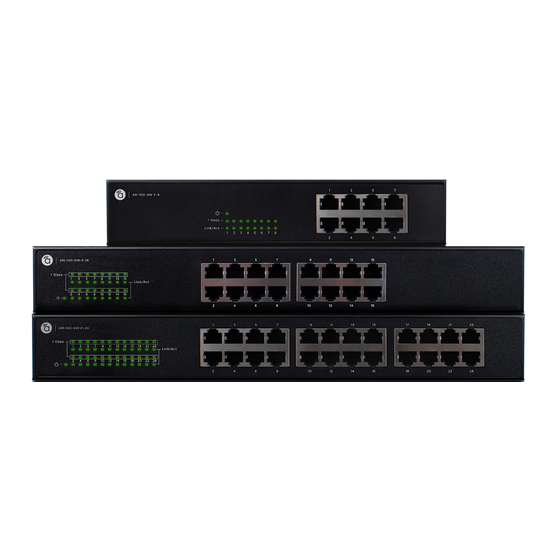

- Page 4 Networks ® Thank you for choosing an Araknis 100 Series Network Switch. The 100-series unmanaged network switch is an enterprise-class switch specifically designed for use in IT Rack applications. With front-facing indicators, front-facing ports, and fan-less design, the 100-series switch was designed for easy installation and high performance in an environment where traffic on the network and the number of users could increase continuously.
-
Page 5: Package Contents
Package Contents AN-100-SW-F Gigabit Ethernet Switch (1) AC Power Cord (1) Rubber Feet for flat surfaces (4) Rack-Mount Kit (1) Quick Installation Guide (1) Recommended for Installation • #2 Phillips screwdriver • Screws and Anchors - for wall-mount installation if applicable (use a fastener rated and specified for use in the wall material that can safely hold the weight of the model in use) •... -
Page 6: Rack Mounting
Rack Mounting Mounting Options Standard Protruding Recessed © 2013 Araknis Networks ®... - Page 7 Rack Mounting (Continued) Rack Mounting Guidelines • Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature of 104 F.
-
Page 8: Wall Mounting
For wall mounting, we recommend using 4 drywall screws, minimum of 1-1/4” X 8 GA with anchors Shelf Mounting Caution: Do not stack more than 4 switches together. Do not stack any other equipment on top of the network switch to avoid possible interference or damage. © 2013 Araknis Networks ®... -
Page 9: Front Panel Layout
Front Panel Layout AN-100-SW-F-16 1 Gbps Link/Act 1. 1 Gbps LED Indicator Behavior Description No device is connected/Connected device supports 1 Gbps only Device is connected at 1 Gbps speed 2. Link/Act LED Indicator Behavior Description No device is connected Blinking Device is connected and traffic is running 3. -
Page 10: Installation
Router AppleTV Printer/ Desktop IP Camera IP Surveillance Scanner Phone Powering the AN-100-SW-F Switch ON 100-240VAC OFF 50-60Hz Electrical Requirements Input Voltage (AC Only) 100~240V AC, 50~60Hz AN-100-SW-F-8 does NOT have a master power switch © 2013 Araknis Networks ®... -
Page 11: Warranty
Warranty 2 Year Limited Warranty Araknis Networks products have a 2-Year Limited Warranty. This warranty includes parts ® and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled. - Page 12 © 2013 Araknis Networks ® 131021-1732...
